Specification

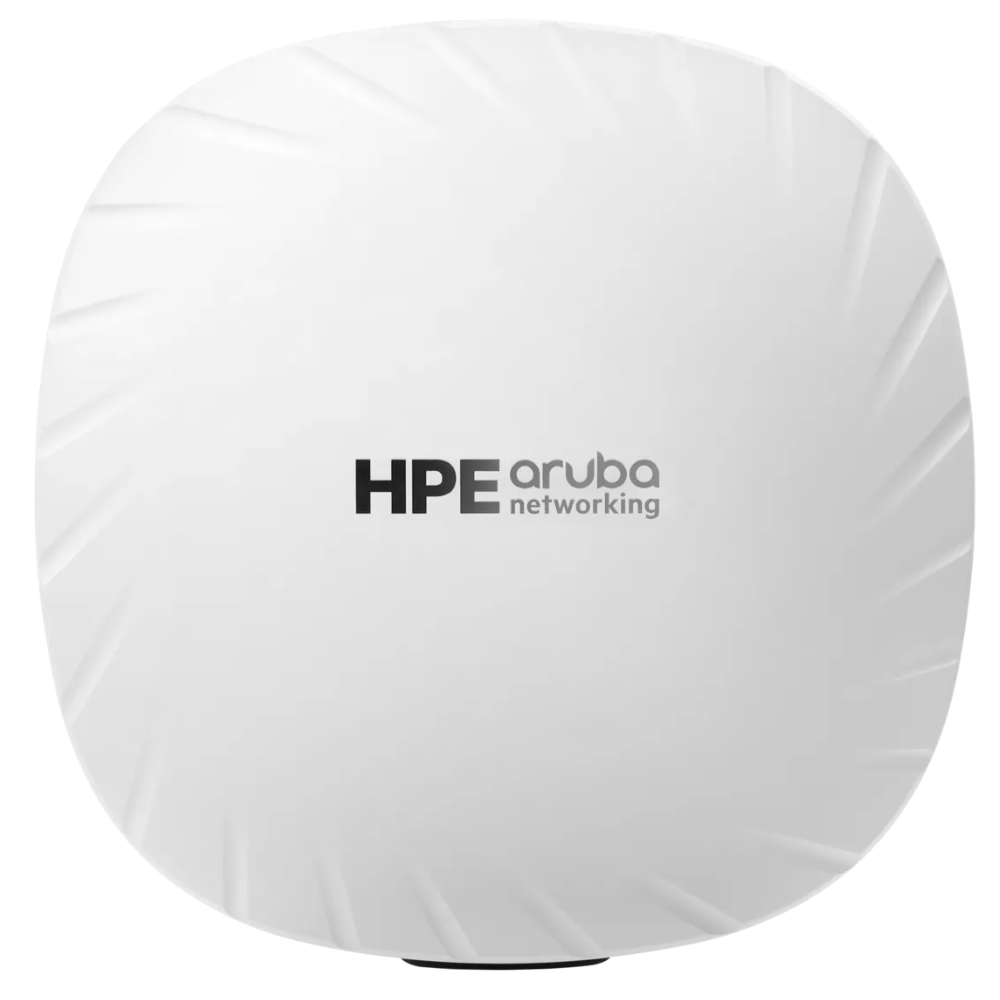

| Series | Aruba AP-535 |
| AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax
4×4 MIMO |
| 5GHz radio | Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS
HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
| 2.4GHz radio | Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with
individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously |
| Antenna | 4 integrated dual-band downtilt omnidirectional antennas for 4×4 MIMO with peak antenna
gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz. |
| Supported data rates (Mbps) | 802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40) 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160) |
| Dimensions | AP-535; unit, excluding mount bracket: 240mm (W) x 240mm (D) x 57mm (H) / 9.4” (W) x 9.4” (D) x 2.2” (H) |
| Certifications | ① UL2043 plenum rating
② Wi-Fi Alliance: ③ Wi-Fi CERTIFIED a, b, g, n, ac ④ Wi-Fi CERTIFIED 6 (ax) ⑤ WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open ( OWE) ⑥ WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband ⑦ Passpoint (release 2) ⑧ Bluetooth SIG |
