Technical Specifications
| Category | Specification |
|---|---|

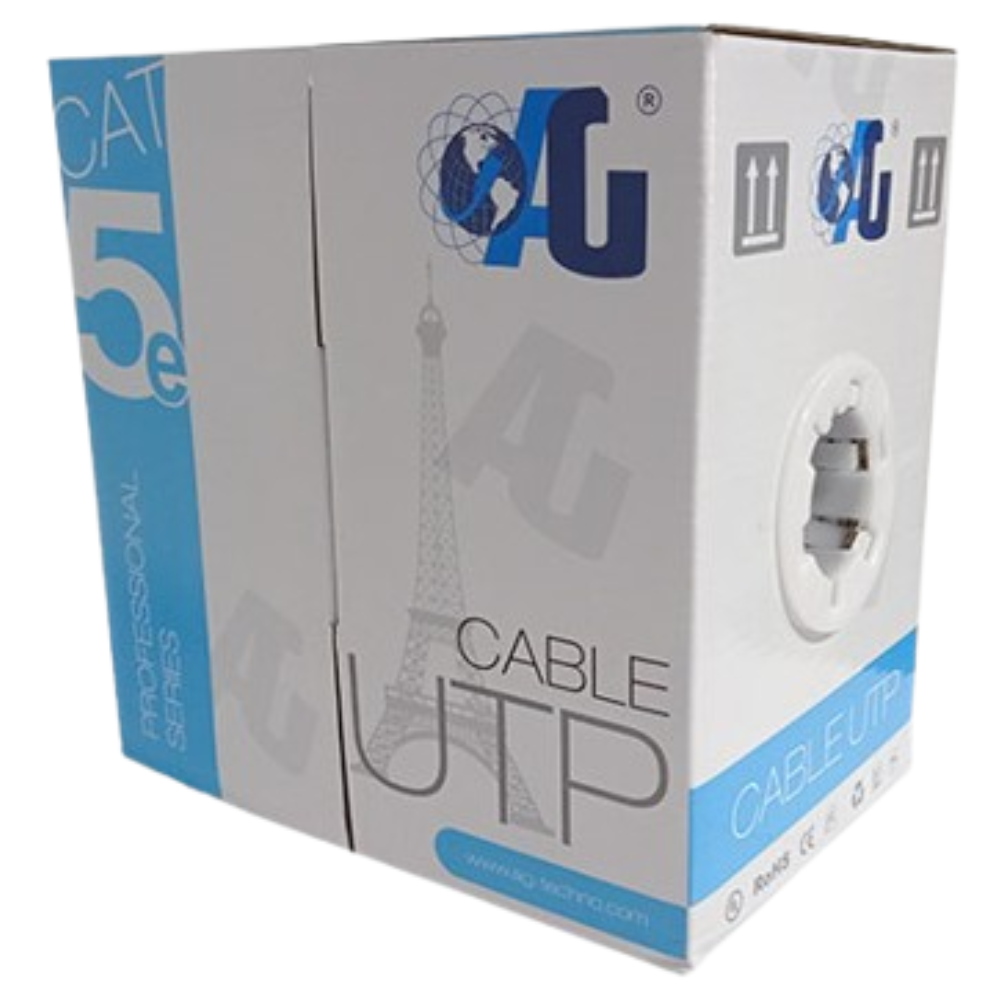

| Product Number | 108-51001 |
| Product Type | Unshielded Twisted Pair (UTP) |
| Category / Class | Cat.5e |
| Conductor | Solid Bare Copper (0.490mm) |
| Number of Pairs | 4 Pairs (4P) |
| Insulation | HDPE |
| Jacket Material | PVC (RoHS Compliant, CM Rated) |
| Jacket Color | Gray |
| Standard Length | 305 Meters / Box (Wooden Tray & Carton) |
| Operating Temperature | -20°C to +60°C |
| Installation Temperature | 0°C to +50°C |
Electrical Specifications:
-
Nominal Impedance: 100Ω ± 15 (1–100 MHz)
-
Max. DC Loop Resistance: 9.5 Ω/100m
-
Max. Delay Skew: ≤45 ns/100m
-
Max. Frequency: 100 MHz
Physical Specifications:
-
Cable Diameter: 5.0mm ± 0.4mm
-
Minimum Bending Radius (Cold): 8 x Cable Diameter
-
Jacket Tensile Strength: ≥13.5 Mpa
-
Jacket Elongation: ≥150%
