Dintek (Taiwan) Cat 5E UTP 24AWG Full Copper Blue Patch Cord 0.5M 1M 2M 3M 5M 10M price in srilanka

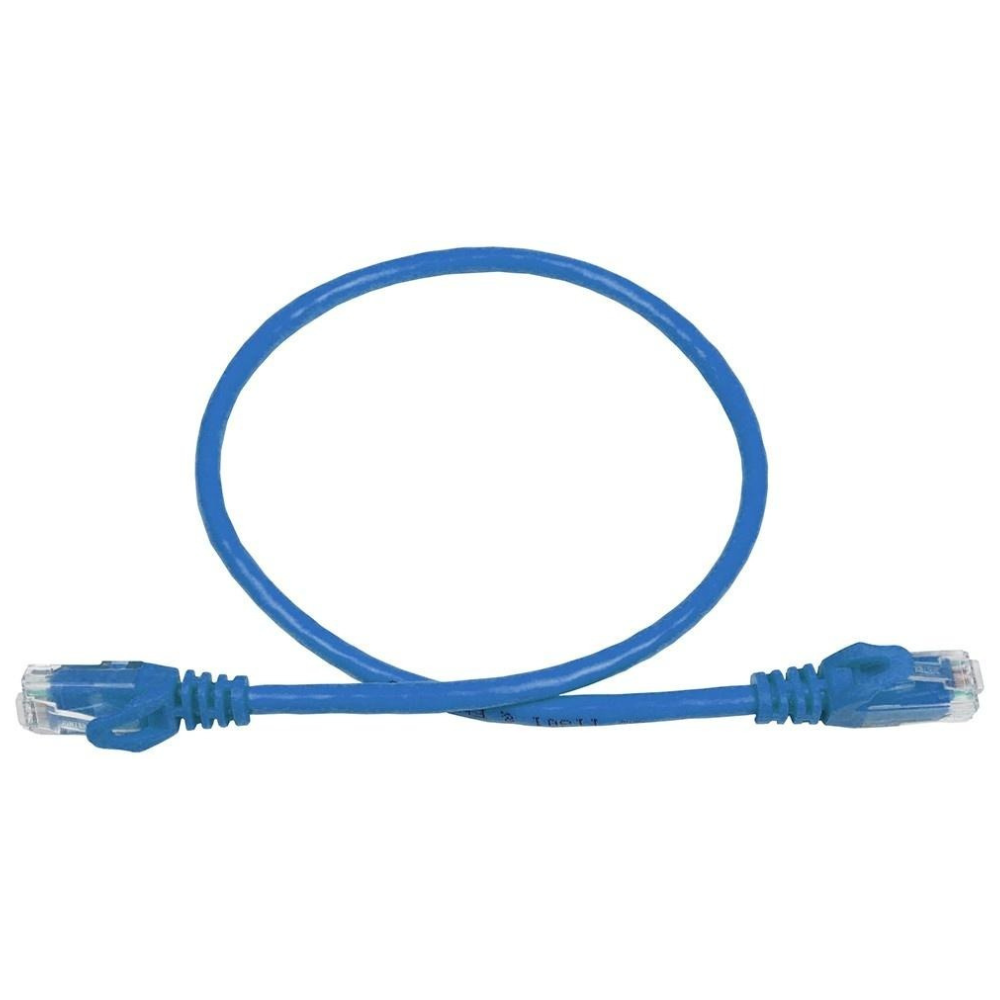

Dintek (Taiwan) Cat 5E UTP 24AWG Full Copper Blue Patch Cord

  • Durable Design: Molded anti-snag boots protect RJ45 plugs from bending and prevent cable kinking.

  • High Flexibility: 24AWG stranded copper conductors ensure easy handling and installation.

  • Color-Coded Management: Brilliant blue jacket simplifies cable identification and organization, compliant with TIA-606 standards.

  • Certified Performance: Fully tested to meet ANSI/TIA-568-2.D Cat.5e channel requirements.

  • Broad Compatibility: Supports 10/100/1000 Mbps Ethernet, VoIP, video, and legacy network systems.

Bulk Orders only

PLEASE SELECT YOUR LENGTH

Price range: රු 2,000.00 through රු 5,500.00

Technical Specifications:

Category Specification
Cable Type U/UTP (Unshielded Twisted Pair)
Category 5e
Jacket Material PVC
Jacket Color Blue
Conductor 24 AWG stranded annealed copper
Insulation HDPE/FRPE
Outer Diameter 5.50 ± 0.2 mm
Flame Rating CM (Communications Multipurpose)
RJ45 Plug Polycarbonate housing, 50µ” gold-plated nickel contacts
Pin Configuration T568B
Impedance 93.80 ± 15 Ω
Max DCR 14.8 Ω/100m at 20°C
Standards Met ANSI/TIA-568-2.D, ISO/IEC 11801, EN 50173, UL/ETL verified

Available Blue Patch Cord Lengths & Part Numbers:

Part Number Length Configuration Color
1201-03511 0.5m T568B Blue
1201-03341 1.0m T568B Blue
1201-03350 2.0m T568B Blue
1201-03343 3.0m T568B Blue
1201-03359 5.0m T568B Blue
1201-03365 10.0m T568B Blue

Applications:

  • Voice / ISDN

  • 10Base-T, Fast Ethernet, Gigabit Ethernet (10/100/1000 Mbps)

  • Token Ring, 100VG-AnyLAN, ATM

  • 550 MHz broadband video

  • Structured cabling for offices, data centers, and home networks

Standards Compliance:

  • UL / ETL Verified

  • ANSI/TIA-568-2.D

  • ISO/IEC 11801

  • CENELEC EN 50173

Weight N/A
Length

0.5M, 10M, 1M, 2M, 3M, 5M
