Technical Specifications:
| Category | Specification |
|---|---|
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Category | 5e |
| Jacket Material | PVC |
| Jacket Color | Yellow |
| Conductor | 24 AWG stranded annealed copper |
| Insulation | HDPE/FRPE |
| Outer Diameter | 5.50 ± 0.2 mm |
| Flame Rating | CM (Communications Multipurpose) |
| RJ45 Plug | Polycarbonate housing, 50µ” gold-plated nickel contacts |
| Pin Configuration | T568B |
| Impedance | 93.80 ± 15 Ω |
| Max DCR | 14.8 Ω/100m at 20°C |
| Standards Met | ANSI/TIA-568-2.D, ISO/IEC 11801, EN 50173, UL/ETL verified |

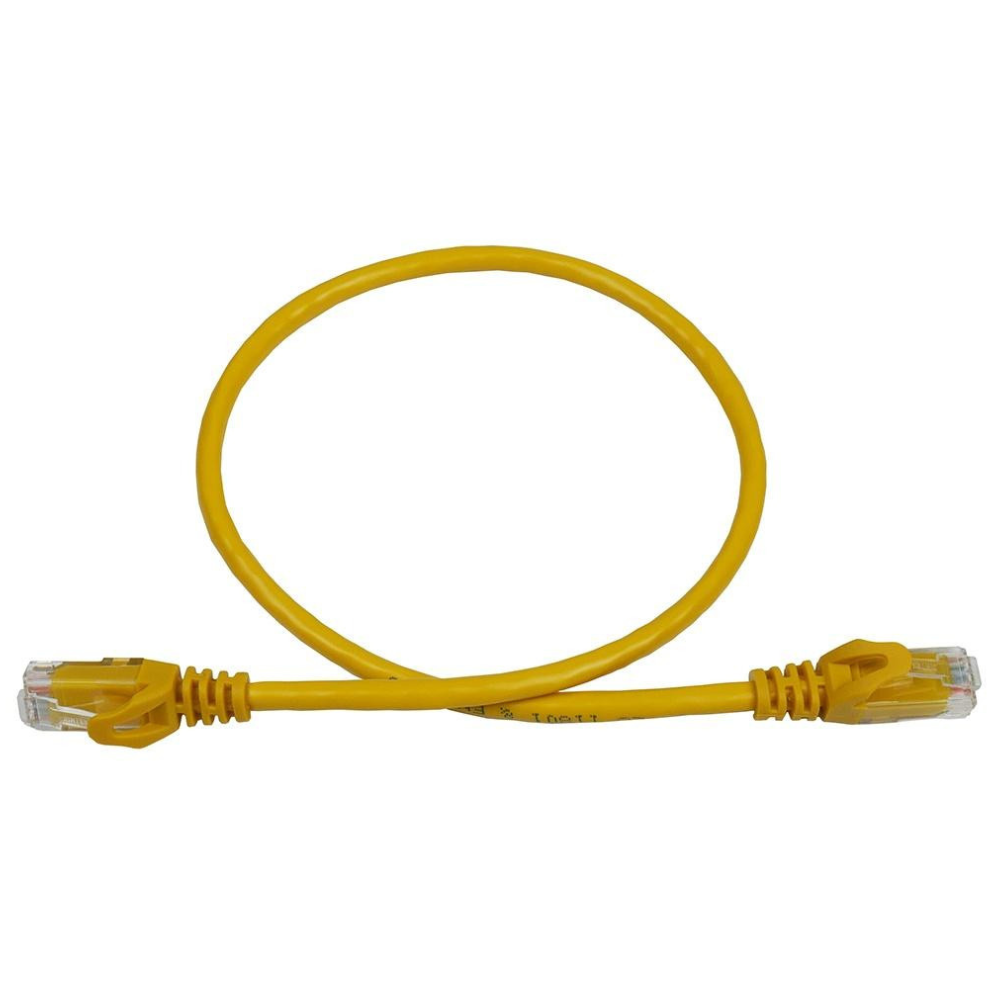

Available Yellow Patch Cord Lengths & Part Numbers:
| Part Number | Length | Configuration | Color |
|---|---|---|---|
| 1201-03512 | 0.5m | T568B | Yellow |
| 1201-03345 | 1.0m | T568B | Yellow |
| 1201-03351 | 2.0m | T568B | Yellow |
| 1201-03355 | 3.0m | T568B | Yellow |
Applications:
-
Voice / ISDN
-
10Base-T, Fast Ethernet, Gigabit Ethernet (10/100/1000 Mbps)
-
Token Ring, 100VG-AnyLAN, ATM
-
550 MHz broadband video
-
Ideal for structured cabling in offices, data centers, and home networks
Standards Compliance:
-
UL / ETL Verified
-
ANSI/TIA-568-2.D
-
ISO/IEC 11801
-
CENELEC EN 50173
