Technical Specifications

General Information

• Part Number: 109-13312

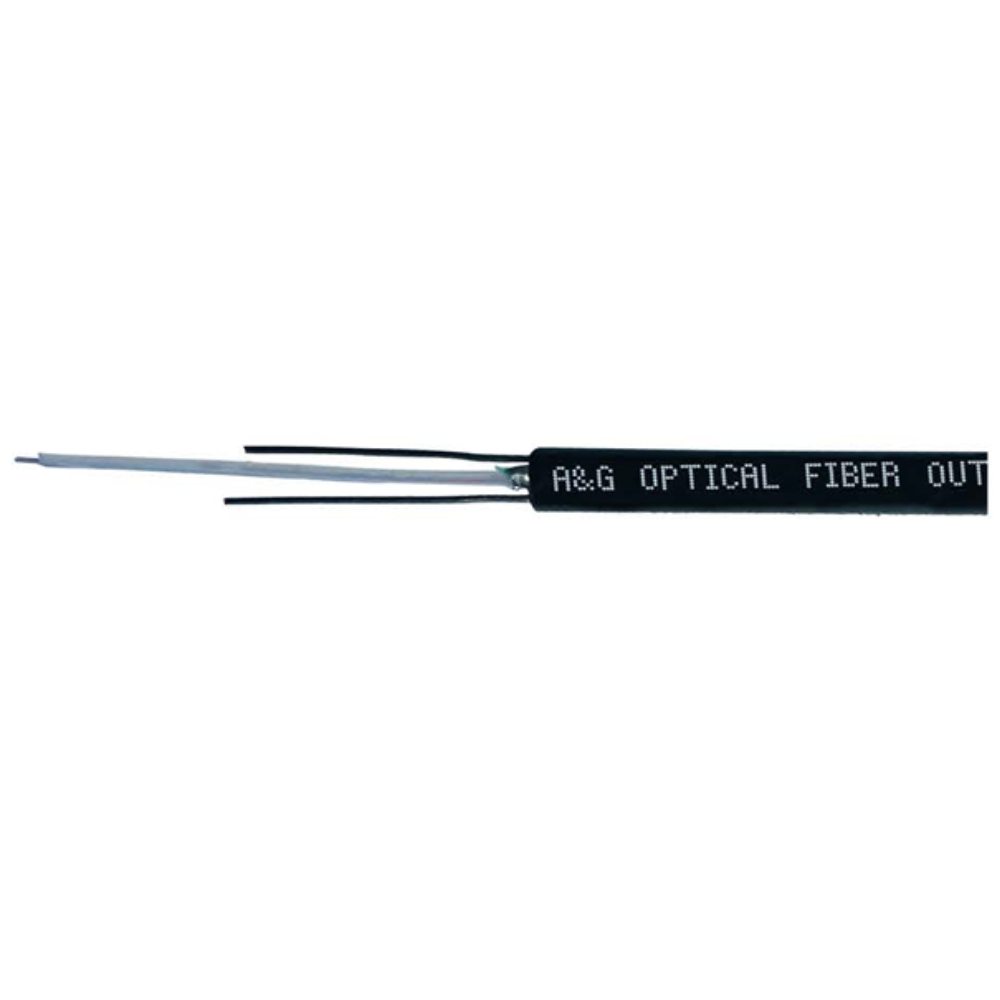

• Product Description: 12C Outdoor Armor Fiber Cable, Unitube with Steel Wire Support, 50/125 OM3

• Fiber Count: 12 Fibers

• Category: OM3 Multimode

• Core/Cladding Diameter: 50/125 µm

Construction

• Fiber Coating: Colored, 250µm ±15µm

• Loose Tube Material: PBT (Polybutylene Terephthalate)

• Strength Member: Steel Wire (1.2mm diameter)

• Outer Jacket Material: PE (Polyethylene)

• Outer Jacket Color: Black

• Outer Jacket Diameter: 9.0mm ±0.3mm

Optical Performance

• Bandwidth (@850nm): Min. 1500 MHz·km

• Bandwidth (@1300nm): Min. 500 MHz·km

• Attenuation (@850nm): ≤ 3.0 dB/km

• Attenuation (@1300nm): ≤ 1.0 dB/km

Mechanical & Environmental

• Tensile Load (Long Term): 800 N

• Tensile Load (Short Term): 1600 N

• Crush Resistance (Long Term): 300 N/10cm

• Crush Resistance (Short Term): 1000 N/10cm

• Minimum Bend Radius (Dynamic): 20x Cable Diameter

• Minimum Bend Radius (Static): 10x Cable Diameter

• Installation Temperature: -20°C to +60°C

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +70°C

Standards & Compliance

• IEC60332-3C

• Bellcore GR-20-CORE

• ISO/IEC 11801

• ANSI/TIA-568.2-D

• IEC 60794-1

• ITU-T G.657

Applications

• Inter-building Connectivity

• Outdoor Backbone Pathways

• Direct Burial & Aerial Installations

• 10Gbps Ethernet Networks

• Data Center Interconnects

• SAN (Storage Area Networks)

• Broadband Video Distribution
