Technical Specifications
| Category | Specification |
|---|---|
| Product Number | 108-61007 |
| Product Type | Unshielded Twisted Pair (UTP) |
| Category / Class | Cat.6 |
| Conductor | 24 AWG Solid Bare Copper (0.530mm) |
| Number of Pairs | 4 Pairs (4P) |
| Insulation | HDPE |
| Jacket Material | PVC (RoHS Compliant, CM Rated) |
| Jacket Color | Gray |

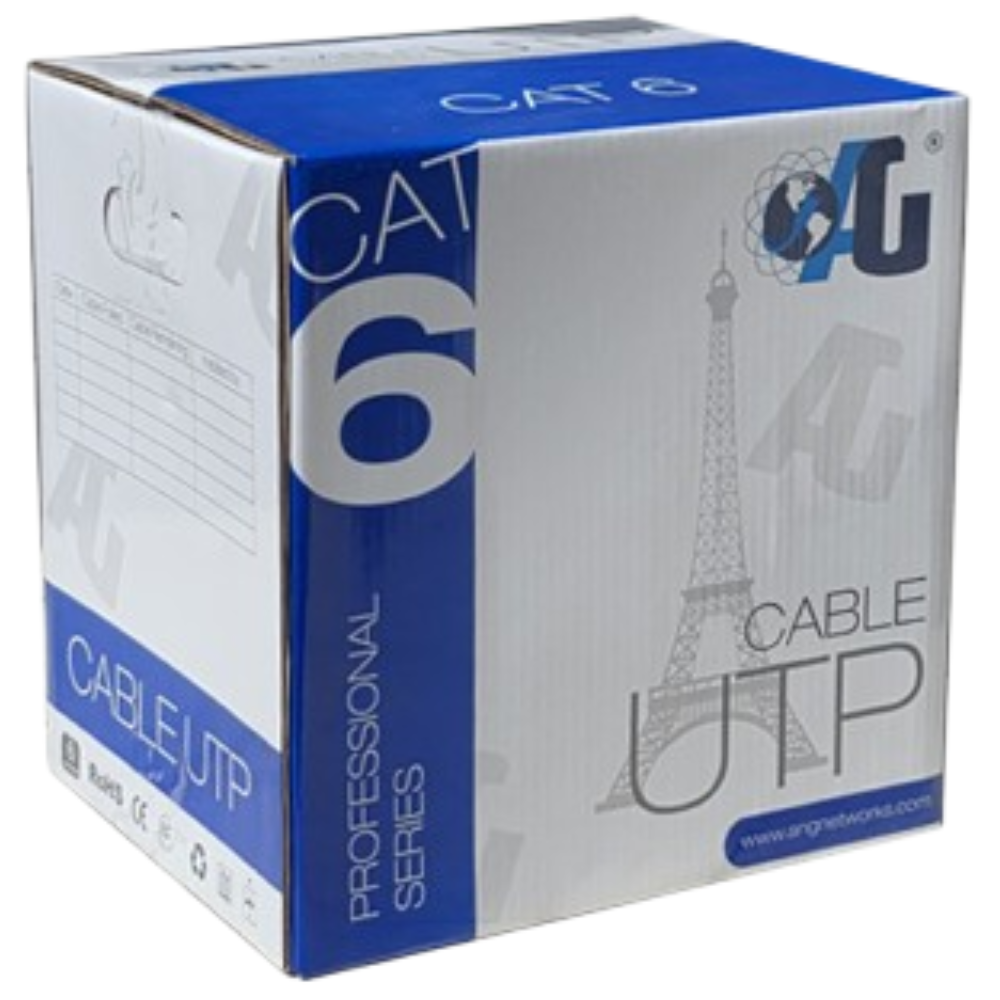

| Standard Length | 305 Meters (Wooden Tray & Carton) |
| Cable Diameter | 5.8mm ± 0.4mm |
| Operating Temperature | -20°C to +60°C |
| Installation Temperature | 0°C to +50°C |
Electrical Specifications:
-
Nominal Impedance: 100Ω ± 15%
-
Max. DC Loop Resistance: 9.38 Ω/100m
-
Max. Delay Skew: ≤45 ns/100m
-
Max. Frequency: 250 MHz
Physical Specifications:
-
Jacket Tensile Strength: ≥13.5 Mpa
-
Jacket Elongation: ≥150%
-
Cold Bend Test: No cracks at -20°C (8x cable diameter)
