Technical Specifications

General Information

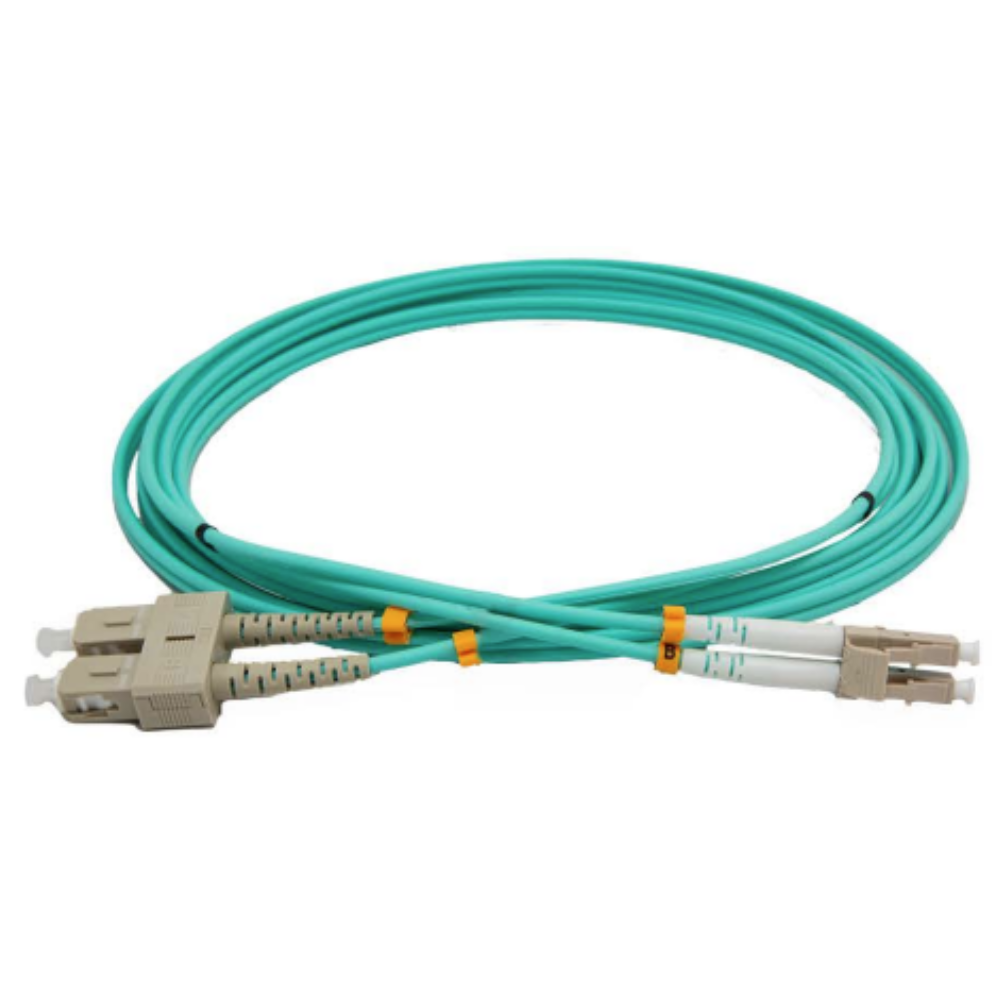

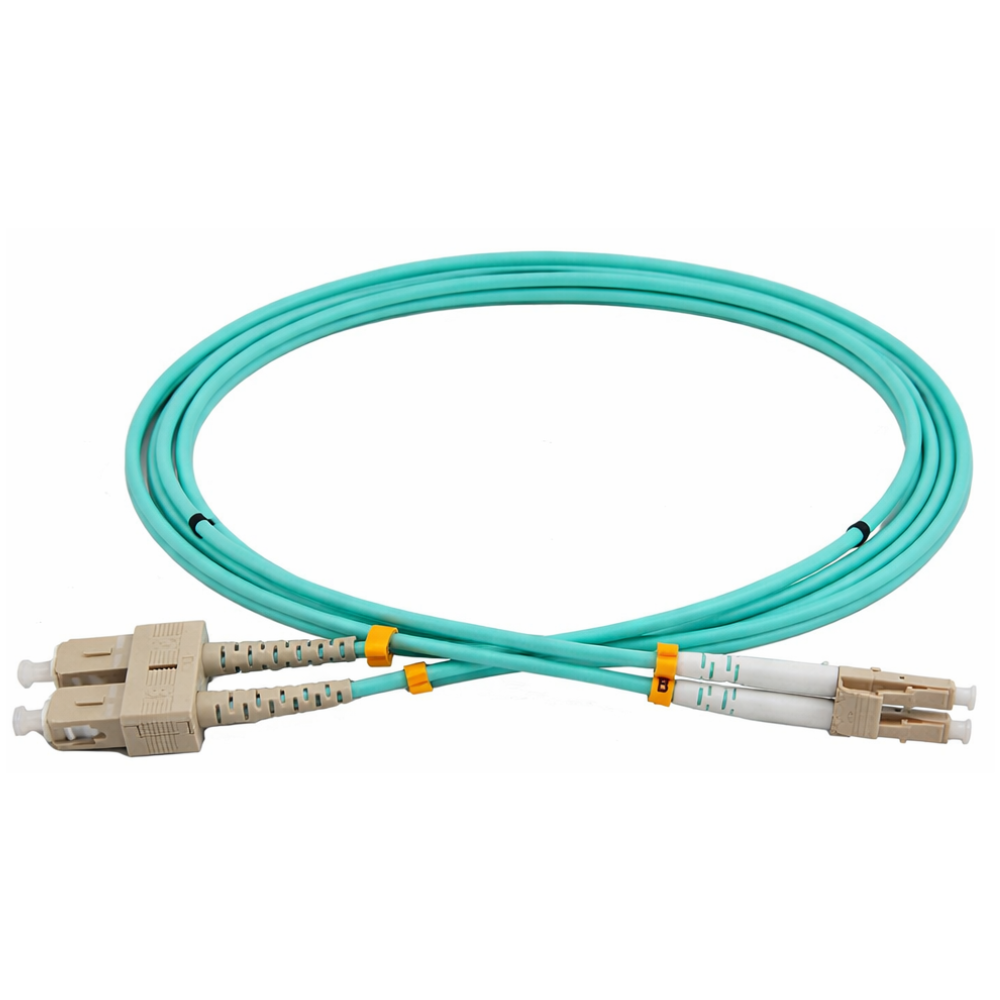

• Product Series: SC-LC Duplex Fiber Optical Patch Cord OM3

• Available Part Numbers & Lengths:

  • 118-02131: 1 Meter

  • 118-02132: 2 Meters

  • 118-02133: 3 Meters

  • 118-02135: 5 Meters

  • 118-02130: 10 Meters

• Connector Type: SC to LC Duplex

• Polish Type: PC

• Connector Color: Gray

• Fiber Type: OM3 Multimode

• Core/Cladding: 50/125 µm

• Cable Jacket Color: Aqua

Construction Details

• Sheath Material: LSZH (Low Smoke Zero Halogen)

• Sheath Thickness: 2.00 mm

• Plug Material: UL94V-0 Compliant & RoHS Certified Plastic

Optical Performance

• Insertion Loss (Typical): ≤ 0.20 dB

• Insertion Loss (Maximum): ≤ 0.30 dB

• Return Loss: ≤ 35 dB

• Repeatability: ≤ 0.10 dB

• Changeability: ≤ 0.20 dB

Mechanical & Environmental

• Durability: > 1000 mating cycles

• Operating Temperature: -40°C to +75°C

• Storage Temperature: -40°C to +70°C

Standards & Compliance

• ISO/IEC 11801

• CENELEC EN 50173-1

• TIA-568C.0

• Telecordia GR-326-CORE

• RoHS, UL, CE, ISO 9001

• IEC 60332-3 (Flame Retardant)

Applications

• Data Center Cross-Connections

• Network Equipment Interfacing

• Telecommunication Systems

• Server and Storage Connectivity

• Media Converters

• Network Switches and Routers

• General Fiber Optic Patching
