A&G (France) SC-SC Duplex Fiber Optic Patch Cord 50/125 MM OM3

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

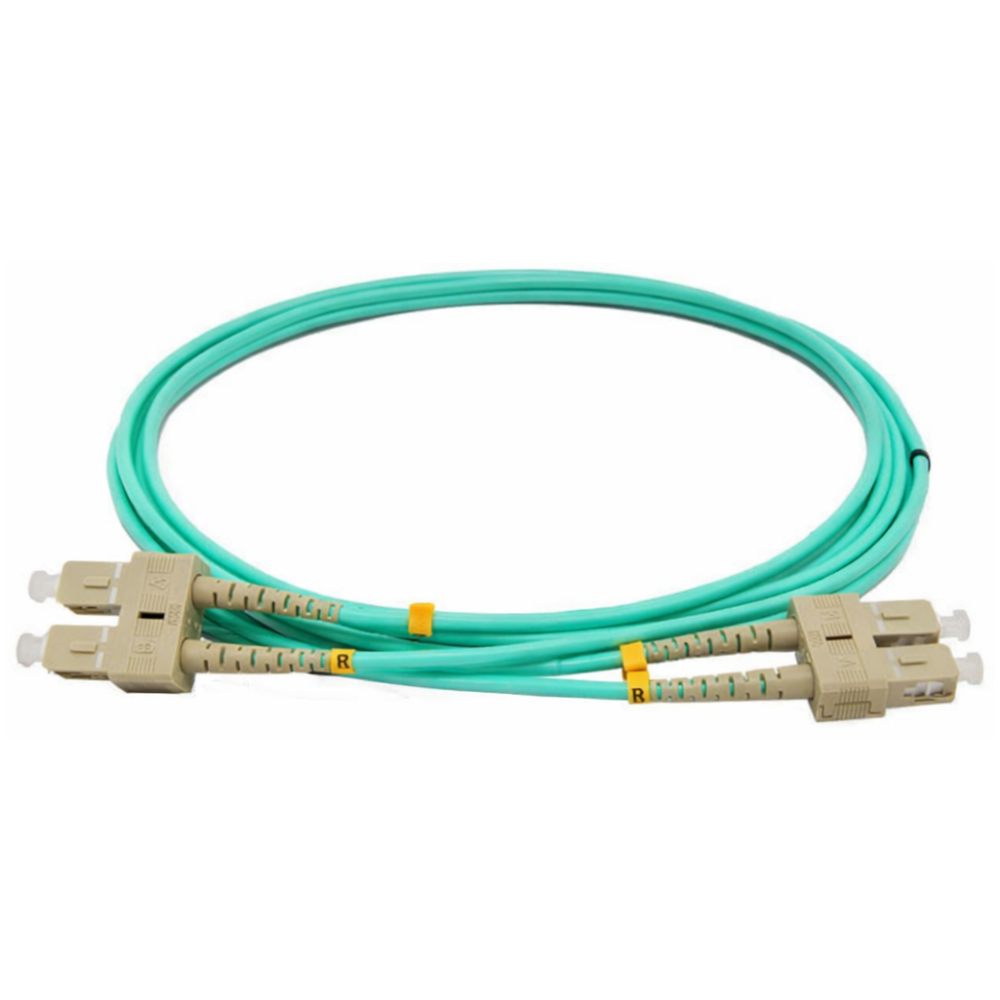

A&G (France) SC-SC Duplex Fiber Optic Patch Cord 50/125 MM OM3 1M 2M 3M 5M 10M price in srilanka

A&G (France) SC-SC Duplex Fiber Optic Patch Cord 50/125 MM OM3

  • High-Performance OM3 Connectivity: Ideal for 10 Gigabit Ethernet networks in data centers, telecom, and server applications, providing reliable, high-speed data transmission.

  • Precision SC Duplex Connectors: Feature a key-oriented coupling mechanism for secure, repeatable connections and easy installation and removal.

  • Superior Low-Loss Performance: Guarantees excellent signal integrity with a maximum insertion loss of ≤0.30 dB and a high return loss of ≤35 dB.

  • Durable & Safe Construction: LSZH (Low Smoke Zero Halogen) sheath is flame-retardant (IEC 60332-3 compliant) and emits minimal toxic fumes, enhancing safety in enclosed spaces.

  • Robust & Long-Lasting: Connectors are built to withstand more than 1000 mating cycles, ensuring long-term reliability and value.

  • Wide Operating Temperature Range: Functions flawlessly in harsh environments from -40°C to +75°C, making it suitable for various industrial and data center applications.

Bulk Orders only

PLEASE SELECT YOUR LENGTH



Price range: රු 3,500.00 through රු 10,500.00

Check out our Exclusive Buying Guide

Technical Specifications

General Information

  • Part Numbers & Descriptions:

    • 118-01131: SC-SC Duplex Fiber Optic Patch Cord 1M 50/125 OM3

    • 118-01132: SC-SC Duplex Fiber Optic Patch Cord 2M 50/125 OM3

    • 118-01133: SC-SC Duplex Fiber Optic Patch Cord 3M 50/125 OM3
    • 118-01135: SC-SC Duplex Fiber Optic Patch Cord 5M 50/125 OM3
    • 118-01130 : SC-SC Duplex Fiber Optic Patch Cord 10M 50/125 OM3

  • Available Lengths: 1 Meter, 2 Meters, 3 Meters, 5 Meters, 10 Meters

  • Connector Type: SC-SC Duplex

  • Polish Type: PC

  • Connector Color: Gray

  • Fiber Type: OM3 Multimode

  • Core/Cladding: 50/125 µm

  • Cable Jacket Color: Aqua

Construction Details

  • Sheath Material: LSZH (Low Smoke Zero Halogen)

  • Sheath Thickness: 2.00 mm

  • Plug Material: UL94V-0 Compliant & RoHS Certified Plastic

Optical Performance

  • Insertion Loss (Typical): ≤ 0.20 dB

  • Insertion Loss (Maximum): ≤ 0.30 dB

  • Return Loss: ≤ 35 dB

  • Repeatability: ≤ 0.10 dB

  • Changeability: ≤ 0.20 dB

Mechanical & Environmental

  • Durability: > 1000 mating cycles

  • Operating Temperature: -40°C to +75°C

  • Storage Temperature: -40°C to +70°C

Standards & Compliance

  • ISO/IEC 11801

  • CENELEC EN 50173-1

  • TIA-568C.0

  • Telecordia GR-326-CORE

  • RoHS, UL, CE, ISO 9001

  • IEC 60332-3 (Flame Retardant)

Applications

  • Data Center Rack Connections

  • Telecommunication Equipment Links

  • Server and Storage Area Network (SAN) Connectivity

  • Network Switch Interconnections

  • General Fiber Optic Patching

  • Short-distance interconnects within racks and between adjacent equipment

Weight 0.1 kg
Length

10M, 1M, 2M, 3M, 5M
