Specifications
| Video Input / Interfaces | 4 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Input / Max. Distance | 3M at 1920 x 1080 @ 60Hz (4:4:4) |
| Video Output / Interfaces | 2 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 15M at 1920 x 1080 @ 60Hz (4:4:4) |
| Video / Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Video / Max. Pixel Clock | 225 MHz |
| Video / Compliance | HDMI (3D, Audio Return Channel, Deep Color) HDCP Compatible Consumer Electronics Control (CEC) |
| Video / Max. Resolution | Up to 1080p |
| Audio / Input | 4 x HDMI Type A Female (Black) |
| Audio / Output | Analog: 2 x RCA (Red / White)Digital: 1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange) |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black)Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Control / IR | 1 x Mini Stereo Jack Female (Black) |
| Control / EDID Settings | EDID Mode: Default / Port1 / Auto |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5.3V:5.74W:27BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 2.17 kg ( 4.78 lb ) |
| Physical Properties / Dimensions (L x W x H) | 43.72 x 15.86 x 4.40 cm (17.21 x 6.24 x 1.73 in.) |
| Physical Properties / Carton Lot | 3 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |

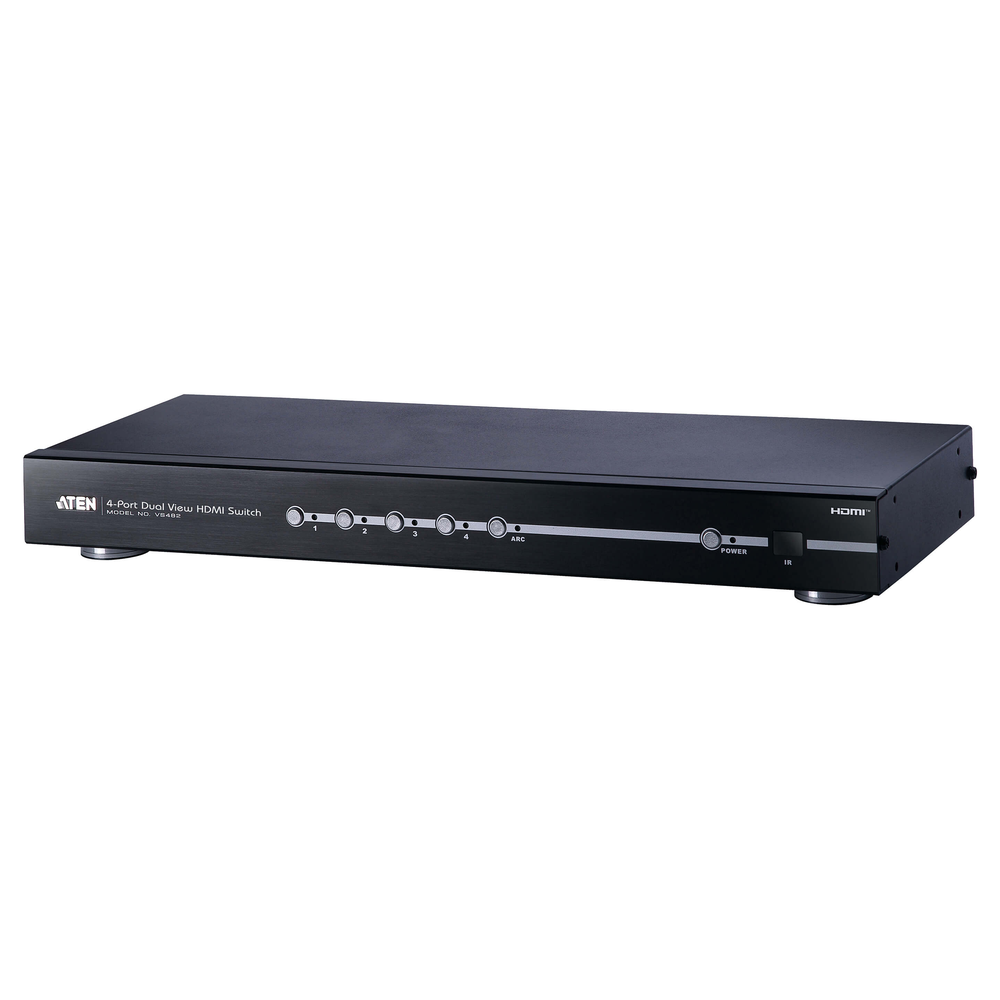

| Included accessories | 1x VS482 4-Port Dual View HDMI Switch; 1x IR Remote Control Unit; 1x Power Adapter; 1x User Instructions; 1x Mounting Kit |
Key Features
- Connect four HDMI sources and two display outputs.
- Configure the system through an on-screen display.
- Extract audio for analogue, optical or coaxial equipment.
- Use EDID modes to manage display compatibility.
- Integrate switching through RS-232 or the included IR remote.
Product Information
Select one of four HDMI programmes and send it to a dual-display AV setup. Audio extraction and on-screen settings help integrate the switch with presentation displays and separate audio equipment.
The two outputs share the selected programme; this is not a 4-by-2 independent matrix. ARC and audio features require compatible equipment and the correct port connections. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VS482 4-Port Dual View HDMI Switch; 1x IR Remote Control Unit; 1x Power Adapter; 1x User Instructions; 1x Mounting Kit.
