Specifications
| Video Input / Interfaces | 4 x HDB-15 Female (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 1 x HDB-15 Female (Blue) |
| Video Output / Impedance | 75 Ω |
| Video Output / Max. Distance | 10 m |
| Video / Max. Bandwidth | 150 MHz |
| Video / Max. Resolution | Up to 1920 x 1440 |
| Video / Max. Distance | Up to 10 m |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC9V:0.82W:4BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Plastic / Metal |
| Physical Properties / Weight | 0.18 kg ( 0.4 lb ) |
| Physical Properties / Dimensions (L x W x H) | 12.00 x 6.52 x 4.40 cm (4.72 x 2.57 x 1.73 in.) |
| Physical Properties / Carton Lot | 20 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x 4-Port Video Switch; 1x Power Adapter |
Key Features
- Select between 4 VGA computers on one display.
- Change the displayed source with the pushbutton selector.
- Use electronic switching without installing software.
- Support detailed analogue pictures up to 1920 × 1440.
- Work with documented DDC-compatible displays.
Product Information

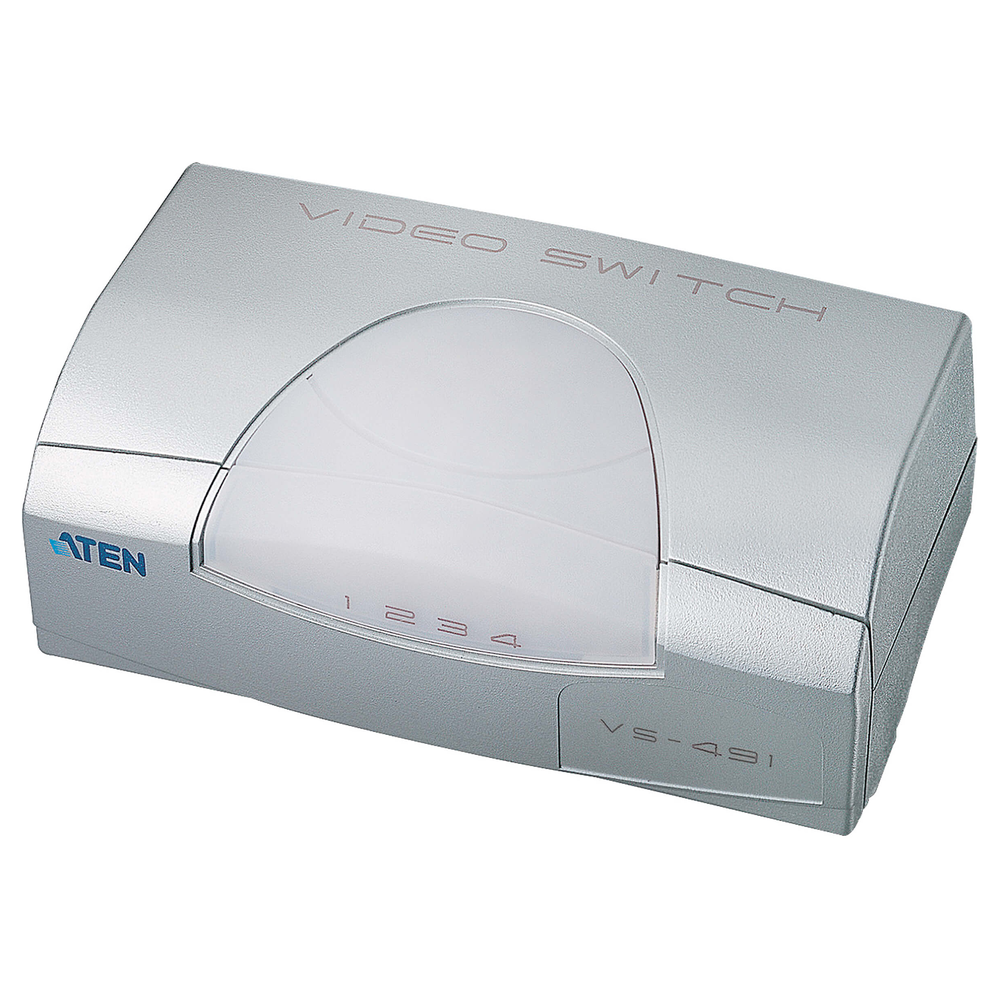

Connect several VGA computers to one monitor or projector and select the required picture at the switch. It provides straightforward display sharing for a desk, demonstration station or presentation setup.
This unit switches VGA video. It does not replace a keyboard-and-mouse KVM switch, and separate audio switching is not documented. Use the supplied power adapter and suitable VGA cables. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x 4-Port Video Switch; 1x Power Adapter.
