Specifications
| Video Input / Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 1 x HDMI Type A Female (Black) – Local Output 8 x RJ-45 Female |
| Video Output / Impedance | 100 Ω |
| Video / Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Video / Max. Pixel Clock | 225 MHz |
| Video / Compliance | HDMI (3D, Deep Color) HDCP CompatibleConsumer Electronics Control (CEC) |
| Video / Max. Resolution | Up to 1080p (Depends on connected receiver) |
| Video / Max. Distance | Up to 60 m (Depends on connected receiver) |
| Audio / Input | 1 x HDMI Type A Female (Black) |
| Audio / Output | 1 x HDMI Type A Female (Black) |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Control / EDID Settings | EDID Mode: Default / Port 1 / Learn |
| Connectors / Power | 1 x DC Jack (Black) |
| Connectors / Power Consumption | DC5.3V:7.77W:36BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0-50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 2.15 kg ( 4.74 lb ) |
| Physical Properties / Dimensions (L x W x H) | 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.) |
| Physical Properties / Carton Lot | 3 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VS1808T 8-Port HDMI Over Cat 5 Splitter; 1x Power Adapter; 1x Foot Pad Set (4 pcs); 1x Mounting Kit; 1x User Instructions |
Key Features
- Distribute one HDMI programme to 8 remote destinations.
- Keep a local HDMI output available for monitoring.
- Carry compatible multichannel HDMI audio with the picture.
- Integrate source distribution with RS-232 control.
- Install the metal chassis in a rack using the included mounting kit.
Product Information

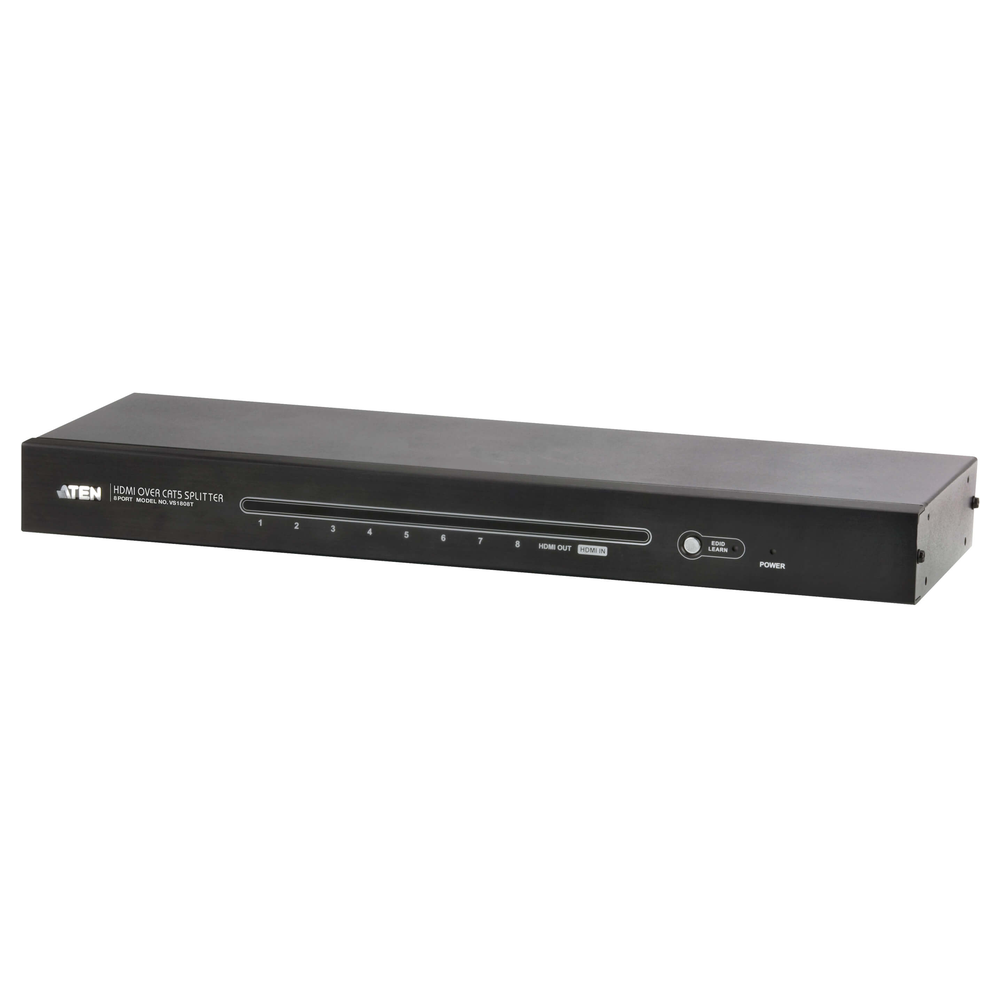

Distribute HDMI content from one source to multiple remote displays using Cat 5e cabling and compatible receivers. A local HDMI output lets the source location retain monitoring while remote screens show the same programme.
Compatible remote receivers are required and are not included in the splitter package. Follow the documented Cat 5e cabling topology and distance limits; these ports are AV extension links, not Ethernet-network switch ports. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VS1808T 8-Port HDMI Over Cat 5 Splitter; 1x Power Adapter; 1x Foot Pad Set (4 pcs); 1x Mounting Kit; 1x User Instructions.
