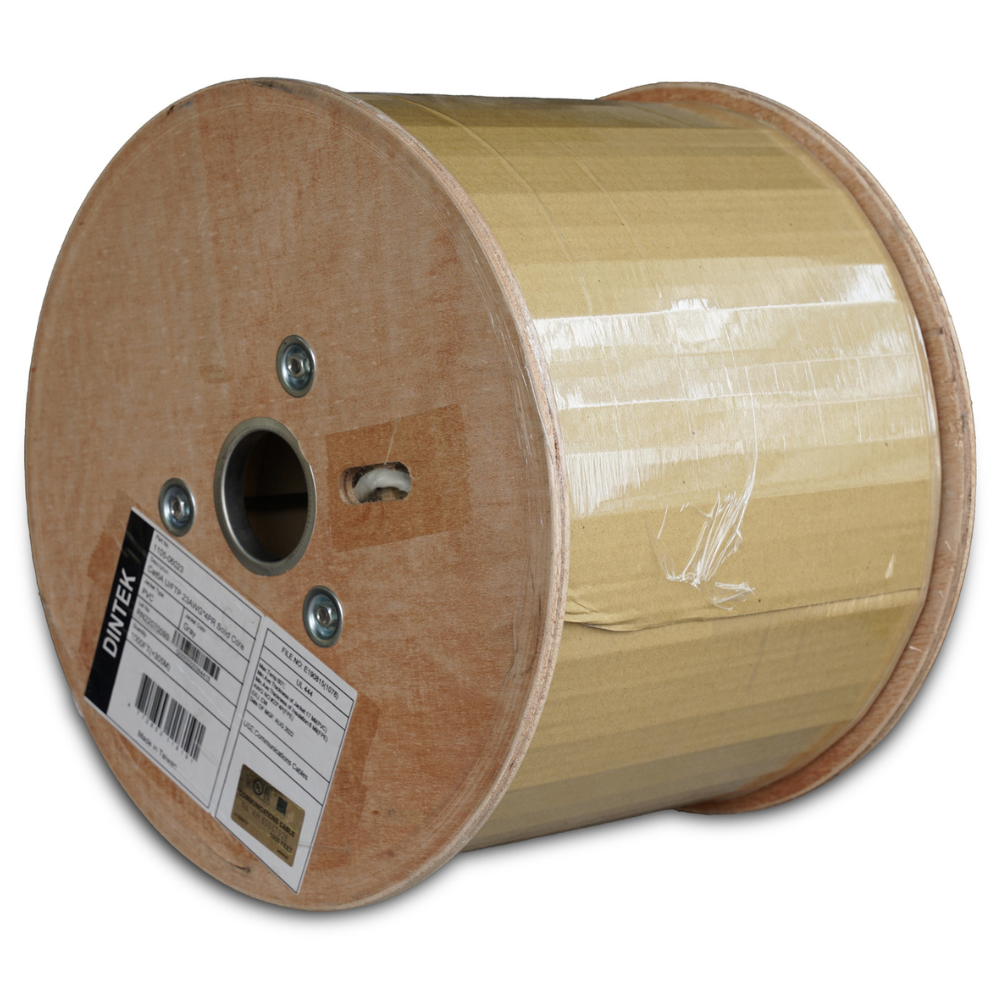

Dintek (Taiwan) Cat 6A U/UTP 23AWG Gray Full Copper 305M Drum – 1101-06013

Dintek (Taiwan) Cat 6A U/UTP 23AWG Gray Full Copper 305M Drum – 1101-06013

  • Guaranteed Cat.6A Performance: Exceeds ANSI/TIA and ISO/IEC Cat.6A / Class EA specifications, offering a future-proof cabling solution for the most demanding high-speed network environments.

  • Full 100m 10-Gigabit Support: Designed to support 10 Gigabit Ethernet (10GBASE-T) transmission at frequencies up to 500 MHz over the full 100-meter channel length, ensuring reliable high-speed data transfer across entire installations.

  • Innovative ANEXT Suppression: Features a continuous, dual-sided mylar-coated foil tape surrounding all four pairs. This unique design effectively minimizes Alien Crosstalk (ANEXT) in high-density installations while allowing for a more compact cable diameter compared to standard Cat.6A cables.

  • High-Power PoE Ready: Fully capable of handling the latest high-power Power over Ethernet standards, including IEEE 802.3bt Level 3 & 4 (PoE++ & 4PPoE), ideal for powering advanced devices like high-performance access points and security systems.

රු 135,000.00

Check out our Exclusive Buying Guide

Technical Specifications

Category Specification
Product Number 1101-06013
Product Type Unshielded Twisted Pair (U/UTP) with Overall Foil Tape
Category / Class Cat.6A / Class EA
Conductor 23 AWG Solid Bare Copper
Number of Pairs 4 Pairs (4P)
Internal Construction Continuous mylar-coated foil tape around all pairs
Jacket Material PVC
Jacket Rating CM (Communications Riser)
Jacket Color Gray
Standard Length 305 Meters / Reel
Flame Rating Complies with EN 60332-1
Operating Temperature -20°C to +60°C

Electrical Specifications:

  • Max. Conductor DC Resistance: 9.38 Ω/100m at 20°C

  • Max Transmission Frequency: 500 MHz

  • Nominal Velocity of Propagation: 67%

Physical Specifications:

  • Cable Diameter: 7.05mm ± 0.5mm

  • Minimum Bending Radius: 4 x Cable Diameter

Weight 15 kg
