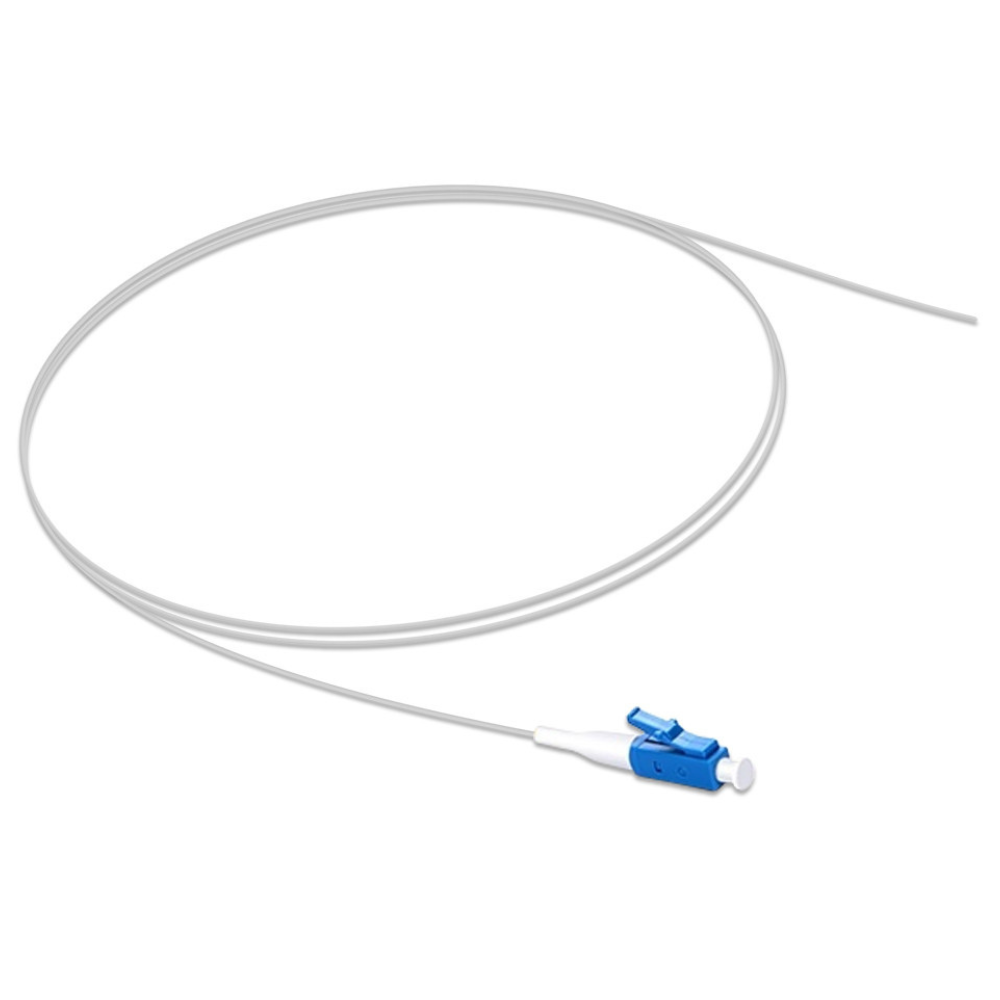

Dintek (Taiwan) LC Pigtail 1M 9/125 SM-2105-07002

Compact LC/UPC Connector: The small-form factor LC connector saves valuable space in high-density installations, while the machine-polished UPC finish ensures low insertion loss and excellent return loss.
Factory Pre-Terminated & Tested: Guarantees reliable performance with 100% end-face inspection and full compliance with rigorous industry standards including GR-326-CORE.
High-Density Ready: Designed with a short buffer style connector boot for effortless cable management in congested patch panels and enclosures.
Easy to Install: Features a flexible, easy-to-strip 900um buffer that simplifies both fusion and mechanical splicing processes, reducing installation time and labor costs.

Bulk Orders only

රු 2,350.00

Category	Specification
Manufacturer Part Number	2105-07002
Product Name	OS2 Singlemode LC Fiber Pigtail – UPC
Fiber Type	Singlemode OS2
Connector Type	LC
Polish Type	UPC
Length	1 Meter
Buffer Diameter	900 µm
Jacket/Connector Color	Blue
Insertion Loss	≤ 0.30 dB
Return Loss	≥ 50 dB
Operating Temperature	-40°C to +85°C
Key Standards	Telcordia GR-326-CORE, ISO/IEC 11801, TIA-568, TIA-942, IEEE 802.3
Applications	Fusion Splicing, Mechanical Splicing, Temporary Cable Termination

Weight	0.1 kg
