Technical Specifications

General Information

• Part Number: 2104-15412

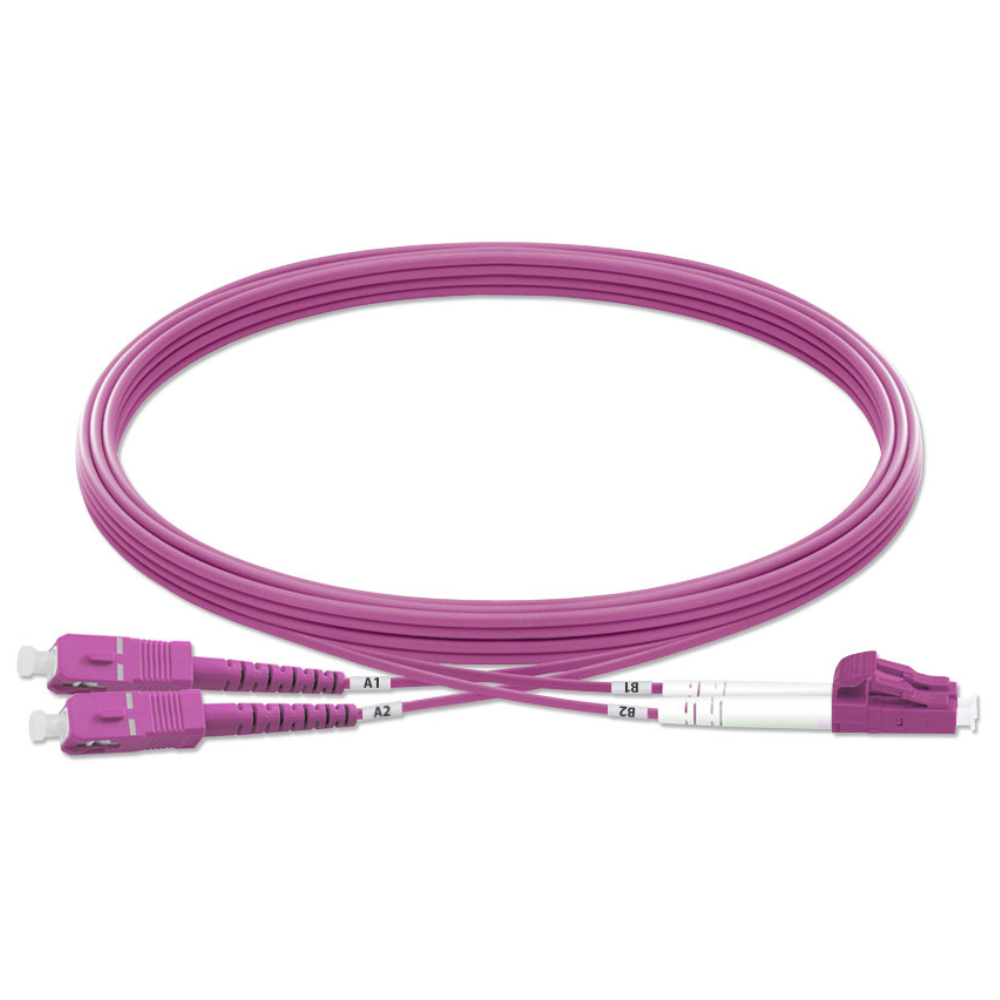

• Product Description: Light-LINKS™ LC/SC Duplex OM4 Patch Cord

• Length: 2 Meters

• Connector Type: LC to SC Duplex

• Polish Type: PC

• Fiber Type: OM4 Multimode

• Core/Cladding: 50/125 µm

• Jacket Color: Purple

• Jacket Size: 2.0 mm

• Jacket Type: LSZH (Low Smoke Zero Halogen)

Optical Performance

• Insertion Loss (Typical): ≤ 0.15 dB

• Insertion Loss (Maximum): ≤ 0.30 dB

• Return Loss: ≤ 35 dB

• 10G Network Support: Up to 550 meters @ 850nm

• 40G/100G Ready: Optimized for next-generation high-speed applications

Mechanical & Environmental

• Operating Temperature: -40°C to +85°C

• Flammability Rating: IEC 60332 Part 3

• Durability: Engineered for repeated mating cycles

Standards & Compliance

• ISO/IEC 11801

• CENELEC EN 50173-1 / EN 50173-5

• TIA-568 C.0 / TIA-942

• TIA 604-5

• IEC 61754-7

• IEEE 802.3 (10/40/100GbE)

• ROHS-6 Compliant

• GR-326-CORE Compliant

• IEC 60332-3 (Fire Retardant)

• IEC 60754-2 (Corrosion Resistant)

Applications

• Data Center Cross-Connections

• High-Performance 10G/40G/100G Networks

• Equipment Interfacing Between LC and SC Ports

• Storage Area Networks (SAN)

• Network Switch to Server Links

• Media Converter Connections

• Enterprise Network Infrastructure
