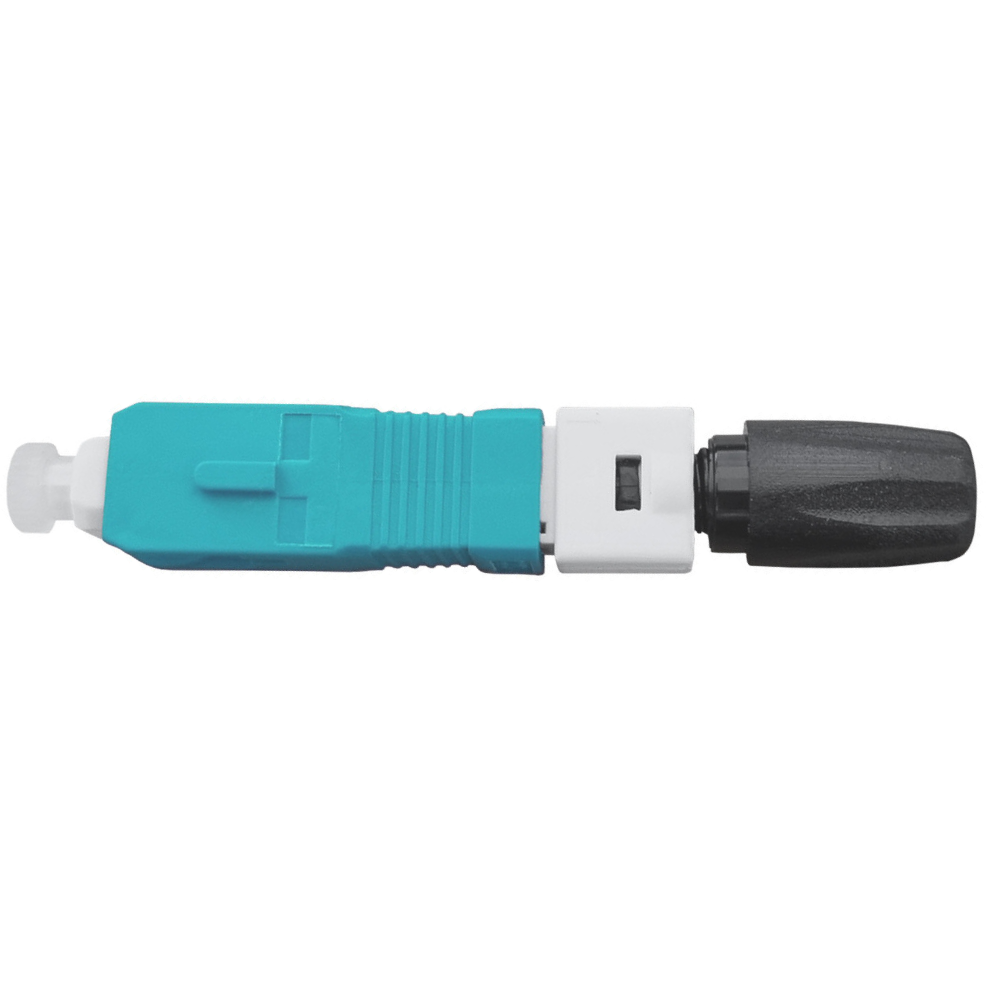

Dintek (Taiwan) SC Mechanical Connector MM OM3

Fast, Tool-Lite Termination: Enables quick field termination in about 30 seconds without the need for expensive fusion splicers, perfect for rapid deployments and repairs.
Superior Low-Loss Performance: Utilizes advanced V-groove alignment technology to achieve a typical insertion loss of only 0.1 dB, ensuring high-quality signal integrity.
Exceptional Versatility: Compatible with a wide range of cable sizes including 250μm, 900μm, 2.0mm, 3.0mm, and flat fiber cables, making it a one-stop solution for various installations.

Bulk Orders only

රු 4,500.00

Category	Specification
Manufacturer Part Number	2106-02013
Product Name	ezi-FIBER SC MM Quick Assembly Connector
Connector Type	SC
Fiber Mode / Type	Multimode OM2
Connector Color	Beige
Compatible Cable Sizes	250μm, 900μm, 2.0mm, 3.0mm, Flat Cable
Typical Insertion Loss	0.1 dB
Maximum Insertion Loss	0.3 dB
Typical Return Loss	-50 dB
Assembly Time	~30 seconds
Operating Temperature	-40°C to +70°C
Pull Strength (Typ.)	0.5 kgf (900μm) / 6 kgf (3.0mm) / 1 kgf (Flat Cable)
Key Standards	ISO/IEC 11801, TIA-568, TIA-942, IEEE 802.3 (10/40/100GbE)
Applications	FTTx, LAN, Telecommunications, CATV, Pigtail Connections

Weight	0.1 kg
