Technical Specifications

General Information

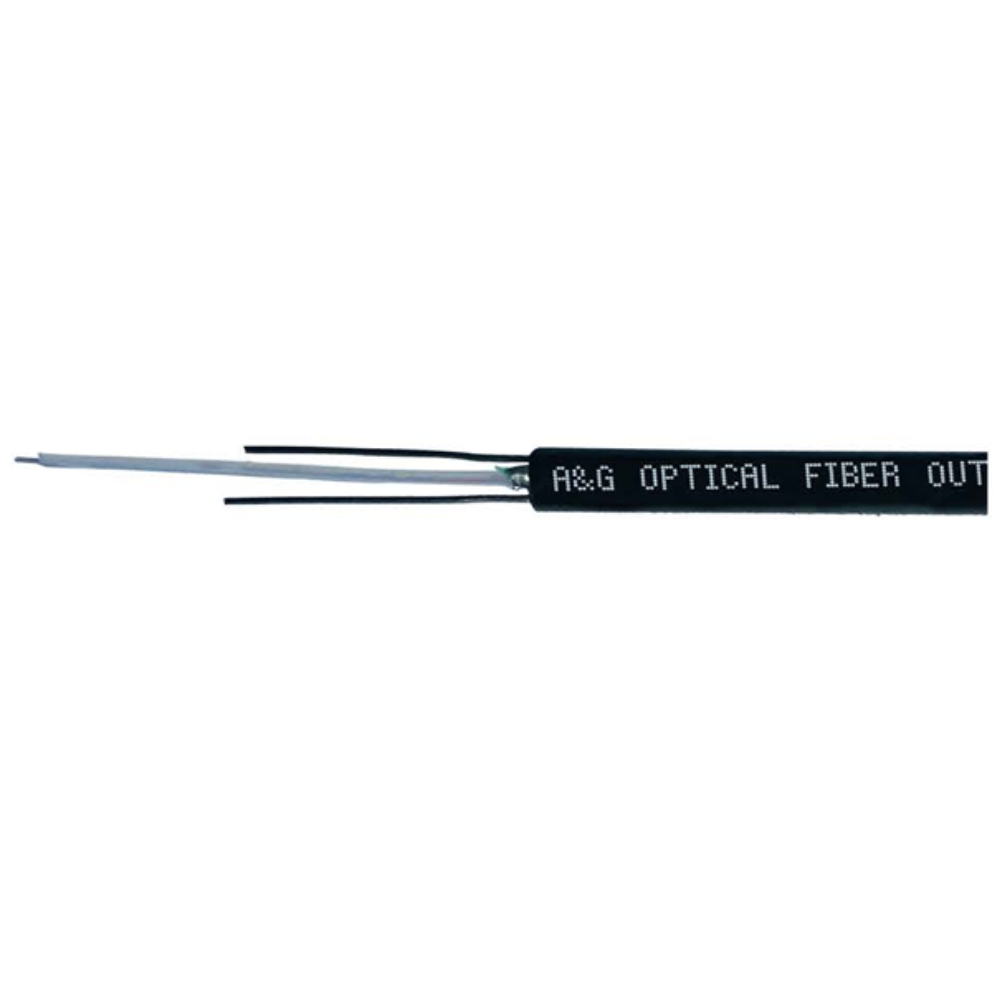

• Part Number: 109-23108

• Product Description: Outdoor Optical Fiber 8C Single Mode

• Fiber Count: 8 Fibers

• Category: Single-Mode (SM) / OS2

• Standard: ITU-T G.652D

Construction

• Fiber Coating: Colored, 250µm ±15µm

• Fiber Colors: Blue, Orange, Green, Brown, Grey, Natural, Red, Black

• Loose Tube Material: PBT

• Loose Tube Dimension: 2.0mm ±0.05mm

• Strength Member: Steel, 1.2mm diameter

• Outer Jacket Material: PE (Polyethylene)

• Outer Jacket Color: Black

• Outer Jacket Dimension: 9.0mm ±0.3mm

Optical Performance

• Attenuation (@1310nm): ≤ 0.36 dB/km

• Attenuation (@1550nm): ≤ 0.22 dB/km

• Cable Cutoff Wavelength: ≤ 1260 nm

• Core Diameter: 9.2µm ±0.4 (@1310nm)

• Cladding Diameter: 124.8µm ±0.7

Mechanical & Environmental

• Tensile Load (Long Term): 800 N

• Tensile Load (Short Term): 1600 N

• Crush Resistance (Long Term): 300 N/10cm

• Crush Resistance (Short Term): 1000 N/10cm

• Minimum Bend Radius (Dynamic): 20x Cable Diameter

• Minimum Bend Radius (Static): 10x Cable Diameter

• Installation Temperature: -20°C to +60°C

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +70°C

Standards & Compliance

• IEC60332-3C (Flame Retardant)

• RoHS

• IEC 60794-1 (E1, E3, E4, E7, F1)

Applications

• Telecommunications Backbone Networks

• Data Center Interconnects (DCI)

• Long-Haul and Metropolitan Network Links

• Industrial Automation Systems

• Surveillance and Security Systems (CCTV)

• FTTx (Fiber to the x) Infrastructure
