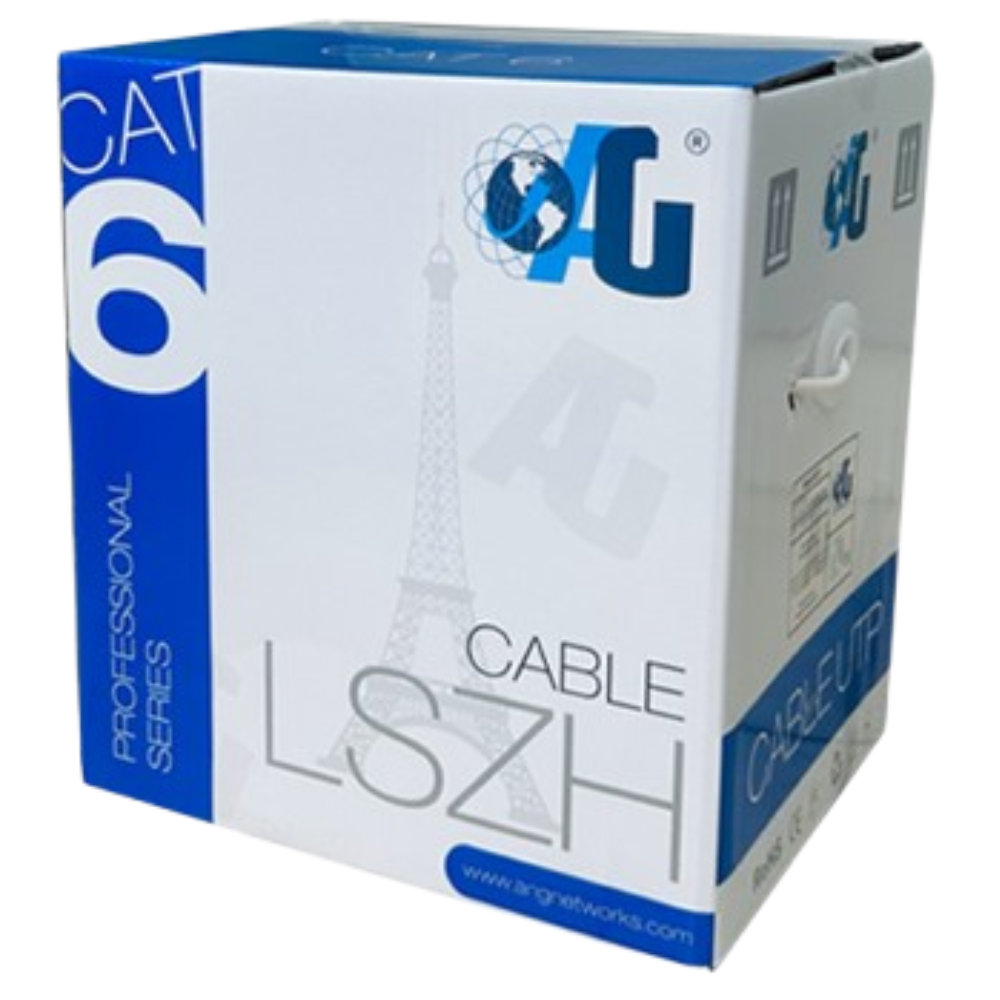

A&G (France) Cat 6 U/UTP 23AWG LSZH Grey 305M Roll-108-61021 price in srilanka

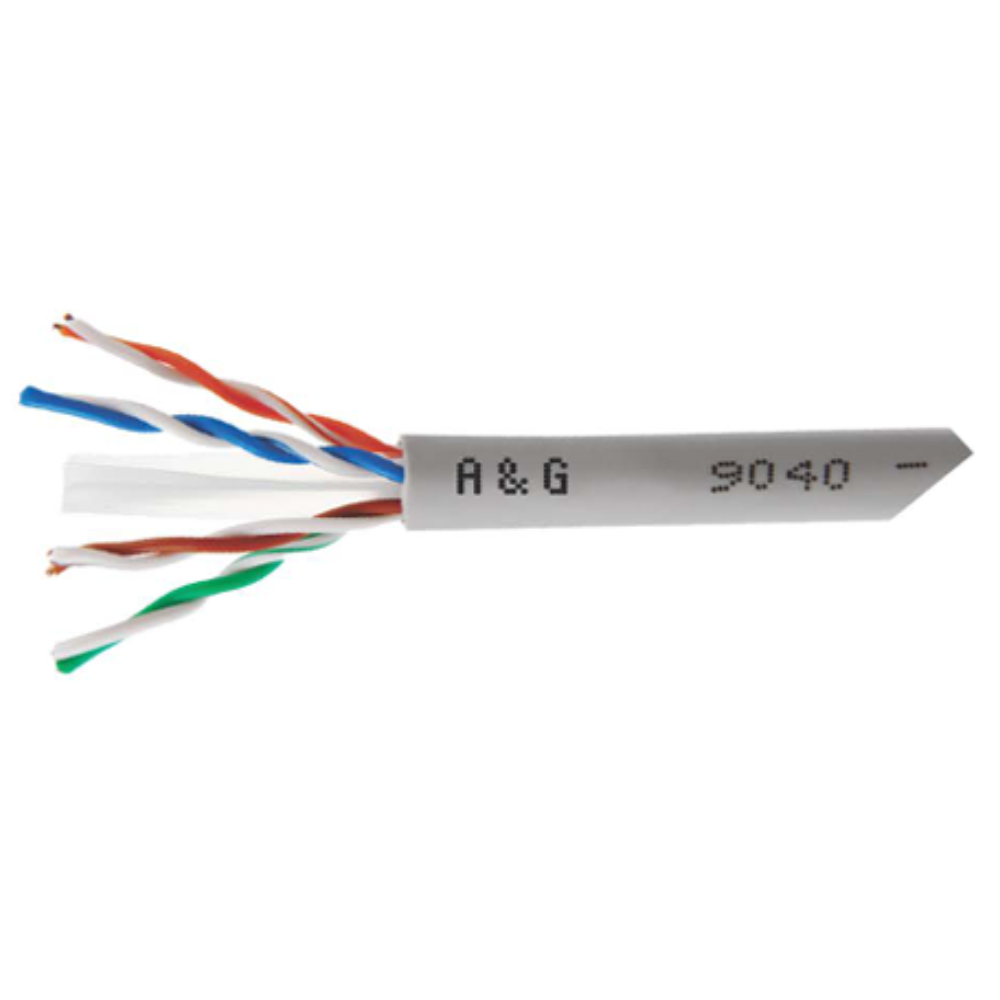

A&G (France) Cat 6 U/UTP 23AWG LSZH Full Copper Grey 305M Roll-108-61021 - Image 2

Key features

Cat6

Cable category

305 m

Cable length

Great Customer Service

Richcom Technology

A&G (France) Cat 6 U/UTP 23AWG LSZH Full Copper Grey 305M Roll-108-61021

  • Enhanced Fire Safety with LSZH: Features a Low Smoke Zero Halogen (LSZH) jacket that minimizes toxic fumes and corrosive smoke in the event of a fire, making it ideal for enclosed public spaces, transportation hubs, and high-occupancy buildings.

  • High-Performance Cat.6 UTP: Meets ANSI/TIA-568.2-D and ISO/IEC 11801 Cat.6 standards, delivering reliable performance for high-speed networks up to 250 MHz.

  • Thicker 23AWG Conductors: Built with 23AWG solid bare copper conductors for better conductivity, improved signal integrity over longer distances, and superior Power over Ethernet (PoE) capability.

රු 90,000.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Technical Specifications

Category Specification
Product Number 108-61021
Product Type Unshielded Twisted Pair (UTP)
Category / Class Cat.6
Conductor 23 AWG Solid Bare Copper (0.550mm)
Number of Pairs 4 Pairs (4P)
Insulation HDPE
Jacket Material LSZH (Low Smoke Zero Halogen) – RoHS Compliant
Standard Length 305 Meters (Wooden Tray & Carton)
Cable Diameter 6.1mm ± 0.4mm
Operating Temperature -20°C to +60°C
Installation Temperature 0°C to +50°C

Electrical Specifications:

  • Nominal Impedance: 100Ω ± 15%

  • Max. DC Loop Resistance: 9.38 Ω/100m

  • Max. Delay Skew: ≤45 ns/100m

  • Max. Frequency: 250 MHz

Physical Specifications:

  • Minimum Bending Radius: 55 N (force)

  • Max. Pulling Tension: 90 N

  • Jacket Tensile Strength: ≥13.5 Mpa

  • Jacket Elongation: ≥150%

  • Cold Bend Test: No cracks at -20°C (8x cable diameter)

Complete your cabling installation

Match cable category, shielding, connector type and installation requirements across the complete channel.

Explore The Ultimate Guide to Network Cable 305m Reels in Sri Lanka: The Backbone of Professional Installations; Network Cable 305m Reels; Network Patch Panels; Network Patch Cords; Network Connecting Accessories.

Weight 15 kg
