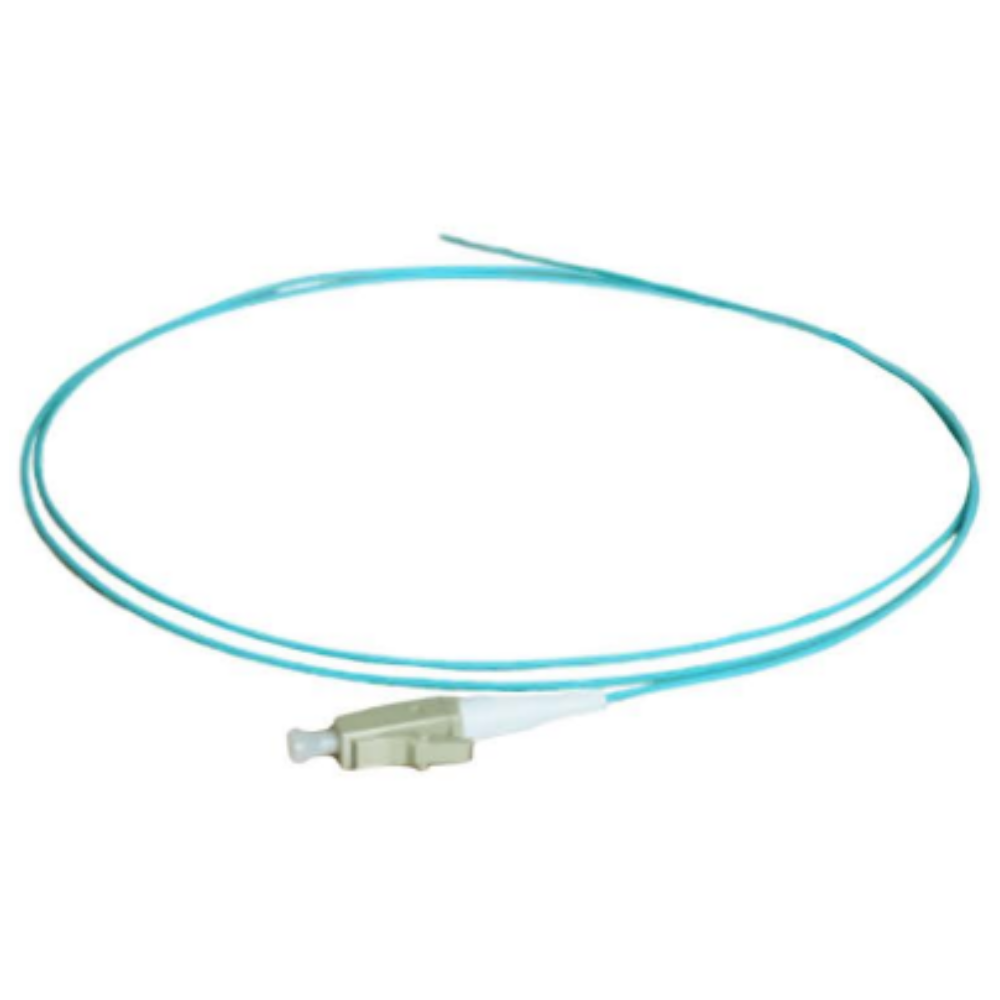

A&G (France) LC Pigtail 1M 50/125 MM OM3-119-02131

Compact LC/UPC Connector: The small form-factor LC connector saves space, allowing for higher port density in patch panels and equipment.
Factory Polished & Tested: Features high-quality, machine-polished connectors with 100% end-face inspection to ensure reliable, low-loss performance.
Robust and Durable Design: The cable is built to withstand pulling, crushing, and harsh environmental conditions during installation and use.
Wide Operating Temperature Range: Suitable for deployment in challenging environments, operating from -40°C to +75°C.

Bulk Orders only

රු 1,850.00

Category	Specification
Part Number	119-02131
Description	LC Pigtail, 1 Meter, 50/125µm, OM3
Fiber Type	Multimode OM3 (50/125 µm)
Connector Type	LC
Polish Type	UPC
Jacket Color	Aqua
Jacket Material	PVC or LSZH (Low Smoke Zero Halogen)
Insertion Loss	Typical: ≤ 0.20 dB	Maximum: ≤ 0.30 dB
Return Loss	≥ 30 dB
Durability	Repeatability: ≤ 0.10 dB	Changeability: ≤ 0.20 dB
Tensile Strength	100 – 1000 N
Lateral Pressure	100 – 1000 N/100mm
Operating Temp.	-40°C to +75°C
Storage Temp.	-40°C to +70°C
Compliances	RoHS, UL, CE, ISO9001

Weight	0.1 kg
