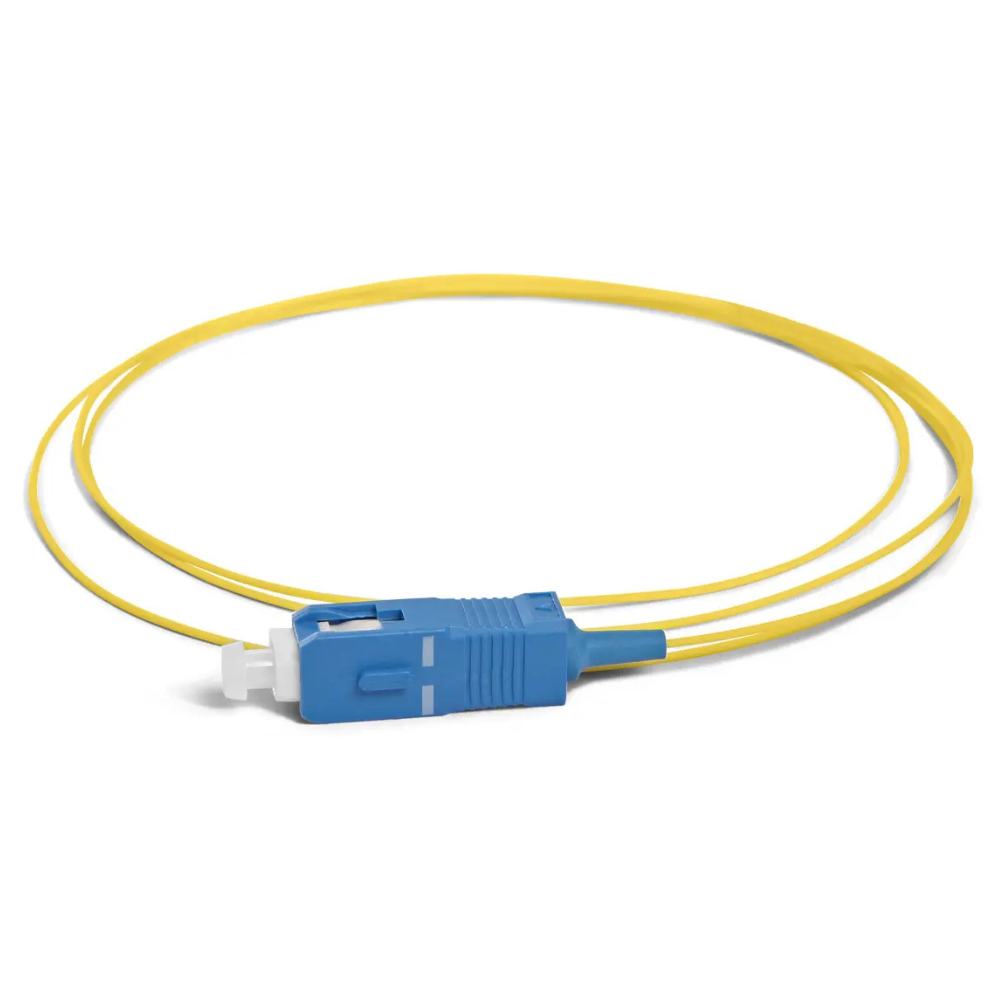

A&G (France) SC Pigtail 1M 9/125 SM-120-01021

Precision SC/UPC Connector: Ensures low insertion loss and low reflectance for optimal signal integrity and clear data transmission.
Excellent Durability: Features excellent mechanical endurance, high credibility, and stability for reliable, long-term use.
High-Quality Construction: The plug material complies with UL94V-0 and RoHS standards, ensuring safety and environmental compliance.
Versatile Applications: Ideal for temporary cable termination, and for both mechanical and fusion splicing methods.

Bulk Orders only

රු 1,850.00

Category	Specification
Part Number	120-01021
Description	SC Pigtail, 1 Meter, 9/125µm, Single-Mode
Fiber Type	Single-Mode (9/125 µm)
Connector Type	SC
Polish Type	UPC
Core Type	One Core (Simplex)
Insertion Loss	≤ 0.30 dB
Return Loss	≥ 50 dB
Tensile Strength	100 N to 1000 N
Lateral Pressure	100 N/100mm to 1000 N/100mm
Operating Temperature	-40°C to +85°C
Sheath Material	PVC or LSZH (Low Smoke Zero Halogen)
Compliances	RoHS, UL, CE, ISO9001, Telcordia GR-326-CORE

Weight	0.1 kg
