Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CS1716I |
| Computer Connections — Direct | 16 |
| Computer Connections — Maximum | 256 (via daisy-chain) |
| Port Selection | OSD/GUI; hotkeys; pushbuttons |
| Connectors — Console Ports | 1 x SPHD male (yellow) |
| Connectors — KVM Ports | 16 x SPHD female (yellow) |
| Connectors — Daisy Chain Ports | 1 x DB-25 male |
| Connectors — Power | 1 x DC jack |
| Connectors — LAN Ports | 1 x RJ-45 female |
| Connectors — Firmware Upgrade | 1 x RJ-11 |
| Connectors — USB Port | 1 x USB Type-A female |
| Switches — Reset | 1 x semi-recessed pushbutton |
| Port Selection | 16 x pushbutton |
| Switches — Firmware Upgrade Recovery | 1 x slide switch |
| LEDs — Online | 16 (orange) |
| LEDs — Selected | 16 (green) |
| LEDs — Station ID | 1 x 2-digit 7-segment (orange) |
| LEDs — Power | 1 (dark green) |
| LEDs — 10/100 Mbps | 1 (orange/green, at LAN port) |
| Emulation — Keyboard / Mouse | PS/2, USB |
| Video — Local | 2048 x 1536; DDC2B |
| Video — Remote | Depends on hardware revision; confirm the supplied revision before choosing the display/network setting. |
| Scan Interval | 1–255 seconds |
| Power Consumption | DC5.3V:9.2W:58BTU/h; Watts indicate typical consumption without external loading; BTU/h indicates fully loaded consumption. |
| Environmental — Operating Temperature | 0–50°C |
| Environmental — Storage Temperature | -20–60°C |
| Environmental — Humidity | 0–80% RH, non-condensing |
| Physical Properties — Housing | Metal |
| Physical Properties — Weight | 3.00 kg |
| Physical Properties — Dimensions (L x W x H) | 43.72 x 15.96 x 4.40 cm |
| Supplied accessories | 1 x CS1716i KVM over IP switch; 1 x VGA/USB KVM cable, 1.8 m; 1 x VGA/PS/2 KVM cable, 1.8 m; 1 x VGA/USB/PS/2 console cable, 27 cm; 1 x firmware upgrade cable; 1 x rack mount kit; 4 x foot pads; 1 x power adapter; 1 x user manual; 1 x quick start guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Administer 16 computers at the rack or over IP.
- Access BIOS-level controls on supported connected systems.
- Accommodate compatible PS/2 and USB computer connections.
- Use OSD selection and Video DynaSync for routine operation.
- Expand a compatible daisy chain to 256 computers.
Product Information

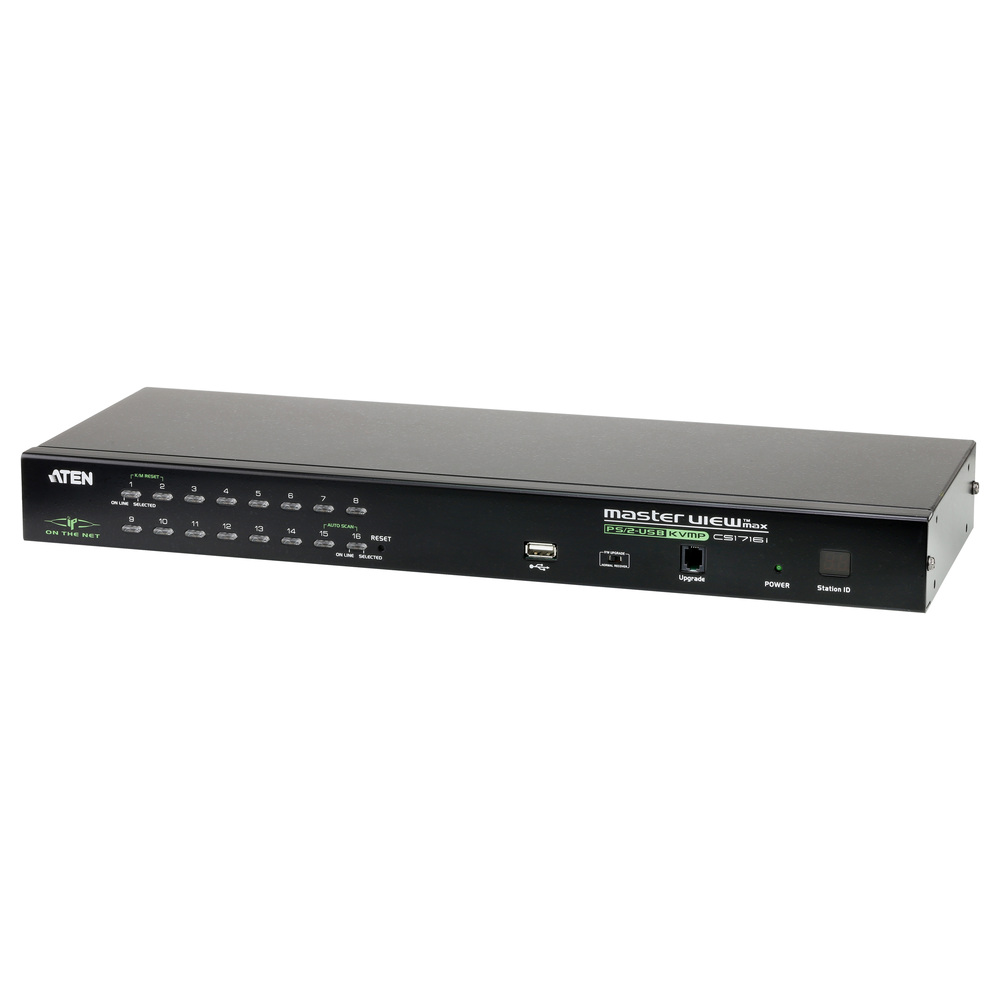

Provide local and network-based console access to 16 computers in a rack installation. Authorized remote operators can reach BIOS-level controls, supporting maintenance when the operating system cannot provide a normal remote desktop. Up to 64 accounts and 32 concurrent logins share the access bus. A compatible daisy chain can extend the installation to 256 computers.
Remote resolution depends on the FHD or non-FHD hardware revision; confirm the supplied revision. Concurrent logins share access rather than providing independent sessions to all computers. Additional computer and daisy-chain cables are separate.
Included: 1 x CS1716i KVM over IP switch; 1 x VGA/USB KVM cable, 1.8 m; 1 x VGA/PS/2 KVM cable, 1.8 m; 1 x VGA/USB/PS/2 console cable, 27 cm; 1 x firmware upgrade cable; 1 x rack mount kit; 4 x foot pads; 1 x power adapter; 1 x user manual; 1 x quick start guide.
