Specifications
| Video Input / Interfaces | 2 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Input / Max. Distance | 5 m |
| Video Output / Interfaces | 2 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 15 m |
| Video / Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Video / Max. Pixel Clock | 340 MHz |
| Video / Compliance | HDMI (3D, 4K, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) |
| Video / Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Video / Max. Distance | Up to 15 m |
| Control / USB | 1 x Micro USBF/W upgrade |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Control / IR | 1 x Mini Stereo Jack Female (Black) |
| Control / EDID Settings | EDID Mode: Default / Port1 / Remix |
| Control / Carton Lot | 5 pcs |
| Physical Properties / Weight | 0.58 kg ( 1.28 lb ) |
| Physical Properties / Housing | Metal |
| Physical Properties / Dimensions (L x W x H) | 20.00 x 7.60 x 4.20 cm (7.87 x 2.99 x 1.65 in.) |
| Connectors / Power | 1 x DC Jack (Black) |
| Connectors / Power Consumption | DC5V:4.3W:20BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0-40°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Environmental / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |

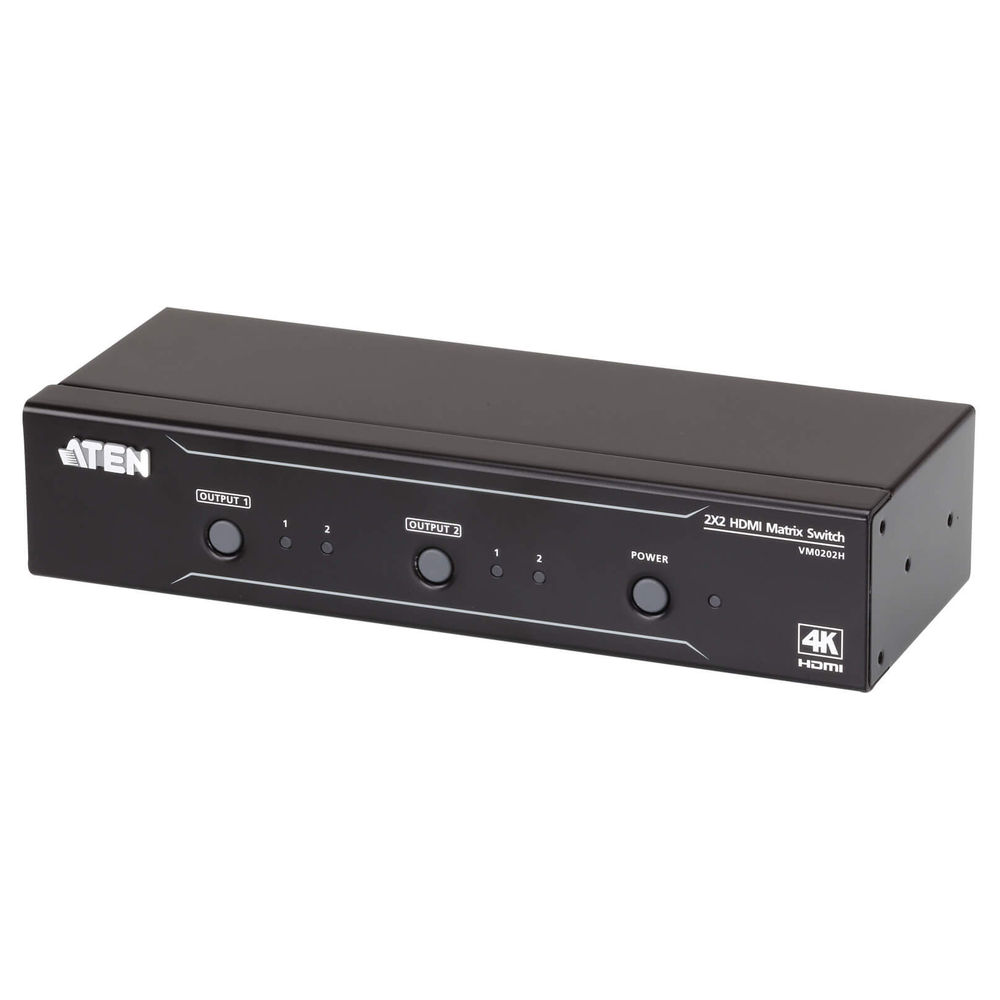

| Included accessories | 1x VM0202H 2×2 4K HDMI Matrix Switch; 1x Rack Mount Kit; 1x Power Adapter; 1x IR Control; 1x IR Receiver; 1x User Instructions |
Key Features
- Assign HDMI sources independently to display outputs.
- Support documented 4K 30 Hz 4:4:4 and 60 Hz 4:2:0 formats.
- Choose front-panel, infrared or RS-232 control.
- Manage display negotiation using EDID Expert modes.
- Secure a fixed installation with a metal, rack-mountable chassis.
Product Information
Route any connected HDMI source to the required display in a meeting, training or multi-screen AV installation. Independent matrix routing lets different screens show different sources while retaining central control.
The matrix does not add unsupported resolution or HDCP capabilities to a display. Plan cable lengths for the selected format; the documented HDMI compatibility is HDCP 1.4. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VM0202H 2×2 4K HDMI Matrix Switch; 1x Rack Mount Kit; 1x Power Adapter; 1x IR Control; 1x IR Receiver; 1x User Instructions.
