Specifications
| Video Input / Interfaces | 2 x HDB-15 Male (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 2 x HDB-15 Female (Blue) |
| Video Output / Impedance | 75 Ω |
| Video / Max. Bandwidth | 200 MHz |
| Video / Max. Resolution | Up to 1920 x 1200 |
| Video / Max. Distance | Up to 30 m |
| Audio / Input | 2 x Mini Stereo Jack Female (Green) |
| Audio / Output | 2 x Mini Stereo Jack Female (Green) |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5.3V:2.43W:11BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0-50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.47 kg ( 1.04 lb ) |
| Physical Properties / Dimensions (L x W x H) | 13.00 x 7.61 x 4.40 cm (5.12 x 3 x 1.73 in.) |
| Physical Properties / Carton Lot | 01 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x 2-Port Video Matrix Switch; 1x VGA/Audio Cable (1.8 m); 1x Power Adapter; 1x User Instructions |
Key Features
- Route selected VGA sources to individual display outputs.
- Keep audio available through dedicated input and output jacks.
- Change display assignments without recabling the installation.
- Use front-panel controls for direct operation.
- Fit a durable metal unit into a permanent AV setup.
Product Information

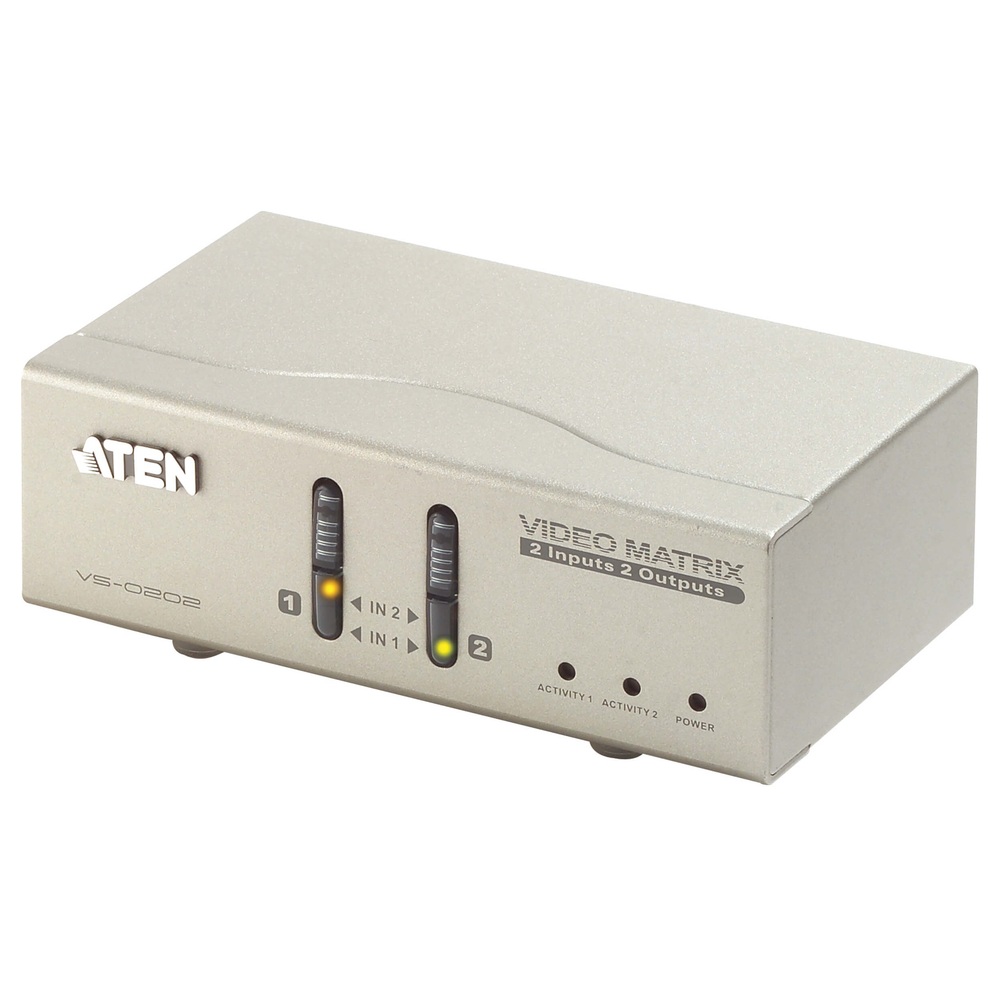

Route VGA pictures and audio between multiple sources and destinations without moving cables. Matrix routing allows each display to use a selected source, making the unit suitable for demonstrations and multi-screen presentation spaces.
Cable distance and analogue picture quality depend on the connected equipment and cabling. Only the accessories listed below are supplied; screens and source equipment are not included. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x 2-Port Video Matrix Switch; 1x VGA/Audio Cable (1.8 m); 1x Power Adapter; 1x User Instructions.
