Specifications
| Video Input / Interfaces | 1 x BNC (Gold) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Output / Interfaces | 1 x HDMI Type A Female (Black); 1 x BNC (Gold) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 15m at 1920*1080@60 (4:4:4) – HDMI |
| Video / Max. Data Rate | 2.97 Gbps |
| Video / Max. Pixel Clock | 148.5 MHz |
| Video / Supported Resolutions | [email protected], PAL@50 Hz; 720p@50/59.94/60 Hz; 1080i@50/59.94/60 Hz; [email protected]/24/25/29.97/30/50/59.94/60 Hz |
| Video / Max. Distance | 90m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI) |
| Video / SDI Formats | SD-SDI (SMPTE 259M, up to 270 Mbps) HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps) |
| Audio / Output | Analog: 2 x RCA (Red/White) Digital: 1 x RCA (Yellow) |
| Audio / Format | Input: PCM 2/5.1/7.1 Channel @48kHz sampling rateOutput: PCM 2 Channel (Analog/Digital) |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5V:3.635WBTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 40 ºC |
| Environmental / Storage Temperature | -20 – 60 ºC |
| Environmental / Humidity | 20 – 90% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.29 kg ( 0.64 lb ) |
| Physical Properties / Dimensions (L x W x H) | 12.30 x 10.87 x 3.05 cm (4.84 x 4.28 x 1.2 in.) |
| Physical Properties / Carton Lot | 01 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |

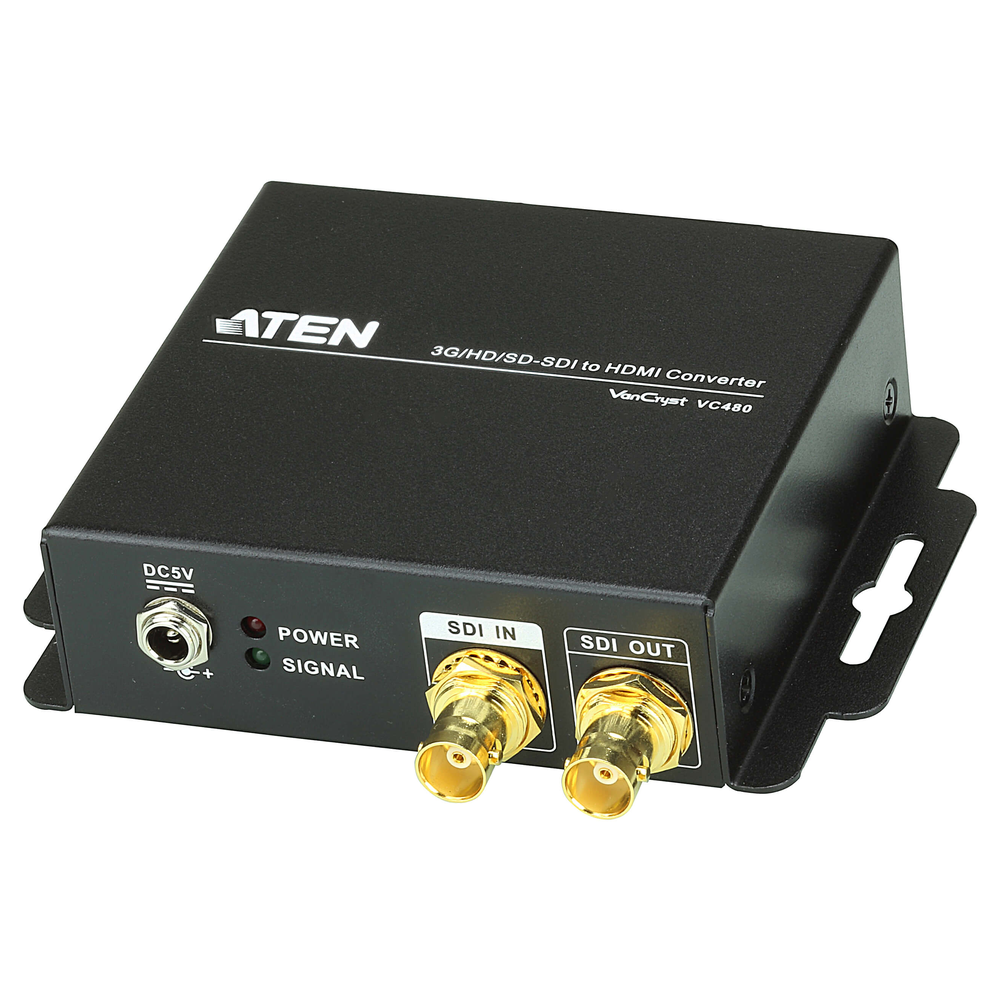

| Included accessories | 1x VC480 3G/HD/SD-SDI to HDMI Converter; 1x Power Adapter; 1x User Instructions |
Key Features
- Convert between the documented HDMI and SDI signal formats.
- Support SD-SDI, HD-SDI and 3G-SDI operation.
- Provide analogue stereo and coaxial digital audio connections.
- Use reclocking to support a stable SDI signal path.
- Secure power with the locking connector.
Product Information
Bridge HDMI and professional SDI equipment in the signal direction specified for this model. The converter provides a compact way to integrate monitoring, source and audio equipment across the two interfaces.
Conversion is from SDI to HDMI, with buffered SDI loop-through for monitoring. Supported 3G-SDI formats include levels A and B. The maximum stated RG6 ranges are 90 m for 3G-SDI, 150 m for HD-SDI and 300 m for SD-SDI. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VC480 3G/HD/SD-SDI to HDMI Converter; 1x Power Adapter; 1x User Instructions.
