Specifications
| Video Input / Interfaces | 4 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Input / Max. Distance | 3.0 m |
| Video Output / Interfaces | 4 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 15 m |
| Video / Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) |
| Video / Max. Pixel Clock | 225 MHz |
| Video / Compliance | HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC) |
| Video / Max. Resolution | Up to 1080p |
| Video / Max. Distance | Up to 15 m |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Control / IR | 1 x Mini Stereo Jack Female (Black) |
| Control / Ethernet | 1 x RJ-45 Female |
| Control / EDID Settings | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) |
| Connectors / Power | 1 x 3-Prong AC Socket |
| Power / Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
| Power / Power Consumption | AC110V:34.1W:160BTU/hAC220V:34.4W:161BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0-50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 4.05 kg ( 8.92 lb ) |
| Physical Properties / Dimensions (L x W x H) | 43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.) |
| Physical Properties / Carton Lot | 1 pc |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VM5404H 4 x 4 HDMI Matrix Switch with Scaler; 1x Power Cord; 1x IR Remote Control; 1x IR Receiver; 1x Mounting Kit; 1x User Instructions |
Key Features
- Route four HDMI inputs to four independently selected outputs.
- Adapt source resolutions using the integrated scaler.
- Create custom video-wall arrangements through the web interface.
- Use Seamless Switch to reduce interruption during source changes.
- Choose front-panel, IR, RS-232 or network control.
Product Information

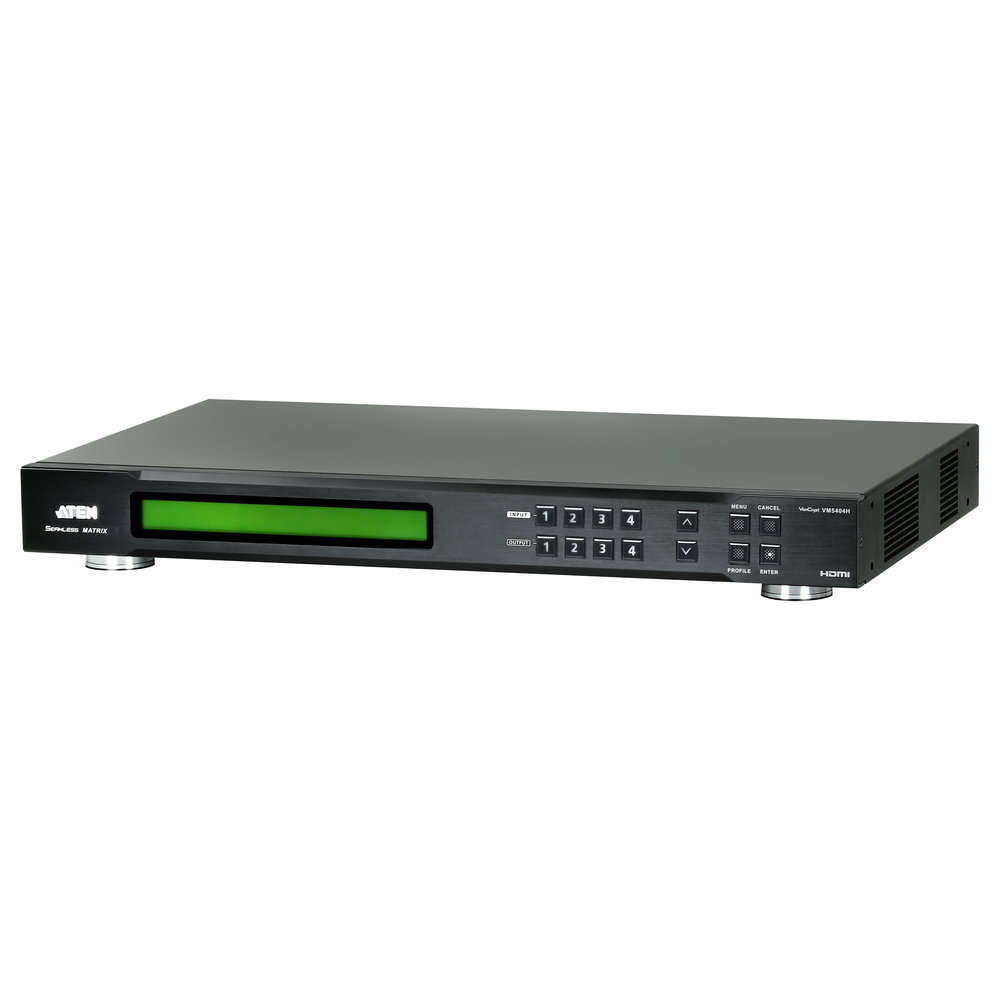

Manage four HDMI sources across four screens with scaling and video-wall configuration for a presentation or monitoring installation. Its network interface allows the matrix to be configured and operated from a supported control interface.
Maximum output resolution is 1080p. With Seamless Switch enabled, 3D, Deep Color and interlaced output modes are unavailable; disable that function when those formats are required. Display adjustments may be necessary in video-wall mode. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VM5404H 4 x 4 HDMI Matrix Switch with Scaler; 1x Power Cord; 1x IR Remote Control; 1x IR Receiver; 1x Mounting Kit; 1x User Instructions.
