Specifications
| Video Input / Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Input / Max. Distance | 3m @3840×2160@30Hz (4:4:4) |
| Video Output / Interfaces | 4 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 15m @3840×2160@30Hz (4:4:4) |
| Video / Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Video / Max. Pixel Clock | 340 MHz |
| Video / Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| Video / Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio / Input | 1 x HDMI Type A Female (Black) |
| Audio / Output | 4 x HDMI Type A Female (Black) |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5.3V:6.02W:28BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0-50 °C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.47 kg ( 1.04 lb ) |
| Physical Properties / Dimensions (L x W x H) | 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.) |
| Physical Properties / Carton Lot | 20 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VS184A 4-Port HDMI Splitter; 1x Power Adapter; 1x HDMI Cable(1.8 m); 1x User Instructions |
Key Features
- Show one HDMI source on 4 screens simultaneously.
- Retain supported 4K video formats for detailed viewing.
- Carry Dolby TrueHD and DTS-HD Master Audio from compatible sources.
- Provide up to 10.2 Gbps aggregate video data capacity.
- Install without additional software.
Product Information

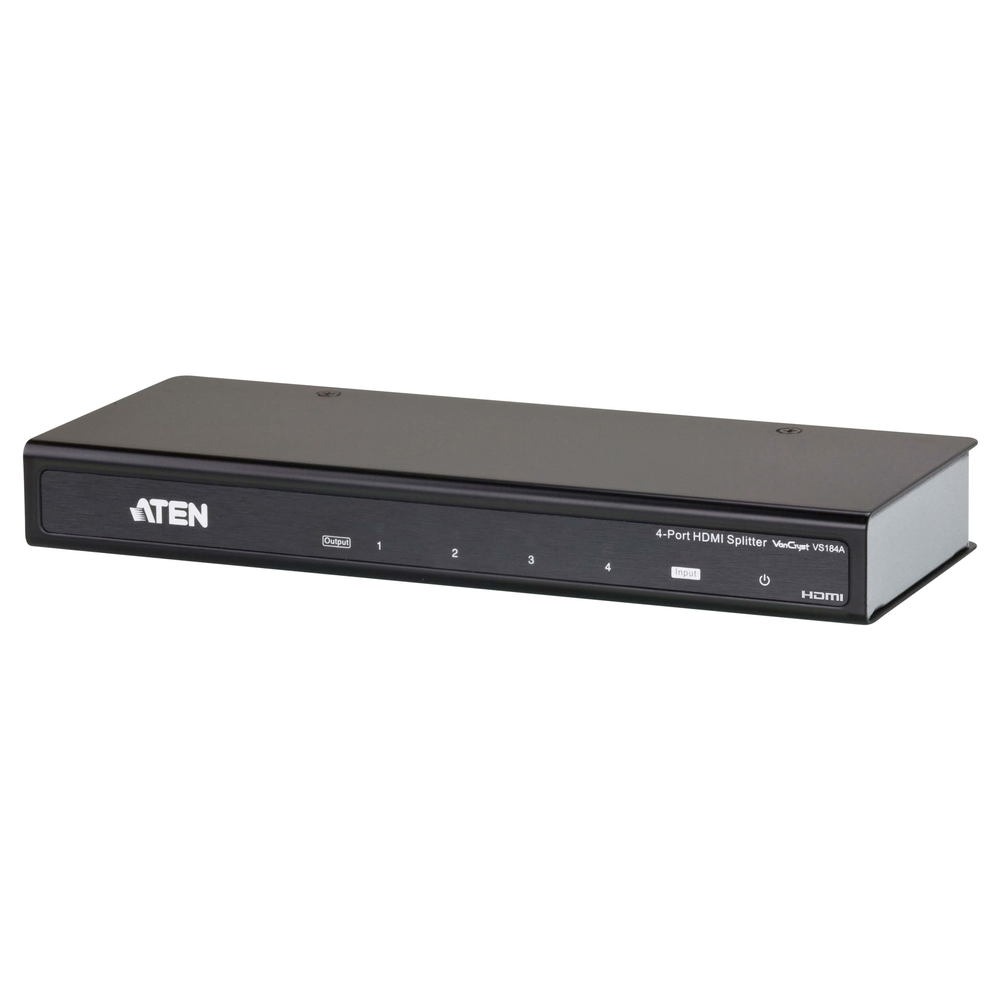

Duplicate one HDMI source across several screens for meeting rooms, showrooms or home AV installations. The splitter carries the selected source’s video and embedded audio to every connected display.
Supported 4K formats and cable distances are listed in the specifications. Source, displays and cables must support the selected format; this is a splitter rather than an independent source-selection matrix. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VS184A 4-Port HDMI Splitter; 1x Power Adapter; 1x HDMI Cable(1.8 m); 1x User Instructions.
