Specifications
| Video Input / Interfaces | 8 x HDB-15 Male (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 1 x HDB-15 Female (Blue) |
| Video Output / Impedance | 75 Ω |
| Video / Max. Bandwidth | 300 MHz |
| Video / Max. Distance | Up to 30 m |
| Audio / Input | 8 x Mini Stereo Jack Female (Green) |
| Audio / Output | 1 x Mini Stereo Jack Female (Green) |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black)Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5.3V:1.01W:5BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 2.10 kg ( 4.63 lb ) |
| Physical Properties / Dimensions (L x W x H) | 43.70 x 15.98 x 4.40 cm (17.2 x 6.29 x 1.73 in.) |
| Physical Properties / Carton Lot | 01 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VS0801A 8-Port VGA Switch with Auto Switching; 1x IR Remote Control; 1x Power Adapter; 1x Mounting Kit; 1x User Instructions |
Key Features
- Select among eight VGA and stereo-audio inputs.
- Use front-panel buttons, the included IR remote or RS-232.
- Respond to source power changes with automatic switching.
- Reduce display renegotiation issues using Video DynaSync and Dynamic DDC.
- Fit a fixed installation with the included rack-mounting kit.
Product Information

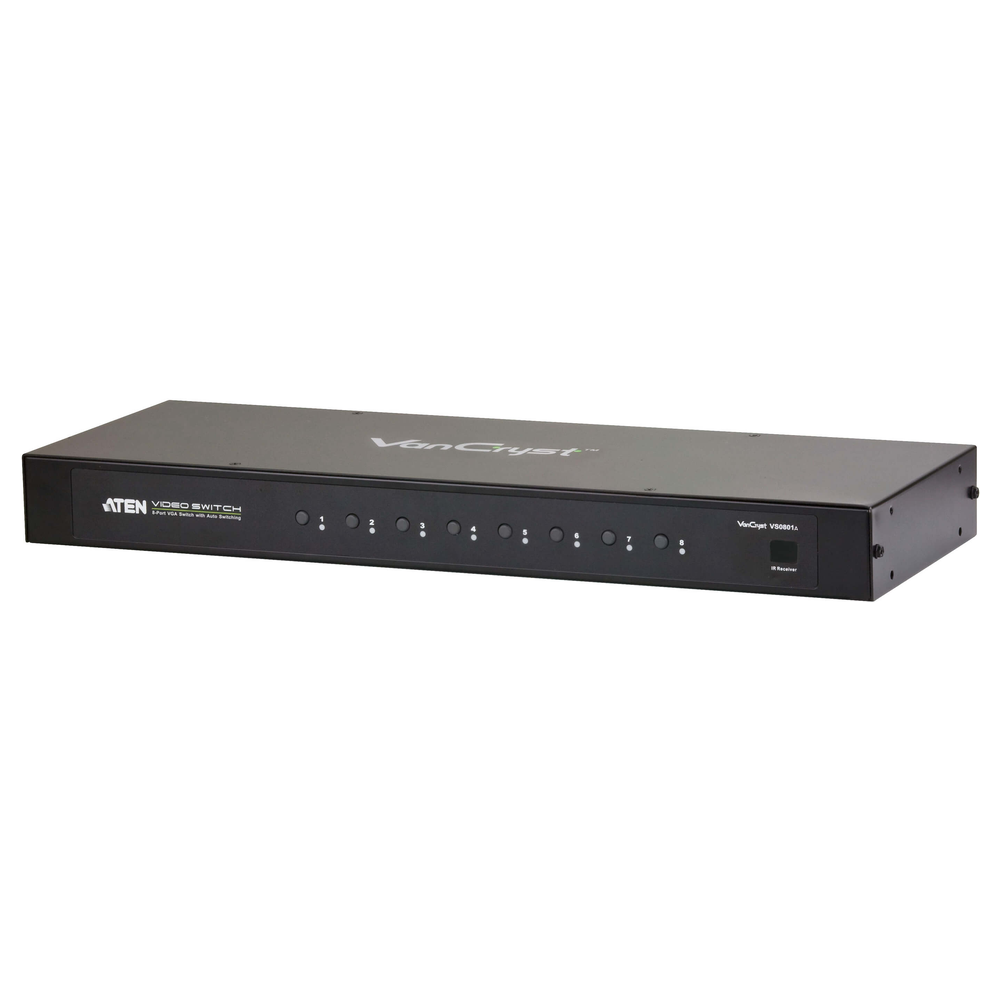

Keep eight VGA computers connected to a shared presentation display with stereo audio switching. The rack-mountable design supports rooms with several presenters or source devices and central AV control.
The optional port-switching VGA cable is sold separately. Select a supported timing and use suitable VGA cables for the intended distance. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VS0801A 8-Port VGA Switch with Auto Switching; 1x IR Remote Control; 1x Power Adapter; 1x Mounting Kit; 1x User Instructions.
