Specifications
| Video Input / Interfaces | 1 x HDB-15 Male (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 8 x HDB-15 Female (Blue) |
| Video Output / Impedance | 75 Ω |
| Video / Max. Bandwidth | 350 MHz |
| Video / Max. Resolution | Up to 1920 x 1440 |
| Video / Max. Distance | Up to 30 m |
| Connectors / Power | 1 x DC Jack |
| Environmental / Operating Temperature | 0 – 50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Environmental / Power Consumption | DC9V:5W:23BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.69 kg ( 1.52 lb ) |
| Physical Properties / Dimensions (L x W x H) | 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.) |
| Physical Properties / Carton Lot | 20 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x 8-Port Video Splitter; 1x Power Adapter; 1x User Instructions |
Key Features
- Feed 8 VGA displays from one source.
- Carry detailed analogue pictures with 350 MHz bandwidth.
- Expand a display installation through three-level cascading.
- Use DDC communication on output port 1 for compatible displays.
- Fit permanent installations with a metal enclosure.

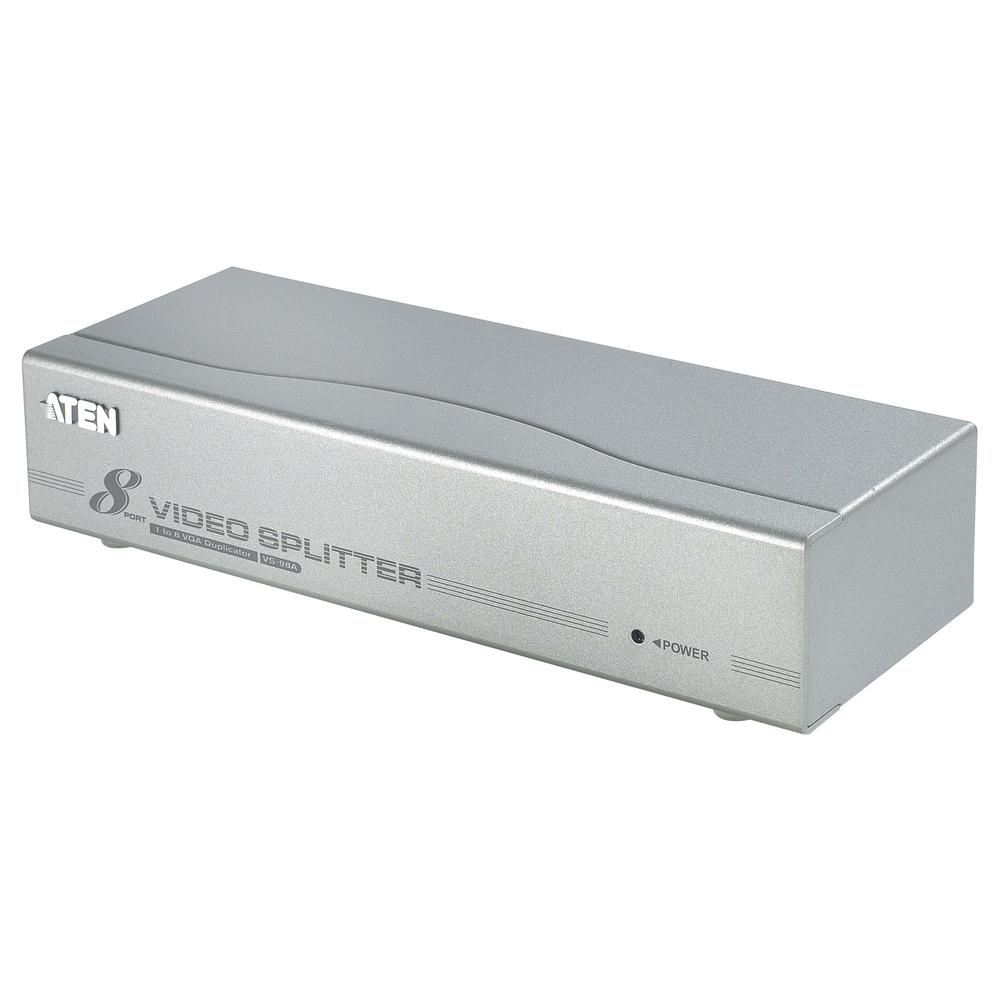

Product Information
Send one VGA source to several monitors or projectors for demonstrations, classroom displays or shared information screens. This analogue video splitter duplicates the same picture across its outputs.
This model distributes VGA video; stereo-audio distribution is not specified. Long VGA cable runs can reduce picture quality. Cascading requires additional splitters and suitable cables. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x 8-Port Video Splitter; 1x Power Adapter; 1x User Instructions.
