Specifications
| Video Input / Interfaces | VE811R: N/A; VE811T: 1 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | VE811R: N/A; VE811T: 100 Ω |
| Video Input / Max. Distance | VE811R: N/A; VE811T: 3 m |
| Video Output / Interfaces | VE811R: 1 x HDMI Type A Female (Black); VE811T: N/A |
| Video Output / Impedance | VE811R: 100 Ω; VE811T: N/A |
| Video Output / Max. Distance | VE811R: 3 m; VE811T: N/A |
| Video / Max. Data Rate | VE811R: 10.2Gbps (3.4Gbps per lane); VE811T: 10.2Gbps (3.4Gbps per lane) |
| Video / Max. Pixel Clock | VE811R: 340 MHz; VE811T: 340 MHz |
| Video / Compliance | VE811R: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC); VE811T: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Video / Max. Resolutions / Distance | VE811R: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4); VE811T: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio / Input | VE811R: N/A; VE811T: 1 x HDMI Type A Female (Black) |
| Audio / Output | VE811R: 1 x HDMI Type A Female (Black); VE811T: N/A |
| Connectors / Unit To Unit | VE811R: 1 x RJ-45 Female; VE811T: 1 x RJ-45 Female |
| Connectors / Firmware Upgrade | VE811R: 1 x Mini Stereo Jack Female (Black); VE811T: 1 x Mini Stereo Jack Female (Black) |
| Connectors / Power | VE811R: 1 x DC Jack (Black) with locking; VE811T: 1 x DC Jack (Black) with locking |
| Switches / Long Reach Mode Switch | VE811R: 1 x Slide Switch – ON/OFF; VE811T: 1 x Slide Switch – ON/OFF |
| Switches / Power Consumption | VE811R: DC5V:3.84W:18BTUNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; VE811T: DC5V:3.77W:18BTUNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | VE811R: 0 – 40°C; VE811T: 0 – 40°C |
| Environmental / Storage Temperature | VE811R: -20 – 60°C; VE811T: -20 – 60°C |
| Environmental / Humidity | VE811R: 0 – 80% RH, Non-Condensing; VE811T: 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | VE811R: Metal; VE811T: Metal |
| Physical Properties / Weight | VE811R: 0.17 kg ( 0.37 lb ); VE811T: 0.16 kg ( 0.35 lb ) |
| Physical Properties / Dimensions (L x W x H) with bracket | VE811R: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.); VE811T: 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.) |
| Physical Properties / Dimensions (L x W x H) without bracket | VE811R: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.); VE811T: 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.) |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VE811T HDMI HDBaseT Transmitter; 1x VE811R HDMI HDBaseT Receiver; 2x Power Adapters; 1x User Instructions |
Key Features
- Deploy with both transmitter and receiver included.
- Carry supported 4K HDMI content over HDBaseT.
- Reach up to 100 m with the specified cable and video format.
- Retain compatible HDMI audio and CEC communication.
- Install without additional source-device software.
Product Information

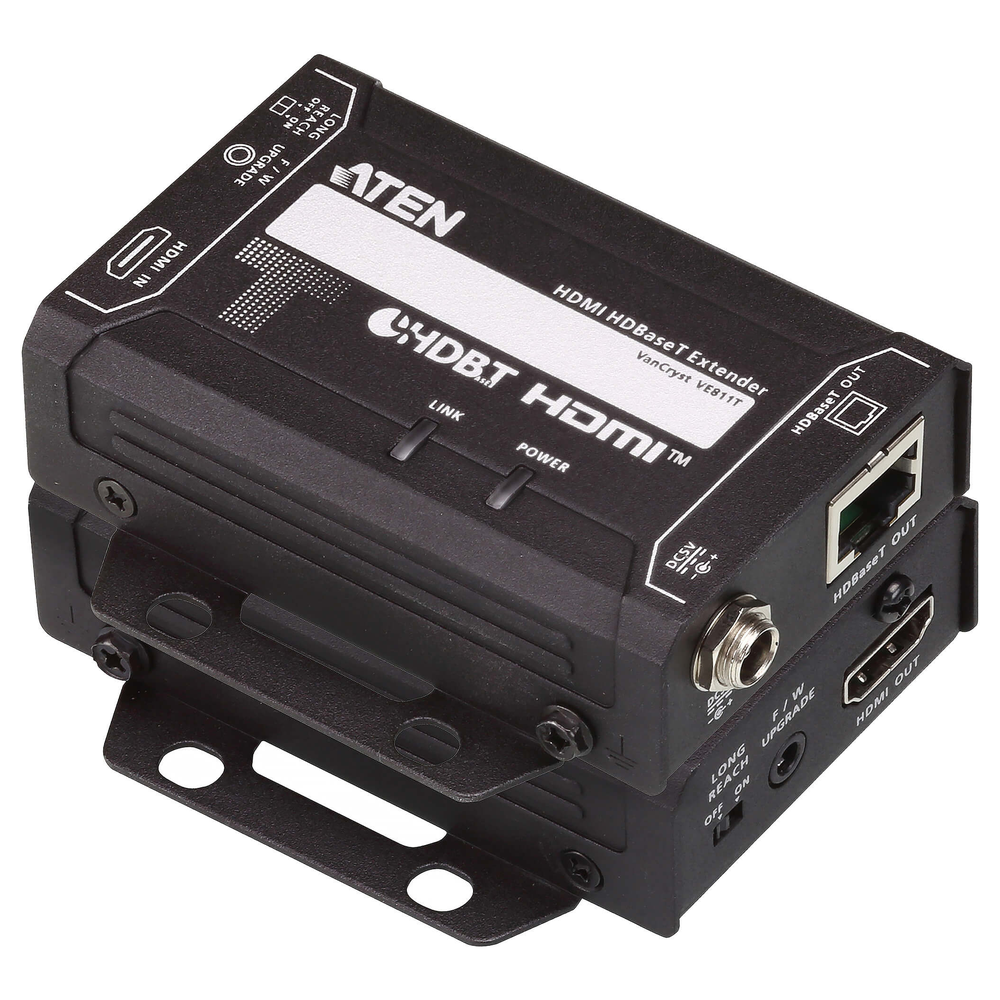

Extend an HDMI source to a remote display over a single HDBaseT cable using the included transmitter and receiver. This is a point-to-point AV link suited to installed presentation, signage and display systems.
4K reaches up to 70 m with Cat 5e/6 and 100 m with Cat 6a under the documented conditions. Each unit requires its own power adapter. Follow the exact resolution, chroma and cable specifications below. Long Reach Mode additionally supports up to 1080p over 150 m. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VE811T HDMI HDBaseT Transmitter; 1x VE811R HDMI HDBaseT Receiver; 2x Power Adapters; 1x User Instructions.
