Specifications
| Video Input / Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Video Input / Impedance | 100 Ω |
| Video Output / Interfaces | 1 x HDB-15 Female (Black) |
| Video Output / Impedance | 75 Ω |
| Video / Max. Pixel Clock | 165 MHz |
| Video / Max. Resolution | Up to 1920 x 1200 |
| Video / Scaler Resolutions | 480p; 576p; 800 x 600; 1024 x 768; 1280 x 720; 1280 x 1024; 1360 x 768; 1440 x 900; 1600 x 1200; 1680 x 1050; 1080i; 1080p; 1920 x 1200 |
| Audio / Output | Analog: 1 x Mini Stereo Jack Female (Black) Digital: 1 x RCA (Yellow) |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5V:2.125WBTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 40 ºC |
| Environmental / Storage Temperature | -20 – 60 ºC |
| Environmental / Humidity | 20 – 90% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.29 kg ( 0.64 lb ) |
| Physical Properties / Dimensions (L x W x H) | 11.00 x 8.30 x 2.80 cm (4.33 x 3.27 x 1.1 in.) |
| Physical Properties / Carton Lot | 5 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |

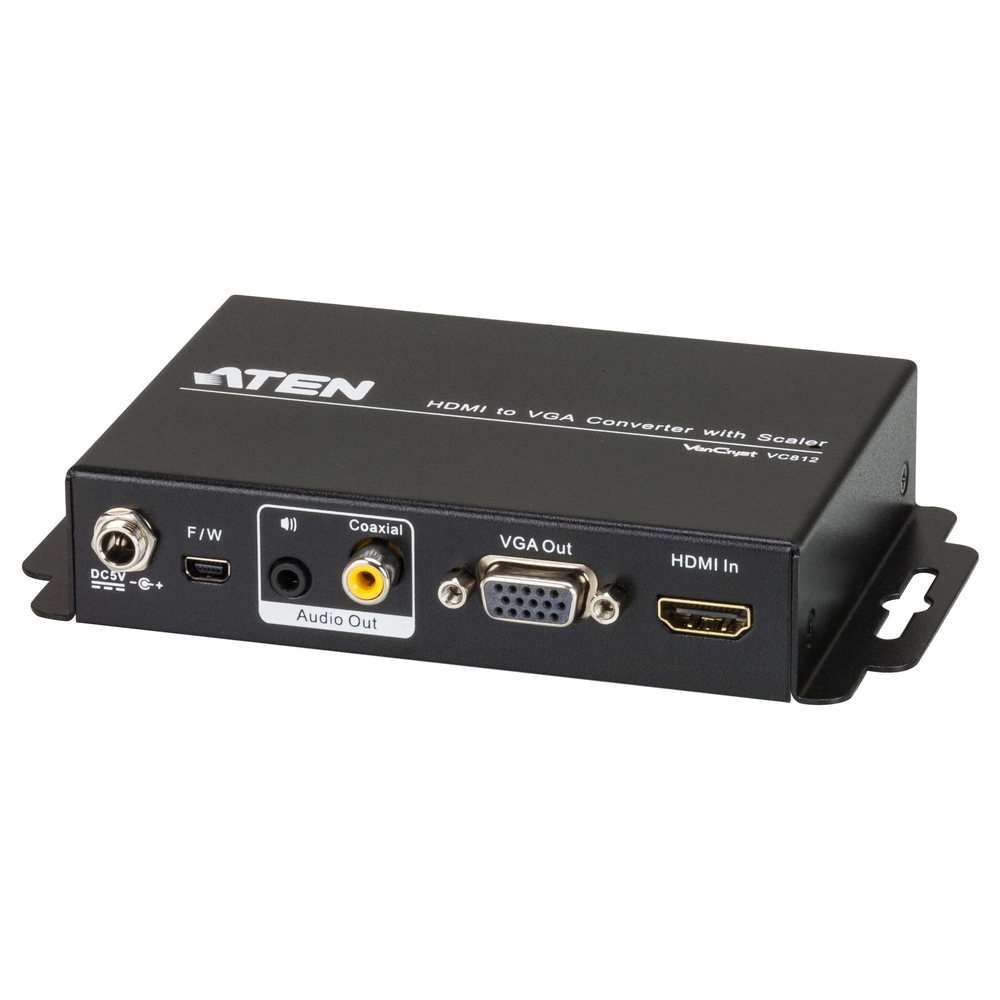

| Included accessories | 1x VC812 HDMI to VGA Converter with Scaler; 1x Power Adapter; 1x Software CD; 1x User Instructions |
Key Features
- Reuse a VGA display with an HDMI source.
- Scale the picture for a supported display resolution.
- Extract analogue stereo or coaxial digital audio.
- Adjust video settings through the on-screen menu.
- Improve playback with deinterlacing and noise-reduction functions.
Product Information
Convert HDMI video for a VGA display while adapting the output resolution with an integrated scaler. Separate audio outputs help connect the picture and sound to existing analogue display and audio equipment.
The VC812 does not support HDCP, so protected HDMI content is unsuitable. Conversion is HDMI to VGA only; use the supplied power adapter and select a supported output timing. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VC812 HDMI to VGA Converter with Scaler; 1x Power Adapter; 1x Software CD; 1x User Instructions.
