Specifications
| Brand | ATEN |
|---|---|
| Brand headquarters | Taiwan |
| Available Length options | 0.3M, 0.6M, 2M, 3M, 5M, 10M, 15M, 20M |

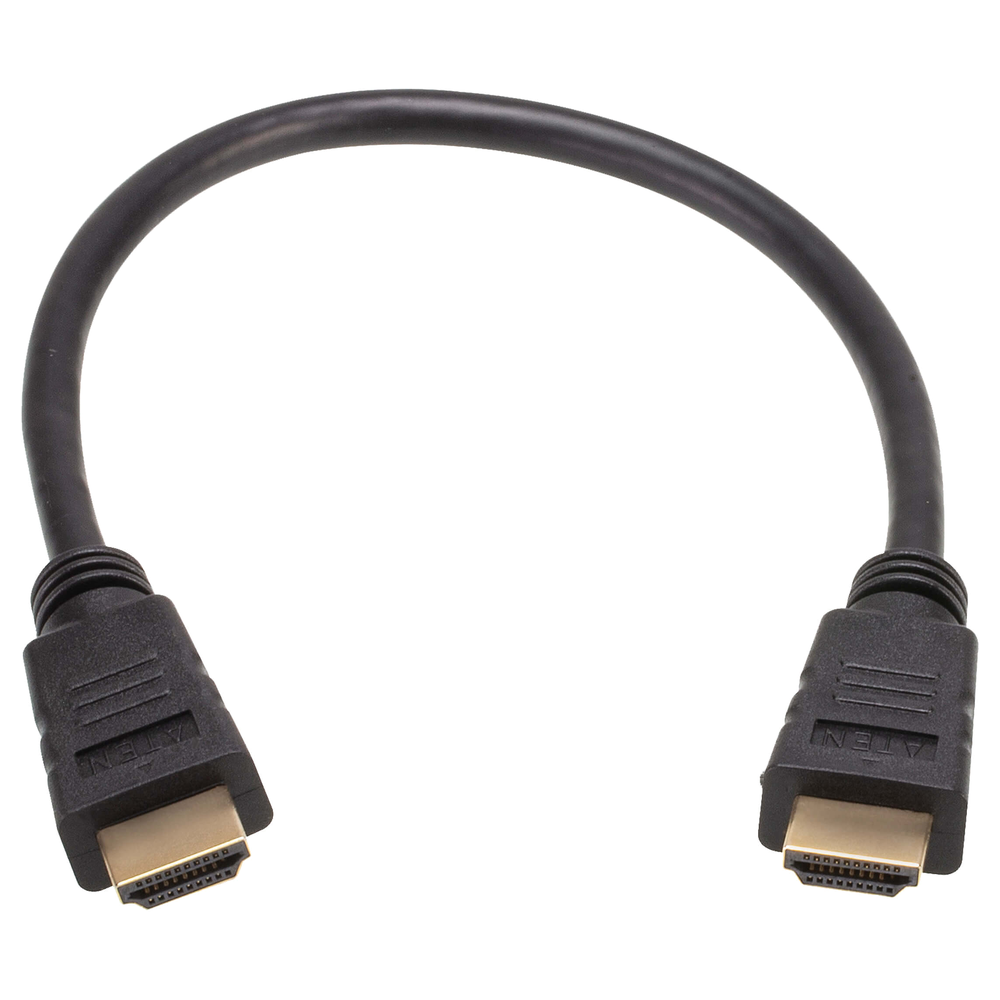

| 2L-7DA3H (0.3M) – Model | 2L-7DA3H |
| 2L-7DA3H (0.3M) – Cable length | 0.3 m |
| 2L-7DA3H (0.3M) – Video connectors | 19-pin HDMI male to male |
| 2L-7DA3H (0.3M) – Maximum video resolution | 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4) |
| 2L-7DA3H (0.3M) – HDCP compliance | 2.2 |
| 2L-7DA3H (0.3M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7DA3H (0.3M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7DA3H (0.3M) – Conductor | 30 AWG tinned copper |
| 2L-7DA3H (0.3M) – Connector plating | Gold |
| 2L-7DA3H (0.3M) – Outer diameter | 6.0 ± 0.15 mm |
| 2L-7DA3H (0.3M) – Cable colour | Black |
| 2L-7DA3H (0.3M) – Shield | Aluminum foil |
| 2L-7DA3H (0.3M) – Jacket | PVC |
| 2L-7DA3H (0.3M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7DA3H (0.3M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7DA3H (0.3M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7DA6H (0.6M) – Model | 2L-7DA6H |
| 2L-7DA6H (0.6M) – Cable length | 0.6 m |
| 2L-7DA6H (0.6M) – Video connectors | 19-pin HDMI male to male |
| 2L-7DA6H (0.6M) – Maximum video resolution | 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4) |
| 2L-7DA6H (0.6M) – HDCP compliance | 2.2 |
| 2L-7DA6H (0.6M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7DA6H (0.6M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7DA6H (0.6M) – Conductor | 30 AWG tinned copper |
| 2L-7DA6H (0.6M) – Connector plating | Gold |
| 2L-7DA6H (0.6M) – Outer diameter | 6.0 ± 0.15 mm |
| 2L-7DA6H (0.6M) – Cable colour | Black |
| 2L-7DA6H (0.6M) – Shield | Aluminum foil |
| 2L-7DA6H (0.6M) – Jacket | PVC |
| 2L-7DA6H (0.6M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7DA6H (0.6M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7DA6H (0.6M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D02H-1 (2M) – Model | 2L-7D02H-1 |
| 2L-7D02H-1 (2M) – Cable length | 2 m |
| 2L-7D02H-1 (2M) – Video connectors | 19-pin HDMI male to male |
| 2L-7D02H-1 (2M) – Maximum video resolution | 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4) |
| 2L-7D02H-1 (2M) – HDCP compliance | 2.2 |
| 2L-7D02H-1 (2M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7D02H-1 (2M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7D02H-1 (2M) – Conductor | 30 AWG tinned copper |
| 2L-7D02H-1 (2M) – Connector plating | Gold |
| 2L-7D02H-1 (2M) – Outer diameter | 6.0 ± 0.20 mm |
| 2L-7D02H-1 (2M) – Cable colour | Black |
| 2L-7D02H-1 (2M) – Shield | Aluminum foil |
| 2L-7D02H-1 (2M) – Jacket | PVC |
| 2L-7D02H-1 (2M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7D02H-1 (2M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7D02H-1 (2M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D02H-1 (2M) – HDR | Supported |
| 2L-7D02H-1 (2M) – Maximum documented transmission rate | 18 Gbps |
| 2L-7D02H-1 (2M) – Compliance | RoHS |
| 2L-7D02H-1 (2M) – Included item | 1 x 2L-7D02H-1 2m HDMI cable with Ethernet |
| 2L-7D03H (3M) – Model | 2L-7D03H |
| 2L-7D03H (3M) – Cable length | 3 m |
| 2L-7D03H (3M) – Video connectors | 19-pin HDMI male to male |
| 2L-7D03H (3M) – Maximum video resolution | 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4) |
| 2L-7D03H (3M) – HDCP compliance | 2.2 |
| 2L-7D03H (3M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7D03H (3M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7D03H (3M) – Conductor | 30 AWG tinned copper |
| 2L-7D03H (3M) – Connector plating | Gold |
| 2L-7D03H (3M) – Outer diameter | 6.0 ± 0.20 mm |
| 2L-7D03H (3M) – Cable colour | Black |
| 2L-7D03H (3M) – Shield | Aluminum foil |
| 2L-7D03H (3M) – Jacket | PVC |
| 2L-7D03H (3M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7D03H (3M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7D03H (3M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D03H (3M) – HDR | Supported |
| 2L-7D03H (3M) – Maximum documented transmission rate | 18 Gbps |
| 2L-7D03H (3M) – Compliance | RoHS |
| 2L-7D03H (3M) – Included item | 1 x 2L-7D03H 3m HDMI cable with Ethernet |
| 2L-7D05H (5M) – Model | 2L-7D05H |
| 2L-7D05H (5M) – Cable length | 5 m |
| 2L-7D05H (5M) – Video connectors | 19-pin HDMI male to male |
| 2L-7D05H (5M) – Maximum video resolution | 4096 x 2160 at 30 Hz |
| 2L-7D05H (5M) – HDCP compliance | 1.4 |
| 2L-7D05H (5M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7D05H (5M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7D05H (5M) – Conductor | 30 AWG tinned copper |
| 2L-7D05H (5M) – Connector plating | Gold |
| 2L-7D05H (5M) – Outer diameter | 6.0 ± 0.20 mm |
| 2L-7D05H (5M) – Cable colour | Black |
| 2L-7D05H (5M) – Shield | Aluminum foil |
| 2L-7D05H (5M) – Jacket | PVC |
| 2L-7D05H (5M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7D05H (5M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7D05H (5M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D05H (5M) – Compliance | RoHS |
| 2L-7D05H (5M) – Included item | 1 x 2L-7D05H 5m HDMI cable with Ethernet |
| 2L-7D10H (10M) – Model | 2L-7D10H |
| 2L-7D10H (10M) – Cable length | 10 m |
| 2L-7D10H (10M) – Video connectors | 19-pin HDMI male to male |
| 2L-7D10H (10M) – Maximum video resolution | 4096 x 2160 at 30 Hz |
| 2L-7D10H (10M) – HDCP compliance | 1.4 |
| 2L-7D10H (10M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7D10H (10M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7D10H (10M) – Conductor | 26 AWG tinned copper |
| 2L-7D10H (10M) – Connector plating | Gold |
| 2L-7D10H (10M) – Outer diameter | 8.0 ± 0.20 mm |
| 2L-7D10H (10M) – Cable colour | Black |
| 2L-7D10H (10M) – Shield | Aluminum foil |
| 2L-7D10H (10M) – Jacket | PVC |
| 2L-7D10H (10M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7D10H (10M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7D10H (10M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D10H (10M) – Compliance | RoHS |
| 2L-7D10H (10M) – Included item | 1 x 2L-7D10H 10m HDMI cable with Ethernet |
| 2L-7D15H (15M) – Model | 2L-7D15H |
| 2L-7D15H (15M) – Cable length | 15 m |
| 2L-7D15H (15M) – Video connectors | 19-pin HDMI male to male |
| 2L-7D15H (15M) – Maximum video resolution | 4096 x 2160 at 30 Hz |
| 2L-7D15H (15M) – HDCP compliance | 1.4 |
| 2L-7D15H (15M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7D15H (15M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7D15H (15M) – Conductor | 24 AWG tinned copper |
| 2L-7D15H (15M) – Connector plating | Gold |
| 2L-7D15H (15M) – Outer diameter | 10.0 ± 0.20 mm |
| 2L-7D15H (15M) – Cable colour | Black |
| 2L-7D15H (15M) – Shield | Aluminum foil |
| 2L-7D15H (15M) – Jacket | PVC |
| 2L-7D15H (15M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7D15H (15M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7D15H (15M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D15H (15M) – Compliance | RoHS |
| 2L-7D15H (15M) – Included item | 1 x 2L-7D15H 15m HDMI cable with Ethernet |
| 2L-7D20H (20M) – Model | 2L-7D20H |
| 2L-7D20H (20M) – Cable length | 20 m |
| 2L-7D20H (20M) – Video connectors | 19-pin HDMI male to male |
| 2L-7D20H (20M) – Maximum video resolution | 4096 x 2160 at 30 Hz |
| 2L-7D20H (20M) – HDCP compliance | 1.4 |
| 2L-7D20H (20M) – HDMI features | 3D, Deep Color, 4K and HDMI Ethernet Channel |
| 2L-7D20H (20M) – Ethernet requirement | Both connected devices must support HDMI Ethernet Channel |
| 2L-7D20H (20M) – Conductor | 26 AWG tinned copper |
| 2L-7D20H (20M) – Connector plating | Gold |
| 2L-7D20H (20M) – Outer diameter | 10.0 ± 0.20 mm |
| 2L-7D20H (20M) – Cable colour | Black |
| 2L-7D20H (20M) – Shield | Aluminum foil |
| 2L-7D20H (20M) – Jacket | PVC |
| 2L-7D20H (20M) – Temperature rating (manufacturer specification) | 80°C; no operating range supplied |
| 2L-7D20H (20M) – Ratings | UL VW-1 (flame rating), CSA |
| 2L-7D20H (20M) – Flex test | 100 swings through ±90° at 13 cycles/minute |
| 2L-7D20H (20M) – Compliance | RoHS |
| 2L-7D20H (20M) – Included item | 1 x 2L-7D20H 20m HDMI cable with Ethernet |
| 2L-7D20H (20M) – Cable operation | Active, unidirectional |
| 2L-7D20H (20M) – Installation direction | Connect the source and display ends to their respective equipment |
Key Features
- Choose eight lengths from 0.3m to 20m with model-specific performance clearly shown.
- The 0.3m, 0.6m, 2m and 3m options support True 4K at 60 Hz; the 5m to 20m options support 4K at 30 Hz.
- Gold-plated plugs and tinned-copper conductors provide a dependable connection path.
- HDMI Ethernet Channel supports networking when both linked devices are HEC-enabled.
- The 2m and 3m models add documented HDR support; the active 20m model serves directional installations.
Product Information
Select Length to choose the required ATEN HDMI male-to-male cable. Each option carries digital audio and video and provides HDMI Ethernet Channel support for compatible devices. Short options suit adjacent equipment, while longer choices accommodate more distant source and display locations.
The 0.3m 2L-7DA3H, 0.6m 2L-7DA6H, 2m 2L-7D02H-1 and 3m 2L-7D03H support True 4K at 60 Hz with 4:4:4 colour and HDCP 2.2. HDR and 18 Gbps transmission are documented for the 2m and 3m models. The 5m 2L-7D05H, 10m 2L-7D10H, 15m 2L-7D15H and 20m 2L-7D20H support up to 4096 x 2160 at 30 Hz and HDCP 1.4. Do not substitute the specifications of 2L-7D05H-1 for the supplied 2L-7D05H.
The 20m 2L-7D20H is active and unidirectional according to the official datasheet. Follow the source/display orientation when installing it. The other options should be selected on their own documented specifications; cable thickness and conductor gauge vary across lengths.
Video resolution, colour format, audio and HDCP operation depend on all equipment in the chain. HDMI Ethernet Channel works only when both connected devices support it. Displays, sources, switches and additional adapters are separate. For 2m through 20m the official package list specifies one cable; no separate accessory bundle is documented for the 0.3m and 0.6m models.
