Specifications
| Video Input / Interfaces | 1 x HDB-15 Female (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Output / Interfaces | 1 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video / Max. Pixel Clock | 165 MHz |
| Video / Max. Resolution | Up to 1080p |
| Audio / Input | 1 x Mini Stereo Jack Female (Green) |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5V:2.62W:12BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 50 ºC |
| Environmental / Storage Temperature | -20 – 60 ºC |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.16 kg ( 0.35 lb ) |
| Physical Properties / Dimensions (L x W x H) | 7.90 x 7.81 x 2.44 cm (3.11 x 3.07 x 0.96 in.) |
| Physical Properties / Carton Lot | 20 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |

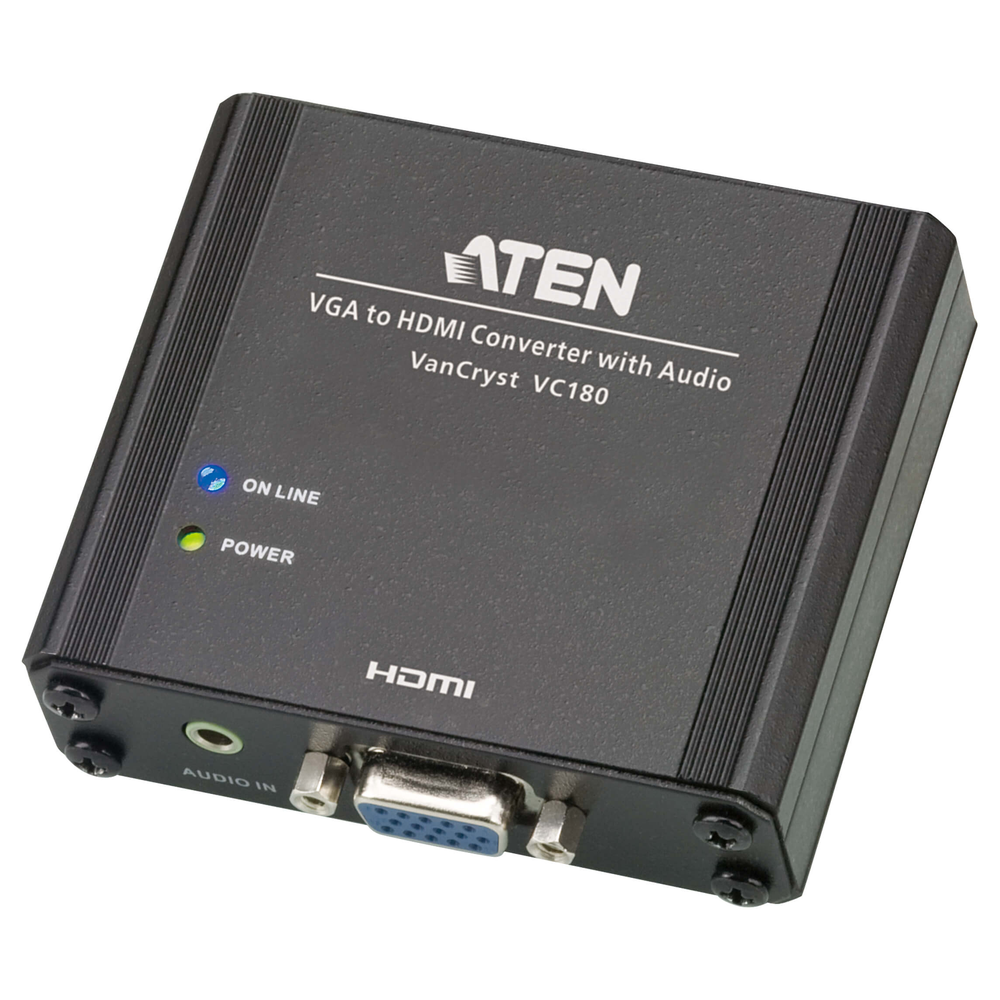

| Included accessories | 1x VC180 VGA to HDMI Converter with Audio; 1x Power Adapter; 1x User Instructions |
Key Features
- Convert VGA video and analogue stereo audio into HDMI.
- Support documented Full HD and PC display resolutions.
- Store screen-position adjustments for individual output resolutions.
- Install without additional software.
- Use VGA-port power when sufficient, with the included adapter as an alternative.
Product Information
Connect a VGA source to a digital display using a compact active converter. This provides a route for older analogue computers into a compatible presentation or desktop display installation.
Conversion is one-way from VGA to the documented digital output. Some sources cannot supply enough power through VGA and require the included power adapter. Select a timing supported by the display. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VC180 VGA to HDMI Converter with Audio; 1x Power Adapter; 1x User Instructions.
