Specifications
| Specification | Details |
|---|---|

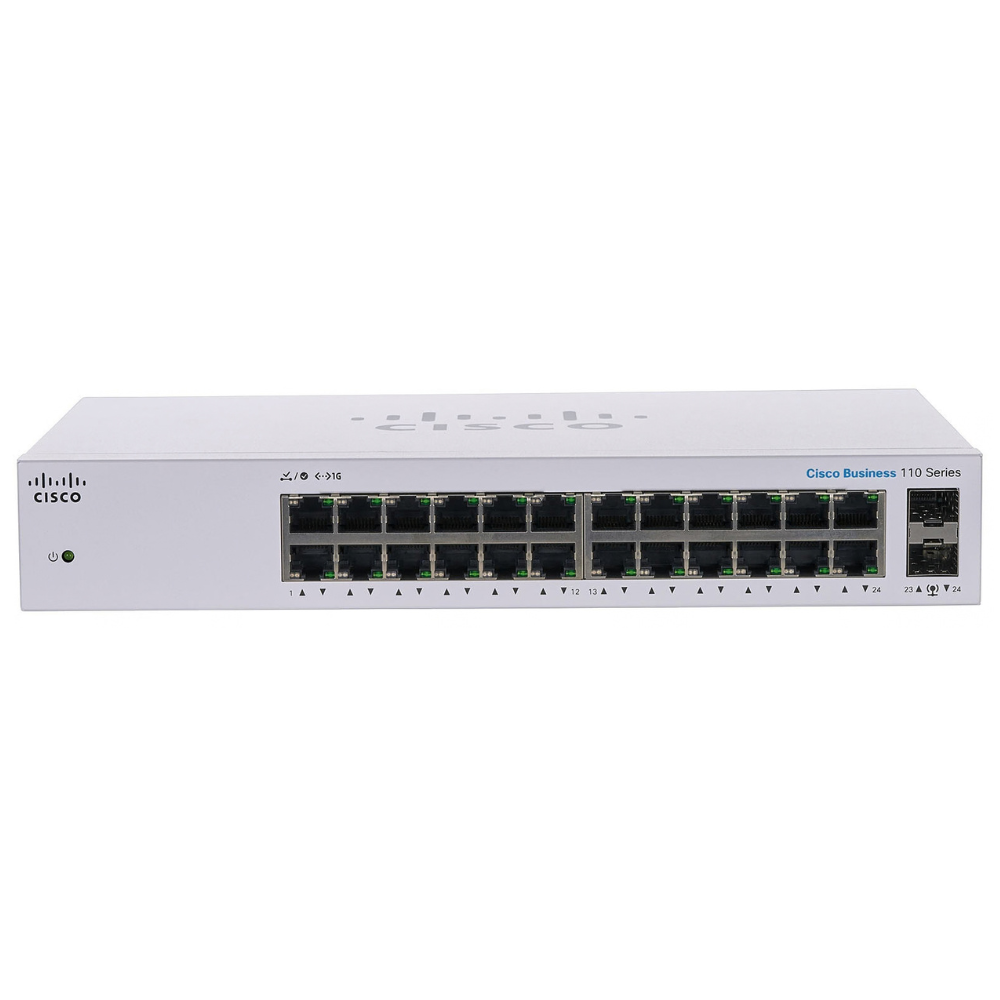

| Brand | Cisco |
| Series | Cisco Business 110 Series |
| Model | CBS110-24T |
| Product Code | CBS110-24T-EU |
| Product Type | Unmanaged Gigabit Ethernet Switch |
| Ethernet Speed | 10/100/1000 Mbps |
| Total System Ports | 26 Gigabit Ethernet |
| RJ45 Interfaces | 26 × Gigabit Ethernet |
| SFP Interfaces | 2 × 1G SFP Combo / Shared |
| SFP Configuration | Shared with 2 Gigabit Ethernet Ports |
| Switching Capacity | 48 Gbps |
| Forwarding Rate | 35.7 Mpps |
| MAC Address Table | 8K Addresses |
| Packet Buffer | 2 Mbit |
| Jumbo Frame | Up to 9216 Bytes |
| Quality of Service | IEEE 802.1p |
| QoS Queues | 4 Hardware Queues |
| Flow Control | IEEE 802.3x |
| Auto MDI/MDI-X | Supported |
| Loop Detection | Supported |
| Cable Diagnostics | Supported |
| Energy Efficient Ethernet | IEEE 802.3az |
| PoE | No |
| CPU | 400 MHz ARM |
| CPU Memory | 64 MB |
| Flash Memory | 8 MB |
| Cooling | Fanless |
| Cabling | Cat5e or Better |
| Installation | Desktop / Wall Mount / Rack Mount |
| Security | Kensington Lock Slot |
| Power Supply | Internal, Universal |
| Input Power | 100–240V AC, 50–60Hz |
| Maximum System Power | 17.79W at 110V / 17.49W at 220V |
| Dimensions | 279 × 170 × 44 mm |
| Weight | 1.45 kg |
| Operating Temperature | 0°C to 50°C |
Key Features
- Cisco Business 110 Series unmanaged switch
- 24-port Gigabit Ethernet class switch
- 2 × 1G SFP shared combo interfaces
- 10/100/1000 Mbps Ethernet connectivity
- 48 Gbps switching capacity
- 35.7 Mpps forwarding performance
- Wire-speed, non-blocking architecture
- 8K MAC address table
- 2 Mbit packet buffer
- Jumbo frames up to 9216 bytes
- IEEE 802.1p Quality of Service
- 4 hardware QoS queues
- Priority Queuing and Weighted Round-Robin
- Automatic MDI/MDI-X
- IEEE 802.3x flow control
- Built-in loop detection
- Built-in cable diagnostics
- IEEE 802.3az Energy Efficient Ethernet
- Fanless operation
- Desktop, wall-mount or rack-mount installation
- Internal universal power supply
- Kensington security lock slot
- No PoE support
