Cisco (USA) 861 Ethernet Security Router – CISCO861-K9

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

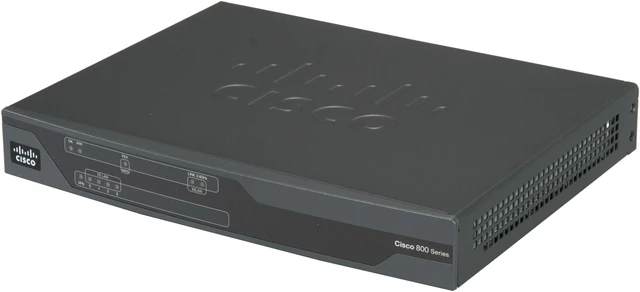

Cisco 861 Ethernet security router CISCO861-K9

Key features

4 LAN + 1 WAN

Ethernet interfaces

Cisco

Brand

Great Customer Service

Richcom Technology

Cisco (USA) 861 Ethernet Security Router – CISCO861-K9

The Cisco (USA) CISCO861-K9 is a 861 ethernet security router featuring 1 × 10/100Mbps WAN port and 4 × 10/100Mbps managed LAN ports. It delivers up to 5 IPsec VPN tunnels, with VLAN support, stateful firewall, hardware-assisted encryption, QoS and Cisco IOS administration.

රු 51,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters / origin Cisco / USA
Model CISCO861-K9
Model type Cisco 861 non-wireless Ethernet security router
WAN 1 × 10/100Mbps Fast Ethernet
LAN 4 × 10/100Mbps managed Ethernet ports; auto-MDI/MDI-X
Console / auxiliary 1 × RJ45 CON/AUX port
Wireless / DSL No integrated wireless or DSL modem in CISCO861-K9
VLAN 2 IEEE 802.1Q VLANs
LAN functions SPAN, storm control and Smartports
VPN 5 IPsec tunnels; hardware-accelerated DES/3DES/AES; Easy VPN client/server; NAT transparency
Firewall Zone-based policy and stateful inspection
Routing / IP RIPv1/v2, GRE/mGRE, CEF, NAT, DHCP server/relay/client, DNS proxy and ACLs
QoS WFQ and class-based WFQ
Management Cisco IOS CLI, SSH, SNMPv3, HTTP, RADIUS and TACACS+; legacy Cisco configuration tools
Memory 256MB DRAM; 128MB flash per official system table
Power supply External 100–240V AC, 50–60Hz input; 12V DC output; 60W maximum output rating
Dimensions non-wireless (W × D × H) 325 × 249 × 48mm including feet; 44mm high without feet
Operating temperature 0–40°C
Storage temperature −20–65°C
Operating humidity 10–85% RH, non-condensing
Storage humidity 5–95% RH, non-condensing

Key Features

  • Connect a small site through a Fast Ethernet WAN uplink.
  • Attach four wired LAN devices with managed switching functions.
  • Separate supported LAN traffic with two VLANs.
  • Configure up to five IPsec tunnels for compatible networks.
  • Manage routing and security through Cisco IOS tools.

Product Information

CISCO861-K9 is the non-wireless Ethernet model in the Cisco 860 Series. Its WAN interface uses Fast Ethernet, and its integrated four-port LAN switch supports two VLANs. The device includes firewall and IPsec features under the documented Advanced Security software feature set.

Use it with a suitable upstream Ethernet connection and matching external power supply. This model has no built-in Wi-Fi or DSL modem; capabilities described for 861W and 867 variants are not applied here. The official datasheet gives a 2.5kg maximum for the series rather than a verified exact-model net weight, so Shipping Weight remains blank. Confirm software availability and interoperability for this legacy platform.

Explore Router in Sri Lanka (Updated 2024).

Weight 2.5 kg
