Specifications
| Brand headquarters / origin | Cisco / USA |
|---|---|
| Model | SF95D-08-AS |
| Series | Cisco Small Business 95 |
| Ports | 8 × 10BASE-T/100BASE-TX RJ45; auto-negotiation and auto-MDI/MDI-X |
| Switching capacity | 1.6Gbps |
| Forwarding method | Store-and-forward |
| SFP / PoE | No SFP slots; no PoE output |
| Management | Unmanaged |
| Jumbo frame support | 9216 bytes per official 95 Series datasheet |
| QoS | 802.1p priority; hardware queues and weighted round-robin |
| Diagnostics | Loop detection and cable diagnostics |
| Traffic handling | Head-of-line blocking prevention; flow control |
| Power input | 12V DC, 500mA |
| Cooling | Fanless |
| Dimensions (W × D × H) | 160 × 90 × 30mm |
| Net weight | 0.45kg |
| Operating temperature | 0–40°C |
| Storage temperature | −20–70°C |
| Operating humidity | 10–90% RH, non-condensing |
| Storage humidity | 5–90% RH, non-condensing |
| Mounting | Desktop; wall-mount option for desktop series |
| Physical security | Kensington lock slot |
| Included | Switch, power adapter and mounting hardware per series datasheet |
| Regional suffix | AS: most Asian markets including Indonesia, Philippines, Vietnam and Thailand |
Key Features
- Connect eight Fast Ethernet devices without software setup.
- Prioritize delay-sensitive traffic using built-in QoS.
- Identify common cable and loop problems with automatic diagnostics.
- Place the fanless enclosure near a desk without fan noise.
- Use automatic link negotiation and cable-polarity detection.
Product Information

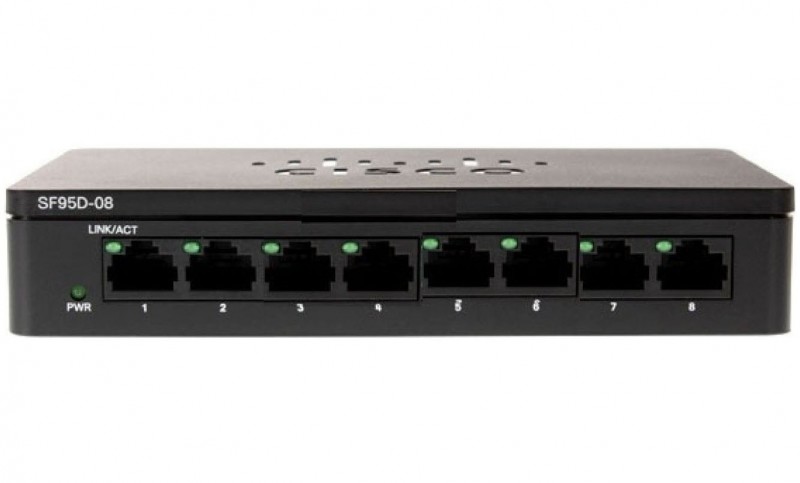

SF95D-08-AS is the eight-port Fast Ethernet member of Cisco’s 95 Series. Each port supports 10 or 100Mbps; this SF model is not a Gigabit switch. Its unmanaged design automatically negotiates links and handles ordinary switching without a web management interface.
The 1.6Gbps switching capacity, QoS and basic diagnostics suit simple wired networks using compatible Ethernet equipment. Supply the unit through the correct 12V DC adapter. It does not provide PoE or optical uplinks. The AS suffix identifies a regional order code.
