Cisco (USA) 9dBi Outdoor Omnidirectional N-Type Antenna – HGA9N

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

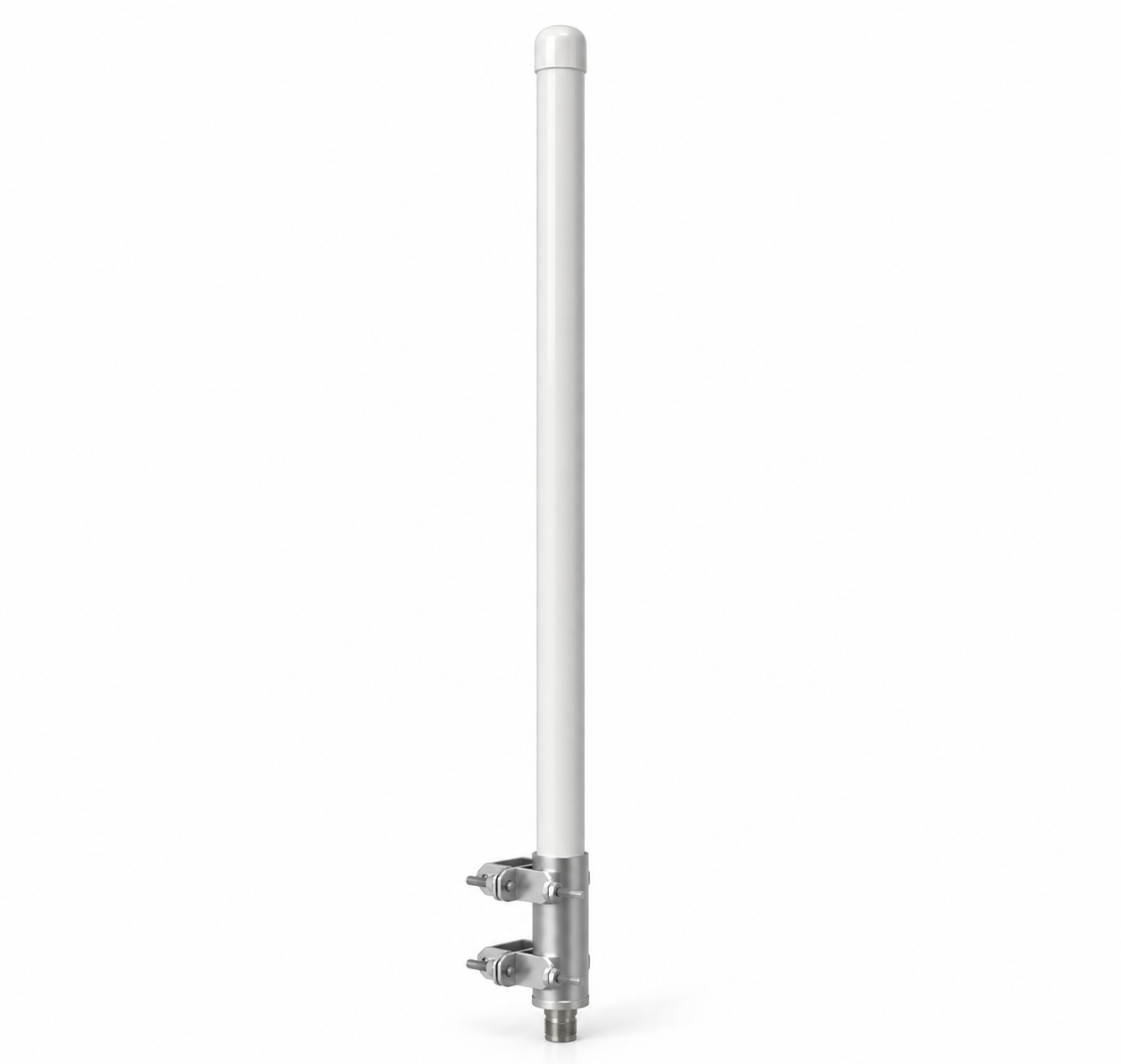

Cisco HGA9N 9dBi outdoor omnidirectional N-type antenna specification illustration

Key features

1 × N-type female

Connector

Cisco

Brand

Great Customer Service

Richcom Technology

Cisco (USA) 9dBi Outdoor Omnidirectional N-Type Antenna – HGA9N

The Cisco (USA) HGA9N is a 9dbi outdoor omnidirectional n-type antenna featuring 1 N-type female connector for 50-ohm 2.4GHz coaxial systems. It delivers 9dBi peak antenna gain, with 360° horizontal coverage, vertical polarization, weatherproof housing and included mounting hardware.

රු 47,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters / origin Cisco / USA
Model HGA9N
Frequency range 2400–2500MHz
Peak gain 9dBi
Connector 1 × N-type female
Impedance 50 ohms
VSWR 1.92:1 maximum
Polarization Linear, vertical
Horizontal / vertical HPBW 360° / 11°
Maximum RF power 4W
Housing Weatherproof; NEMA-rated enclosure per datasheet, specific NEMA class not stated
Dimensions (W × H × D) 75 × 625 × 56mm
Net weight 0.2kg
Operating / storage temperature −30–80°C
Operating / storage humidity 5–95% RH, non-condensing
Documented host Cisco WAP200E access point
Included Antenna body, cable, lightning protector, mounting kit, user-guide CD and quick installation guide

Key Features

  • Extend a compatible 2.4GHz outdoor wireless installation.
  • Cover directions around the antenna with a 360° horizontal pattern.
  • Use the N-type connector with a matching 50-ohm cable system.
  • Install with the documented mounting kit and lightning protector.
  • Improve a suitable link without antenna software configuration.

Product Information

HGA9N is a passive outdoor antenna with 9dBi peak gain across 2400–2500MHz. Its horizontal pattern is omnidirectional, while the narrow 11° vertical beamwidth makes mounting height and alignment important. It uses an N-type female connector and is documented for the Cisco WAP200E access point.

The antenna does not create a wireless network by itself and is not a 5GHz antenna. Use a compatible radio and correctly matched coaxial connection, and install the supplied lightning protection and grounding as directed by the manufacturer. Real coverage depends on cable loss, radio configuration, obstacles and client antennas; historical ideal-line-of-sight range examples are not a coverage guarantee.

Explore Network Accessories Buying Guide in Sri Lanka.

Weight 0.2 kg
