Cisco (USA) SA 500 Series Gigabit VPN Security Appliance – SA520-K9

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

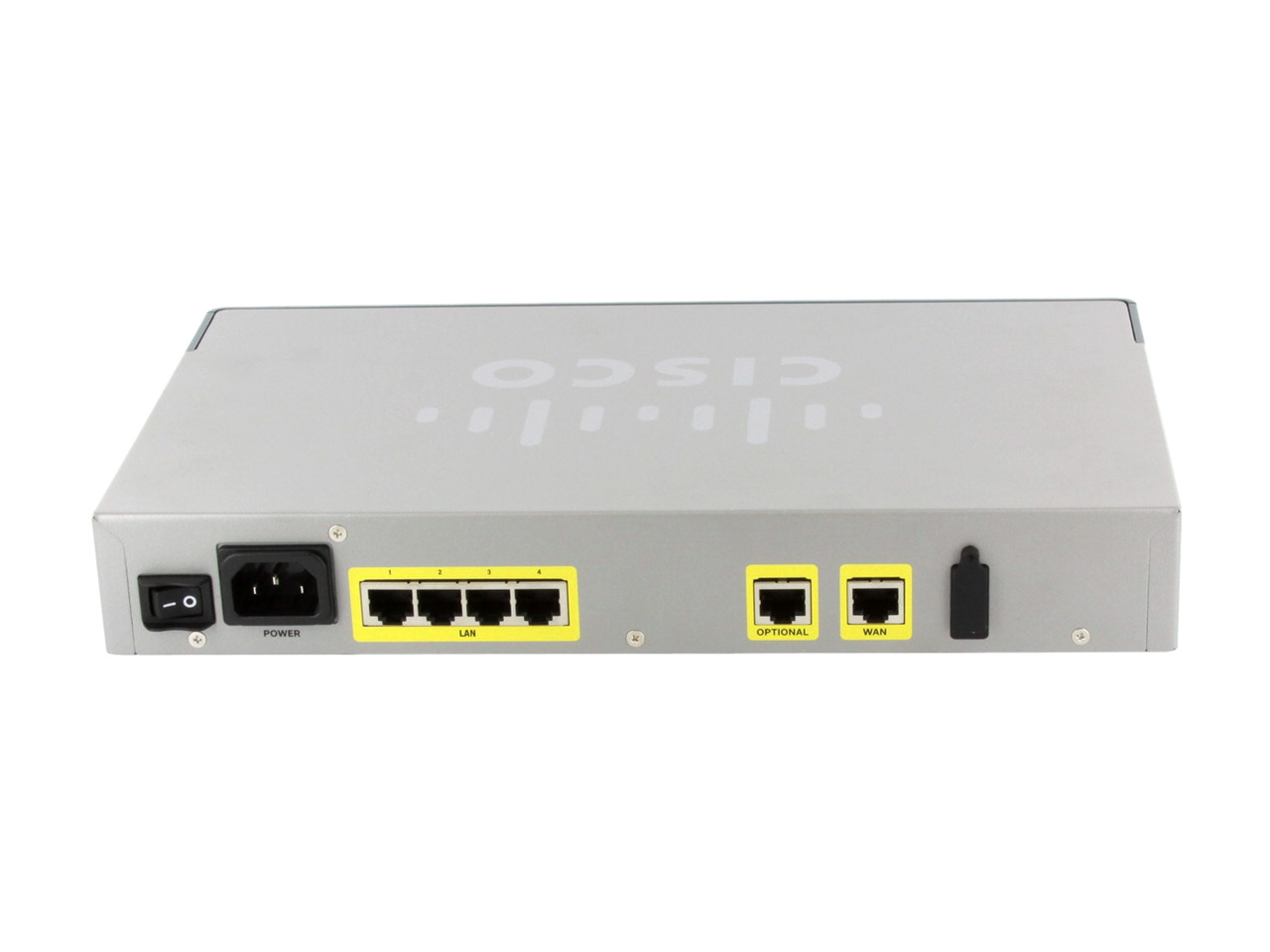

Cisco SA520-K9 security appliance showing rear network ports

Key features

6 × Gigabit

Ethernet interfaces

Cisco

Brand

Great Customer Service

Richcom Technology

Cisco (USA) SA 500 Series Gigabit VPN Security Appliance – SA520-K9

The Cisco (USA) SA520-K9 is a sa 500 series gigabit vpn security appliance featuring 4 × Gigabit LAN ports, 1 × Gigabit WAN port and 1 × configurable Gigabit LAN/WAN/DMZ port. It delivers up to 200Mbps stateful firewall throughput, with IPsec VPN, VLANs, static/RIP routing, configurable dual-WAN operation and SPI firewall rules.

රු 82,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters / origin Cisco / USA
Model SA520-K9
Series / model SA 500 Series; non-wireless SA520-K9
Ethernet interfaces 4 LAN, 1 WAN and 1 optional LAN/WAN/DMZ; all 10/100/1000Mbps
USB 1 × USB 2.0
Firewall throughput 200Mbps stateful packet inspection, aggregate bidirectional laboratory maximum
VPN throughput 65Mbps 3DES/AES, laboratory maximum
Connections / rules 15,000 connections; 100 rules
IPsec tunnels 50 maximum
SSL VPN licensing Historically 2 seats included; optional license to 25; current license availability unverified
Routing Static, RIPv1/v2
VLANs 16
WAN resilience Load balance/failover using configurable port as second WAN
VPN functions Dead peer detection, NAT traversal and NetBIOS broadcast over VPN
Wireless No integrated Wi-Fi; SA520W is a separate model
Input power Internal supply: 90–264V AC, 47–63Hz
Dimensions (H × W × D) 44 × 308 × 180mm
Product weight with internal supply 2.23kg
Mounting 1RU; 19-inch rack mountable
Operating temperature 0–40°C
Storage temperature −20–70°C
Optional services Historical IPS and ProtectLink features require appropriate licenses/subscriptions; not promised as active or included

Key Features

  • Combine wired routing and firewall policy in one appliance.
  • Connect through Gigabit LAN and WAN interfaces.
  • Configure compatible IPsec connections within documented tunnel limits.
  • Use the optional Ethernet port for a second WAN or DMZ.
  • Separate supported network segments with VLANs.

Product Information

SA520-K9 is the non-wireless member of the Cisco SA 500 security-appliance family. It combines Gigabit Ethernet interfaces, a stateful firewall and VPN capabilities. Manufacturer test figures of 200Mbps firewall and 65Mbps encrypted VPN throughput are laboratory maxima; deployed performance depends on configuration and traffic.

The configurable sixth Ethernet port can serve LAN, WAN or DMZ duties. Historical SSL VPN expansion, IPS and ProtectLink services require the appropriate license and service support, and this listing does not promise current subscription availability or security updates. Confirm the intended legacy deployment, licenses and accessories before installation. Power is supplied through the appliance’s internal AC power supply.

Explore Router in Sri Lanka (Updated 2024).

Weight 2.23 kg
