Specifications
| Brand | Clever (China) |
|---|---|
| Model | PZID-130-2004 |
| Series | MPDU Pro D Series |
| Function type | Outlet metered and switched |
| Product type | 0U managed rack PDU |
| Rated input | 230VAC, 32A, 50/60Hz |
| Input plug | IEC 60309 32A |
| Power cord | 3 m cord |
| Outlets | 20 x IEC 320 C13 + 4 x IEC 320 C19 |
| Outlet count | 24 ways |
| Output voltage | 100-240VAC |
| Output current | C13 10A, C19 16A |
| Protection | 2 x 1P 16A hydraulic magnetic circuit breakers |
| Dimensions | 1829 x 56 x 56 mm |
| Operating temperature | 0 to 60 degrees C |
| Operating humidity | 5 to 95% RH, non-condensing |
| Verified product weight | Not verified |
| Included accessories | Attached 3 m cord with IEC 60309 plug as specified |
Key Features
- D Series MPDU Pro combines outlet metering and outlet switching for detailed rack power control.
- 20 C13 and 4 C19 outlets support high-density mixed IT equipment loads.
- 32A IEC 60309 input and dual hydraulic magnetic breakers suit data center rack power feeds.
- Management features include monitoring, alarm thresholds, logs and network services when configured.
- 0U vertical chassis preserves rack space while providing full-length power distribution.
Product Information

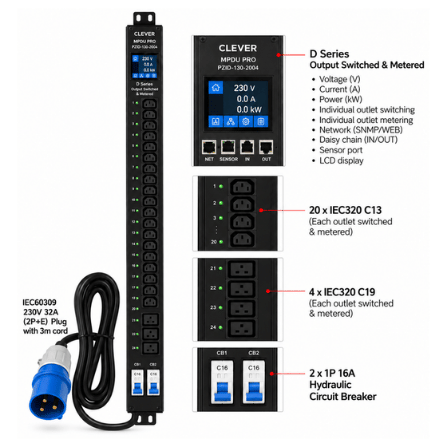

The Clever PZID-130-2004 is an MPDU Pro D Series managed rack PDU for data center cabinets requiring both outlet-level metering and outlet switching. It helps administrators monitor power usage, control outlets and manage dense rack loads from a central power platform.
The official MPDU Pro 130-2004 configuration is listed with 230VAC 32A input, 20 IEC C13 outlets, 4 IEC C19 outlets, IEC 60309 input plug, 3 m cord, 2 x 1P 16A hydraulic magnetic circuit breakers and 1829 x 56 x 56 mm chassis dimensions. Optional sensors and advanced network functions should be selected according to the final deployment.
