Technical Specifications

General Information

• Part Number: 2102-01013

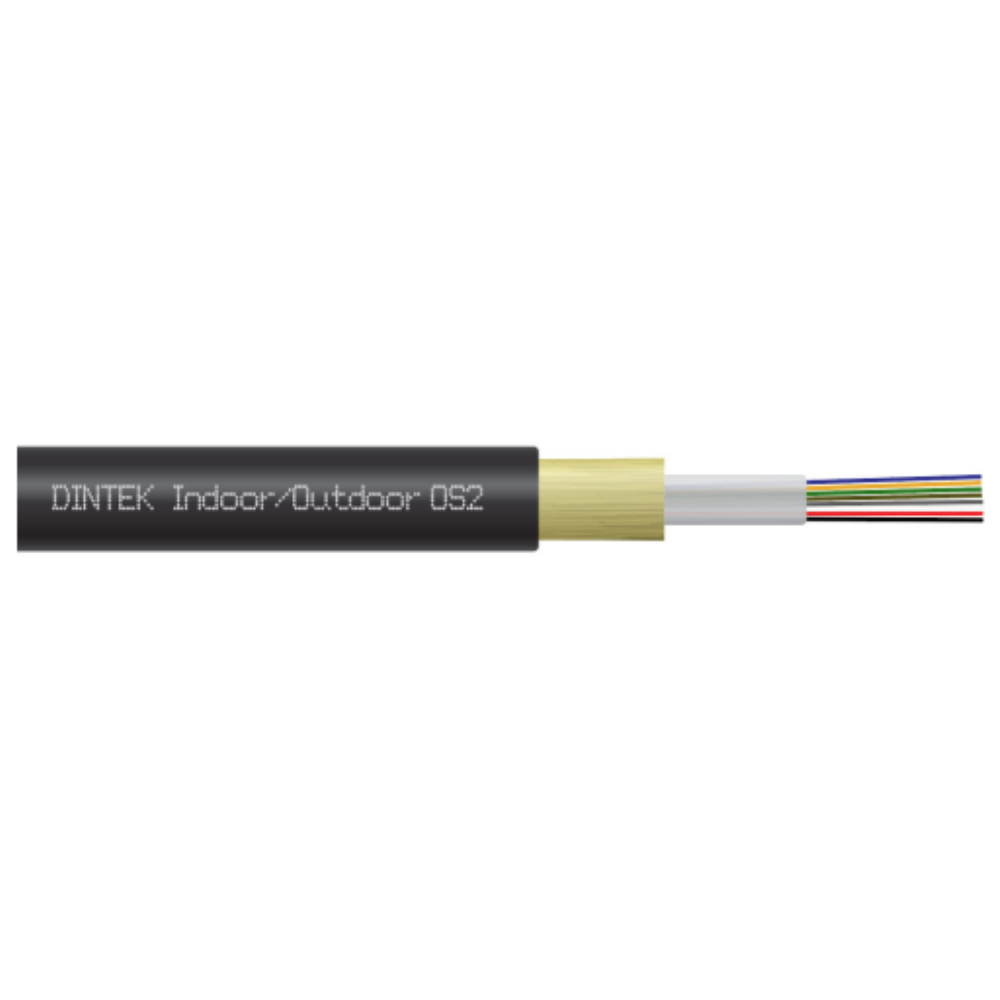

• Product Description: Light-LINKS™ OS2 4 Core Indoor/Outdoor Fiber Optic Cable

• Fiber Count: 4 Fibers

• Category: OS2 (Single-Mode)

• Fiber Type: 9/125 µm (G.652D)

Construction Details

• Outer Jacket Material: LSZH

• Primary Buffer Diameter: 250µm ±50µm

• Secondary Buffer Diameter: 900µm ±50µm

• Cable Reinforcement: Aramid Yarn

• Loose Tube Material: PBT

• Loose Tube Diameter: 2.8mm

• Cable Diameter: 6.2mm ±0.4mm

• Jacket Thickness: 1.5mm

Optical Performance (OS2 – G.652D)

• Attenuation (@1310nm): ≤ 0.36 dB/km (Typical), ≤ 0.5 dB/km (Max)

• Attenuation (@1550nm): ≤ 0.22 dB/km (Typical), ≤ 0.4 dB/km (Max)

Mechanical & Environmental

• Tensile Load (Installation): 1000 N

• Tensile Load (Operation): 400 N

• Minimum Bend Radius (Installation): 20x Cable Diameter

• Minimum Bend Radius (Operation): 10x Cable Diameter

• Installation Temperature: -20°C to +60°C

• Operating Temperature: -20°C to +60°C

Standards & Compliance

• IEC 60794

• IEC 60332-1

Applications

• Inter-building Connectivity

• Backbone Premise Pathways

• Drop Ceiling Installations

• 10Gbps / 40Gbps / 100Gbps Ethernet

• 550MHz Broadband Video

• SAN, Data Center

• Indoor Any-Purpose Cable Distribution
