Technical Specifications

General Information

• Part Number: 2103-04667

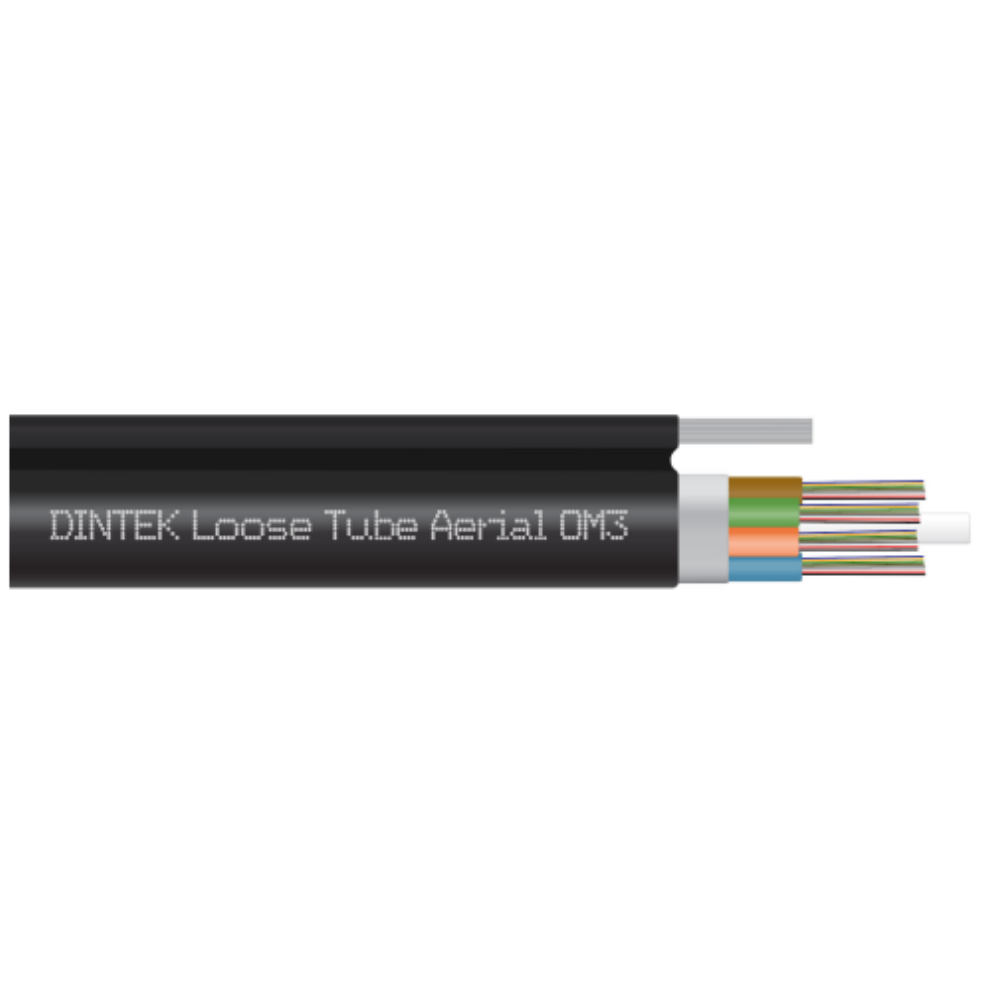

• Product Description: 12 Core Loose Tube Aerial OM3 Fiber

• Fiber Count: 12 Fibers

• Category: OM3 Multimode

• Fiber Type: 50/125 µm

Construction Details

• Cable Design: Loose Tube

• Outer Jacket Material: PE (Polyethylene)

• Jacket Thickness: Average 1.8 mm

• Armor Type: APL (Light Armor)

• Internal Strength Member: Steel Wire (1x Central Rod, approx. 1.5mm)

• External Strength Member: Stranded Steel Wires (7x 1.2mm, approx. 5mm)

• Loose Tube Material: PBT

• Primary Buffer Diameter: 250µm ±5µm

• Cable Dimensions: Approx. 5.6 x 9.2 x 16.8 mm

Optical Performance (OM3)

• Attenuation (@850nm): ≤ 3.3 dB/km

• Attenuation (@1300nm): ≤ 1.2 dB/km

• Bandwidth (@850nm): ≥ 1500 MHz·km

• Bandwidth (@1300nm): ≥ 500 MHz·km

Mechanical & Environmental

• Tensile Load (Installation): 1500 N

• Tensile Load (Operation): 600 N

• Crush Resistance (Installation): 1000 N / 100mm

• Crush Resistance (Operation): 300 N / 100mm

• Minimum Bend Radius (Installation): 20x Cable Diameter

• Minimum Bend Radius (Operation): 10x Cable Diameter

• Installation Temperature: -40°C to +70°C

• Operating Temperature: -40°C to +70°C

Standards & Compliance

• Bellcore GR-20-CORE

• ISO/IEC 11801

• ANSI/TIA-568.2-D

• CENELEC EN 50173

• IEC 60794-1

Applications

• Aerial Installations (Pole-to-Pole)

• Outside Plant (OSP) Backbone Networks

• LAN/MAN/WAN Infrastructure

• 10/40/100 Gigabit Ethernet

• Data Center Interconnects (SAN)

• Light Industrial Environments

• Telecommunications Distribution
