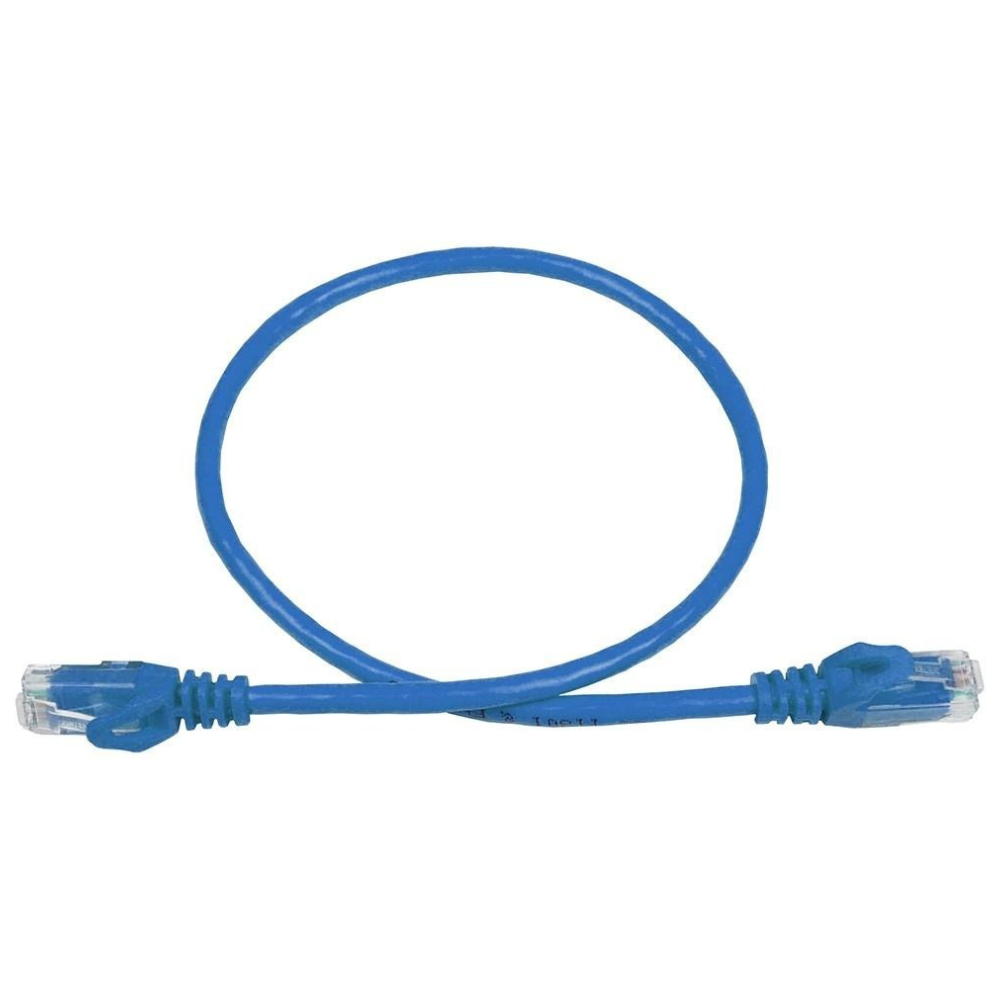

Dintek (Taiwan) Cat 6 UTP 24AWG Full Copper Blue Patch Cord 0.5M 1M 2M 3M 5M 10M price in srilanka

Key features

Cat 6

Cable category

6.0 ± 0.2 mm

Diameter

24 AWG

Conductor gauge

Blue

Jacket colour

Dintek (Taiwan) Cat 6 UTP 24AWG Full Copper Blue Patch Cord

  • Internal PE Divider: Ensures consistent pair separation to maximize data throughput and reduce crosstalk.

  • High Flexibility: 24AWG stranded copper wire provides excellent flexibility for easy installation and routing.

  • Performance Certified: Fully tested to meet ANSI/TIA-568-2.D Cat.6 channel requirements.

  • Color-Coded Management: Blue jacket aids in neat cable organization, complying with TIA-606 standards.

  • High-Speed Ready: Supports up to 10 Gigabit Ethernet, 155/622 Mbps ATM, and 550 MHz broadband video.

Bulk Orders only

PLEASE SELECT YOUR LENGTH

Price range: රු 2,500.00 through රු 10,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Technical Specifications:

Category Specification
Cable Type U/UTP (Unshielded Twisted Pair)
Category 6
Internal Feature PE Cross Divider
Jacket Material PVC, Flame Retardant CM Grade
Jacket Color Blue
Conductor 24 AWG stranded annealed copper
Insulation PE
Outer Diameter 6.0 ± 0.2 mm
Flame Rating CM (Communications Multipurpose)
RJ45 Plug Polycarbonate housing, 50µ” gold-plated nickel contacts
Pin Configuration T568B (T568A available on request)
Impedance 93.80 ± 15 Ω
Spark Test 2kV in Air
DC Insulation 500 MΩ/100m min.
Standards Met ANSI/TIA-568-2.D, ISO/IEC 11801, EN 50173, UL CM/CSA CMG, ETL verified

Available Blue Patch Cord Lengths & Part Numbers:

Part Number Length Configuration Color
1201-04450 0.5m T568B Blue
1201-04178 1.0m T568B Blue
1201-04213 2.0m T568B Blue
1201-04180 3.0m T568B Blue
1201-04220 5.0m T568B Blue
1201-04395 10.0m T568B Blue

Applications:

  • Patch panel to patch panel connections

  • PC to information outlet connections

  • Information outlet to telecommunications closet connections

  • Equipment & DTE connections

  • Voice / ISDN / T1

  • 10/100/1000 Mbps Ethernet

  • 10 Gigabit Ethernet

  • 16 Mbps Token Ring, 100VG-AnyLAN

  • 155/622 Mbps & 1.2/2.4 Gbps ATM

  • 550 MHz broadband video

Standards Compliance:

  • ETL Verified

  • ANSI/TIA-568-2.D

  • ISO/IEC 11801

  • CENELEC EN 50173

  • UL CM / CSA CMG

Complete your cabling installation

Match cable category, shielding, connector type and installation requirements across the complete channel.

Explore Network Cable 305m Reels; Network Patch Panels; Network Patch Cords; Network Connecting Accessories.

Weight 0.3 kg
Length

0.5M, 10M, 1M, 2M, 3M, 5M
