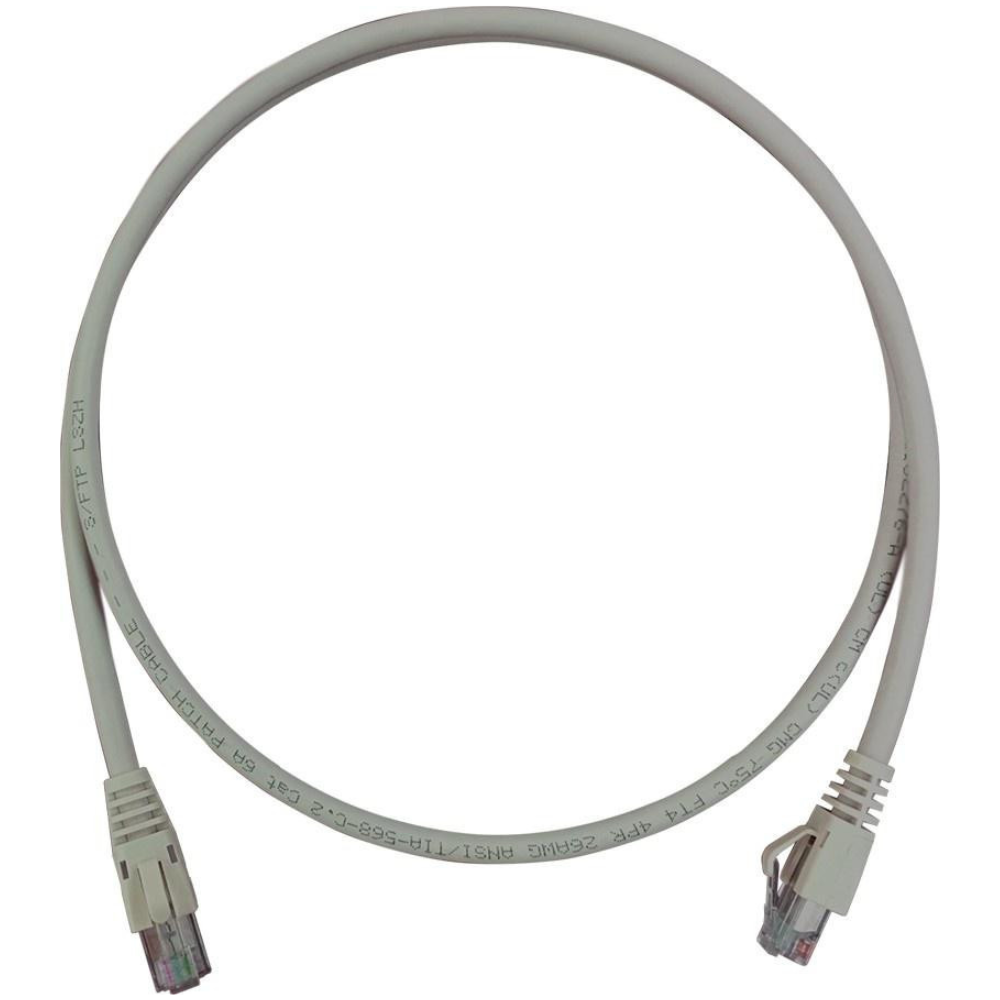

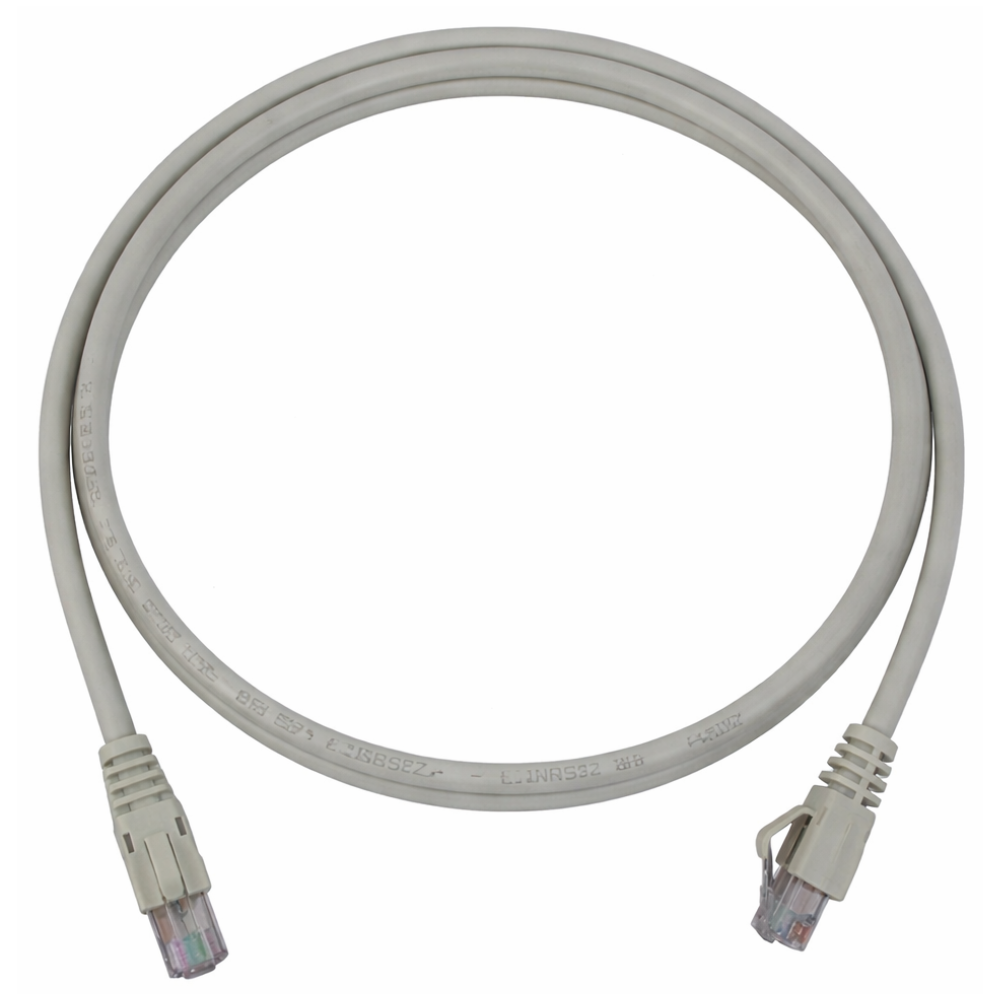

Dintek (Taiwan) Cat 6A S/FTP 26AWG Full Copper Shielded LSZH Grey Patch Cord

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods

Payment security

Encryption ensures increased transaction security. SSL technology protects data linked to personal and payment info.

payment methods
Dintek (Taiwan) Cat 6A S/FTP 26AWG Full Copper Shielded LSZH Grey Patch Cord 1M 2M 5M price in srilanka

Key features

Cat 6A

Cable category

6.0 ± 0.2 mm

Diameter

26 AWG

Conductor gauge

Gray

Jacket colour

Dintek (Taiwan) Cat 6A S/FTP 26AWG Full Copper Shielded LSZH Grey Patch Cord

  • Premium Shielding: S/FTP (Shielded/Foiled Twisted Pair) design with aluminum foil per pair and tinned copper braid overall for superior EMI/RFI protection.

  • High-Speed Ready: Fully tested to meet ANSI/TIA-568.2-D Cat.6A channel requirements, supporting 10 Gigabit Ethernet (10GBASE-T) and other high-speed applications.

  • Durable & Flexible: Molded boots prevent pin bending and cable kinking; 26AWG stranded copper wire ensures excellent flexibility.

  • Safety Compliant: LSZH (Low Smoke Zero Halogen) jacket material enhances safety in enclosed or public spaces.

Bulk Orders only

PLEASE SELECT YOUR LENGTH

Price range: රු 6,250.00 through රු 12,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Technical Specifications:

Category Specification
Cable Type S/FTP (Shielded/Foiled Twisted Pair)
Category 6A
Jacket Material LSZH (Low Smoke Zero Halogen)
Jacket Color Gray
Conductor 26 AWG stranded annealed copper
Insulation Foam-PE
Shielding Aluminum foil per pair + Tinned copper braid overall
Outer Diameter 6.0 ± 0.2 mm
RJ45 Plug Shielded RJ45, 50µ” gold-plated nickel contacts
Pin Configuration T568B (T568A available on request)
Impedance 150 Ω/100m at 20°C (Note: value in datasheet appears typographic; typical is ~100Ω)
Max DCR 14.8 Ω/100m at 20°C
DC Insulation 1500 MΩ/100m min.
Standards Met ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, EN 50173-1, EN 50288-10-1, UL Listed, RoHS

Available Gray Patch Cord Lengths & Part Numbers:

Part Number Length Configuration Color Qty per Carton
1201-06096 1.0m T568B Gray 70
1201-06097 2.0m T568B Gray 70
1201-06099 5.0m T568B Gray 70

Applications:

  • 10GBASE-T Ethernet

  • Gigabit Ethernet (1000BASE-T)

  • Fast Ethernet (100BASE-TX)

  • 10BASE-T Ethernet

  • ATM (155/622 Mbps, 1.2 Gbps)

  • Token Ring (4/16 Mbps)

  • 100VG-AnyLAN

  • Voice and VoIP systems

Standards Compliance:

  • UL Listed

  • ANSI/TIA-568.2-D Cat.6A

  • ISO/IEC 11801 Class EA

  • CENELEC EN 50173-1, EN 50288-10-1

  • RoHS Compliant

Complete your cabling installation

Match cable category, shielding, connector type and installation requirements across the complete channel.

Explore Network Cable 305m Reels; Network Patch Panels; Network Patch Cords; Network Connecting Accessories.

Weight 0.2 kg
Length

1M, 2M, 5M
