Technical Specifications

General Information

• Part Numbers & Descriptions:

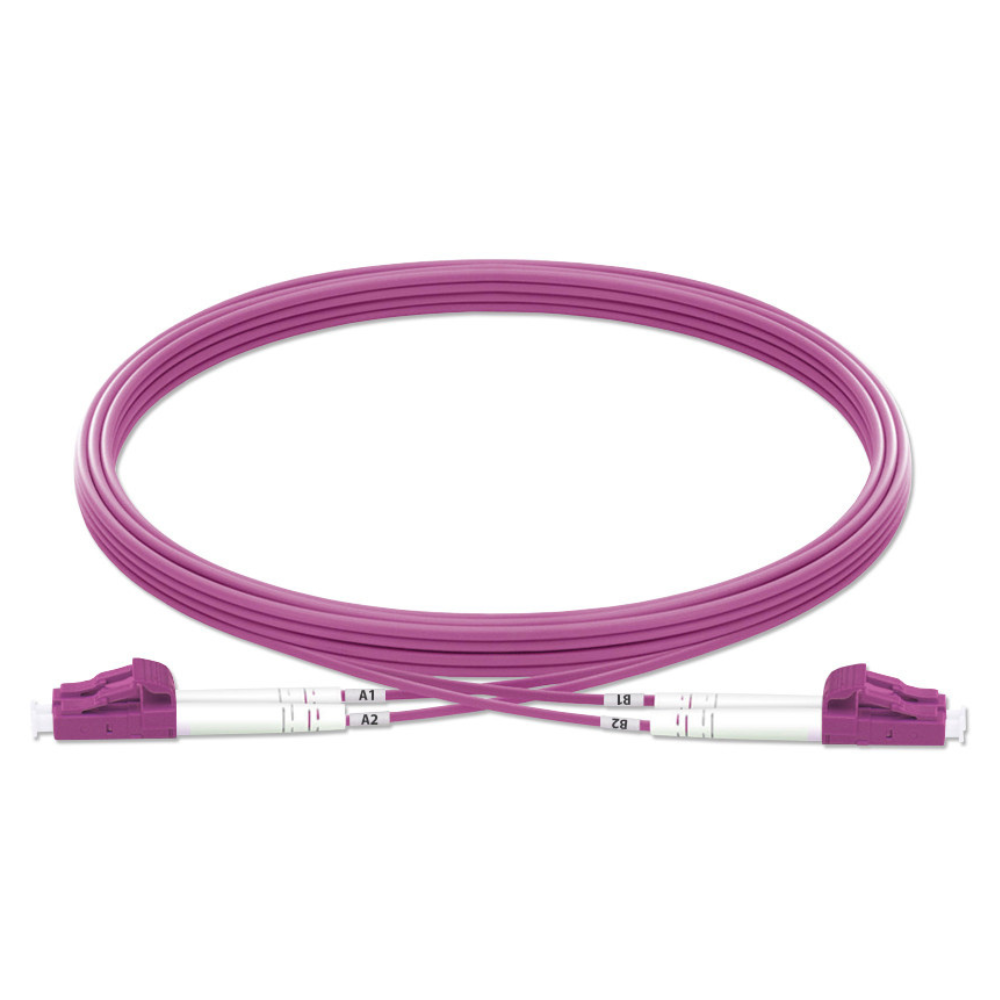

  • 2104-07411: Light-LINKS™ LC/LC Duplex OM4 Patch Cord – 1 Meter

  • 2104-07412: Light-LINKS™ LC/LC Duplex OM4 Patch Cord – 2 Meters

• Available Lengths: 1 Meter, 2 Meters

• Connector Type: LC-LC Duplex

• Polish Type: PC

• Fiber Type: OM4 Multimode

• Core/Cladding: 50/125 µm

• Jacket Color: Purple

• Jacket Size: 2.0 mm

• Jacket Type: LSZH (Low Smoke Zero Halogen)

Optical Performance

• Insertion Loss (Typical): ≤ 0.15 dB

• Insertion Loss (Maximum): ≤ 0.30 dB

• Return Loss: ≤ 35 dB

• 10G Network Support: Up to 550 meters @ 850nm

• 40G/100G Support: Optimized for next-generation high-speed data center applications

Mechanical & Environmental

• Operating Temperature: -40°C to +85°C

• Flammability Rating: IEC 60332 Part 3

• Durability: Engineered for repeated mating cycles

Standards & Compliance

• ISO/IEC 11801

• CENELEC EN 50173-1 / EN 50173-5

• TIA-568 C.0 / TIA-942

• TIA 604-5

• IEC 61754-7

• IEEE 802.3 (10/40/100GbE)

• ROHS-6 Compliant

• GR-326-CORE Compliant

• IEC 60332-3 (Fire Retardant)

• IEC 60754-2 (Corrosion Resistant)

Applications

• High-Density Data Center Patches

• 10/40/100 Gigabit Ethernet Networks

• Server and Storage Area Network (SAN) Connectivity

• Network Switch Interconnections

• High-Performance Computing Environments

• Cloud Infrastructure and Data Centers

• Enterprise Network Backbones
