Technical Specifications

General Information

• Part Number: 2104-15015

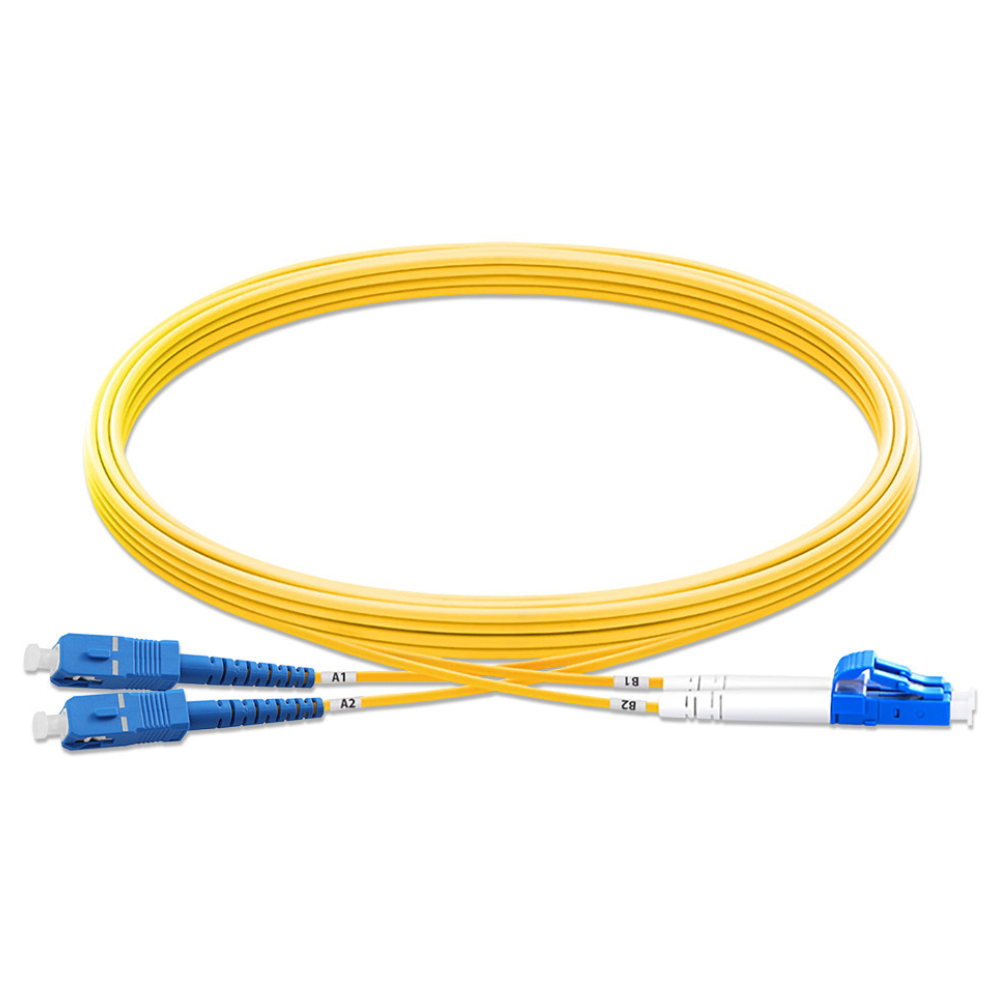

• Product Description:  SC/LC Duplex OS2 Patch Cord – UPC

• Length: 1.0 Meter

• Connector Type: SC to LC Duplex

• Polish Type: UPC

• Fiber Type: OS2 Single Mode

• Core/Cladding: 9/125 µm

• Jacket Color: Yellow

• Jacket Size: 2.0 mm

• Jacket Type: LSZH (Low Smoke Zero Halogen)

Optical Performance

• Insertion Loss (Typical): ≤ 0.15 dB

• Insertion Loss (Maximum): ≤ 0.30 dB

• Return Loss: ≤ 35 dB

• Bandwidth: Optimized for long-distance high-speed transmission

Mechanical & Environmental

• Operating Temperature: -40°C to +85°C

• Flammability Rating: IEC 60332 Part 3

• Durability: Short buffer style connector boots for ease of fiber management

Standards & Compliance

• ISO/IEC 11801

• CENELEC EN 50173-1 / EN 50173-5

• TIA-568 C.0 / TIA-942

• TIA 604-5

• IEC 61754-7

• IEEE 802.3 (10/40/100GbE)

• ROHS-6 Compliant

• GR-326-CORE Compliant

• IEC 60332-3 (Fire Retardant)

• IEC 60754-2 (Corrosion Resistant)

Applications

• High-Speed LAN, MAN, WAN Networks

• Data Center Cross-Connections

• Telecommunications Backbone

• FTTx / FTTH / PON Networks

• CATV / Video Distribution

• WDM / DWDM Systems

• Equipment Interfacing Between Different Form Factors
