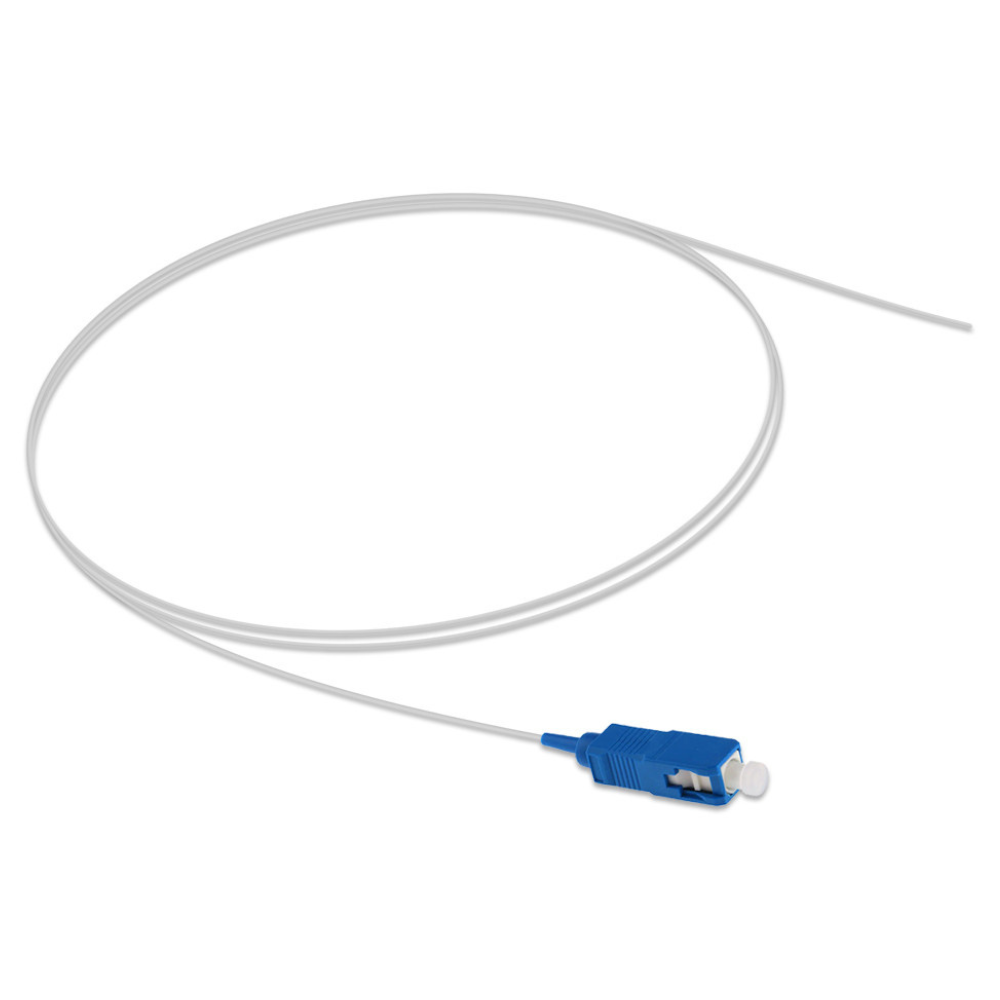

Dintek (Taiwan) SC Pigtail 1M 9/125 SM-2105-02002

Precision SC/UPC Connector: Features a high-quality, machine-polished SC connector with UPC finish that ensures low insertion loss and excellent return loss for optimal performance.
Factory Pre-Terminated & Tested: Guarantees reliability with 100% end-face inspection and full compliance with industry standards including GR-326-CORE.
High-Density Optimized: The short buffer style connector boot facilitates easy fiber management in space-constrained, high-density patch panels and enclosures.
Easy Installation & Splicing: The flexible, easy-to-strip 900um buffer simplifies both fusion and mechanical splicing processes, reducing installation time and effort.

Bulk Orders only

රු 2,250.00

Category	Specification
Manufacturer Part Number	2105-02002
Product Name	OS2 Singlemode SC Fiber Pigtail – UPC
Fiber Type	Singlemode OS2
Connector Type	SC
Polish Type	UPC
Length	1 Meter
Buffer Diameter	900 µm
Jacket/Connector Color	Blue
Insertion Loss	≤ 0.30 dB
Return Loss	≥ 50 dB
Operating Temperature	-40°C to +85°C
Key Standards	Telcordia GR-326-CORE, ISO/IEC 11801, TIA-568, TIA-942, IEEE 802.3
Applications	Fusion Splicing, Mechanical Splicing, Temporary Cable Termination

Weight	0.1 kg
