Specifications
| Brand headquarters / origin | Edimax / Taiwan |
|---|---|
| Model | EW-7317LDg |
| Product | 802.11b/g WLAN USB Adapter with Wi-Fi Detector |
| Standards | IEEE 802.11b/g |
| USB Port | USB 2.0 Type A |
| Frequency Band | 2.4000~2.4835GHz (Industrial Scientific Medical Band) |
| Modulation | OFDM with BPSK, QPSK, 16QAM, 64QAM (11g) BPSK, QPSK, CCK (11b) |
| Data Rate | 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback |
| Security | 64/128/256-bit WEP Data Encryption, WPA/WPA2 (TKIP with IEEE 802.1x) and AES |
| Antenna | Internal Antenna |
| Dimension | 14(H) x 28.5(W) x 91(D) mm |
| Transmit Power | 16 dBm (Typical) |
| Temperature | 0~60oC |
| Humidity | 10~85% (Non-Condensing) |
| Certification | FCC, CE |
| Detector display | LCD shows SSID, signal strength, channel and encryption status |
| Detector battery | Rechargeable lithium-polymer |
Key Features
- Find nearby compatible wireless networks with the integrated detector.
- Read network information on the built-in LCD.
- Use the same device as a USB wireless adapter on a supported computer.
- Carry the compact detector without a separate antenna.
- Recharge the built-in battery for detector operation.
Product Information

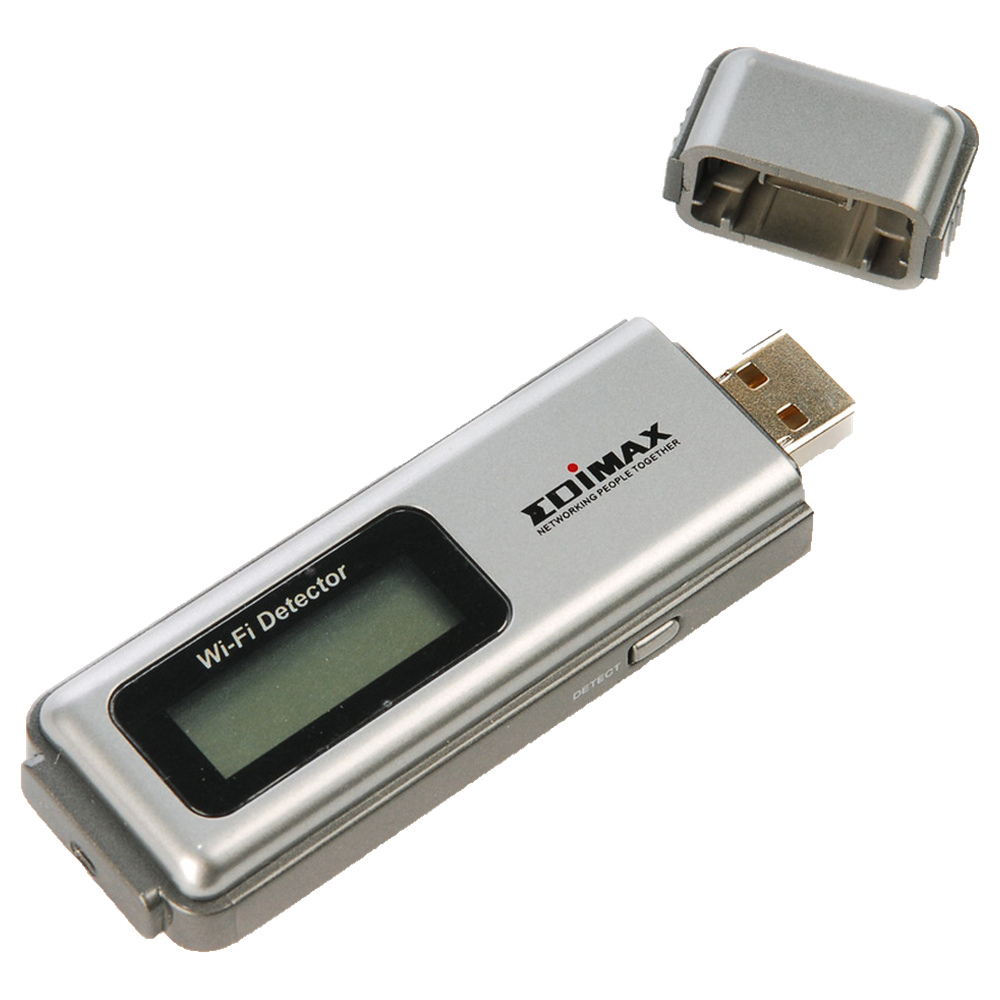

EW-7317LDg combines a Wi-Fi detector with a USB wireless adapter. The detector displays information such as network name, channel, signal level and security status, helping a user locate a suitable legacy 2.4GHz network before connecting a computer. A rechargeable lithium-polymer battery supports the detector function.
When plugged into a compatible computer, it provides IEEE 802.11b/g connectivity through USB 2.0 Type-A. Its 54Mbps figure is a maximum radio link rate, not guaranteed Internet speed. Confirm the availability of a driver for the intended operating system and verify that the network accepts the device’s documented security modes.
