Specifications
| Brand headquarters / origin | Edimax / Taiwan |
|---|---|
| Model | AR-7186WnA |
| Hardware Interface | 1 x RJ-11 WAN-port ; 4 x RJ-45 Fast Ethernet LAN ports 1 x Reset button for factory default settings ; 1 x WPS button ; 1 x WLAN button ; 1 x 5dBi antenna ; Power on/off button ; LED indicators: power, ADSL, LAN 1–4, WLAN, WPS |
| Management | Web configuration, TR-069, UPnP, SNTP and firmware upgrade support |
| Output Power | 11n: 14±1.5dBm ; 11g: 15±1.5dBm ; 11b: 16±1.5dBm |
| Adsl Features | ; ANSI T1.413i2 ; ITU G.992.1 (G.dmt), ITU G.992.2 (G.lite) ; ITU G.992.3 ADSL2 (G.dmt.bis), ITU G.992.4 (G.lite.bis) ; ITU G.992.5 (G.dmt.bisplus), ITU G.994.1 (G.hs) ; ITU G.995.1, ITU G.996.1, ITU G.997.1 ; Power saving mode, L3 to L0 initialization ; Supports multiple PVCs ; Supports traffic shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt ; Supports OAM F4/F5 loop-back, AIS, and RDI OAM cells ; UNI 3.1/4.0 permanent virtual circuits |
| Wireless Features | Compatible with IEEE 802.11b,IEEE 802.11g and IEEE 802.11n ; Supports auto channeling ; 1T1R mode with 150Mbps PHY rate for both transmitting and receiving ; Legacy and high throughput modes ; 20MHz/40MHz Bandwidth ; Supports 64/128-bit WEP, 802.1x, WPA and WPA2 wireless security ; Multiple BSSID support ; Wireless frequency range: 2400–2483 MHz ISM band ; 802.1x authentication |
| Routing Features | Routing (TCP/IP/UDP/ARP/ICMP) ; 802.1D MAC Bridge ; RIP v1 (RFC1058), RIP v2 (RFC1723) ; IGMP Snooping (V1/V2/V3) ; IGMP Proxy (V1/V2) ; VLSM (RFC1878) ; RFC 1877 PPP IPCP Extensions for Name Server Address ; RFC 1877 PPP IPCP Extensions for Name Server Addresses (limited to DNS addresses unless the device supports NetBIOS) ; RFC 0791 IP Fragmentation ; IETF RFC 0919, IETF RFC 0922, IETF RFC 2644 IP Broadcast |
| Security | Management access control for LAN/WAN sides ; Prevent port scanning, denial-of-service (DOS) and LAND attacks ; Stateful packet inspection (SPI) ; IP spoofing, IP with zero length ; IP/ MAC filtering, application filtering, URL filter |
| Frequency & Modulation | 2400–2484 MHz ; 802.11b: CCK, DQPSK, DBPSK ; 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS ; 802.11n: 64QAM, 16QAM, QPSK, BPSK |
| Humidity & Temperature | Operating: 0 to 40°C ; Storage: -40 to 70°C ; Operating: 10 to 90% RH (Non-condensing) ; Storage: 5 to 95% RH (Non-condensing) |
| Memory | 2 MB NOR Flash ; 8 MB SDRAM |
| Dimension & Power | 12V DC, 0.5A |
| Certifications | CE |
Key Features
- Combine an ADSL modem, router and wired switch in one unit.
- Connect four local devices through Fast Ethernet LAN ports.
- Provide 2.4GHz wireless access to compatible clients.
- Separate wireless network names using multiple SSIDs.
- Configure the connection through the supported web setup interface.
Product Information

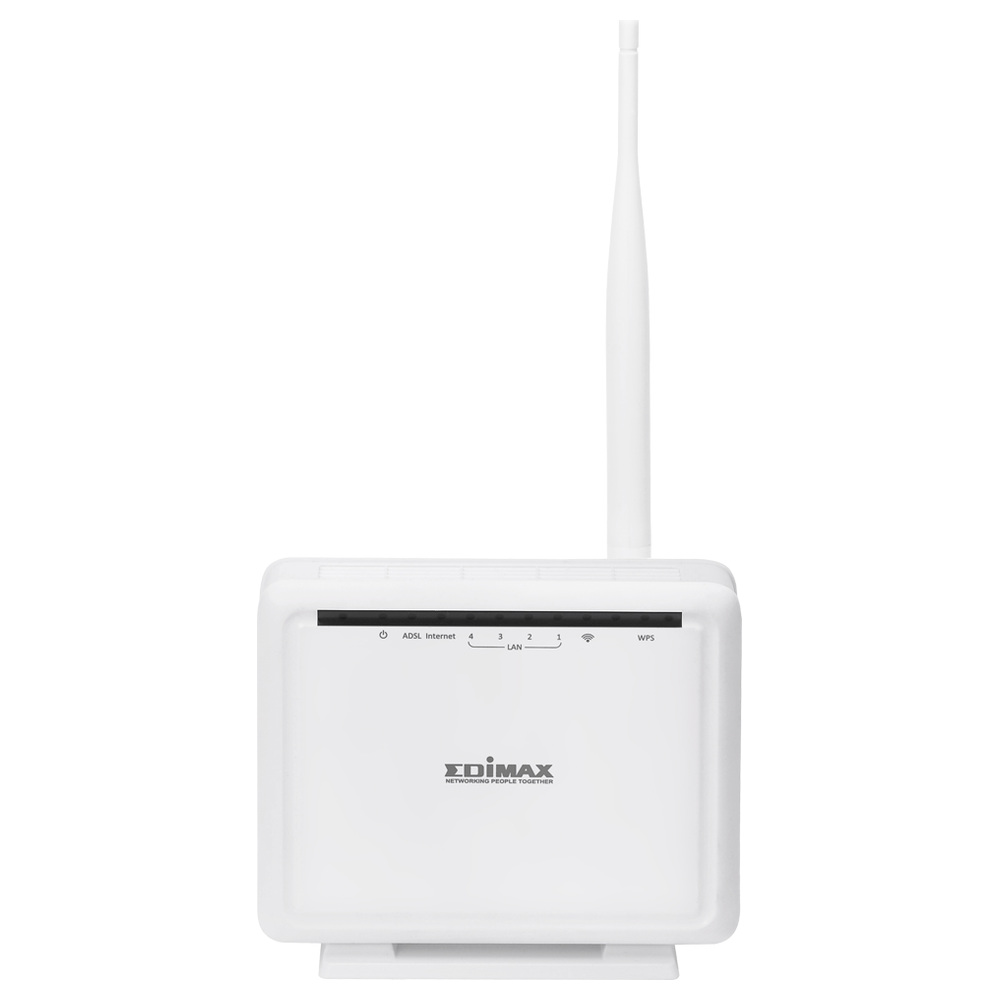

AR-7186WnA combines an ADSL2/ADSL2+ modem, router and four-port Fast Ethernet switch with an N150 wireless radio. It is intended for a compatible DSL service rather than a fiber optical connection. The single external 5dBi antenna support the documented radio configuration; actual throughput depends on the DSL line, wireless conditions and client equipment.
The supplied model suffix is retained. Because the official family table combines A and B annex information, the exact telephone-line annex must be checked against the unit and provider before installation. The device requires 12V DC at 0.5A. The manufacturer documents web configuration and TR-069 management; enabling provider management depends on the network’s configuration.
