Specifications
| Brand headquarters / origin | Edimax / Taiwan |
|---|---|
| Model | EW-7708Pn |
| Hardware Interface | 32-bit Cardbus 3 x 2dBi Printed Antennas with Two TX and Three RX |
| Standard | IEEE 802.11b/802.11g/802.11n |
| Frequency Band | 2.4000~2.4835GHz Industrial Scientific Medical Band) |
| Data Rate | 11b: 1/2/5.5/11Mbps 11g:6/ 9/ 12/ 24/ 36/ 48/ 54Mbps 11n (20MHz): MCS0-15, 32 with Half Guard Interval Support (up to 144Mbps) 11n (40MHz): MCS0-15, 32 with Half Guard Interval Support (up to 300Mbps) |
| Installation | Multi-language EZmax Setup Wizard |
| Led | Link/Activity |
| Security | WEP 64/128, WPA, WPA2 Support Cisco CCX V1.0, V2.0 & V3.0 |
| Dimension | 115 (L) x 54(W) x 5(H) mm |
| Humidity & Temperature | Maximum 95% RH, non-condensing; operating temperature omitted because Celsius and Fahrenheit values conflict |
| System Requirements | Windows 2000/XP/XP64/Vista |
| Transmit Power | 16dBm ± 2dBm |
| Certifications | CE, FCC |
Key Features
- Add wireless connectivity to a compatible CardBus notebook.
- Join supported legacy 2.4GHz wireless networks.
- Use the documented security modes supported by the network.
- Keep the adapter in the notebook’s compatible expansion slot.
Product Information

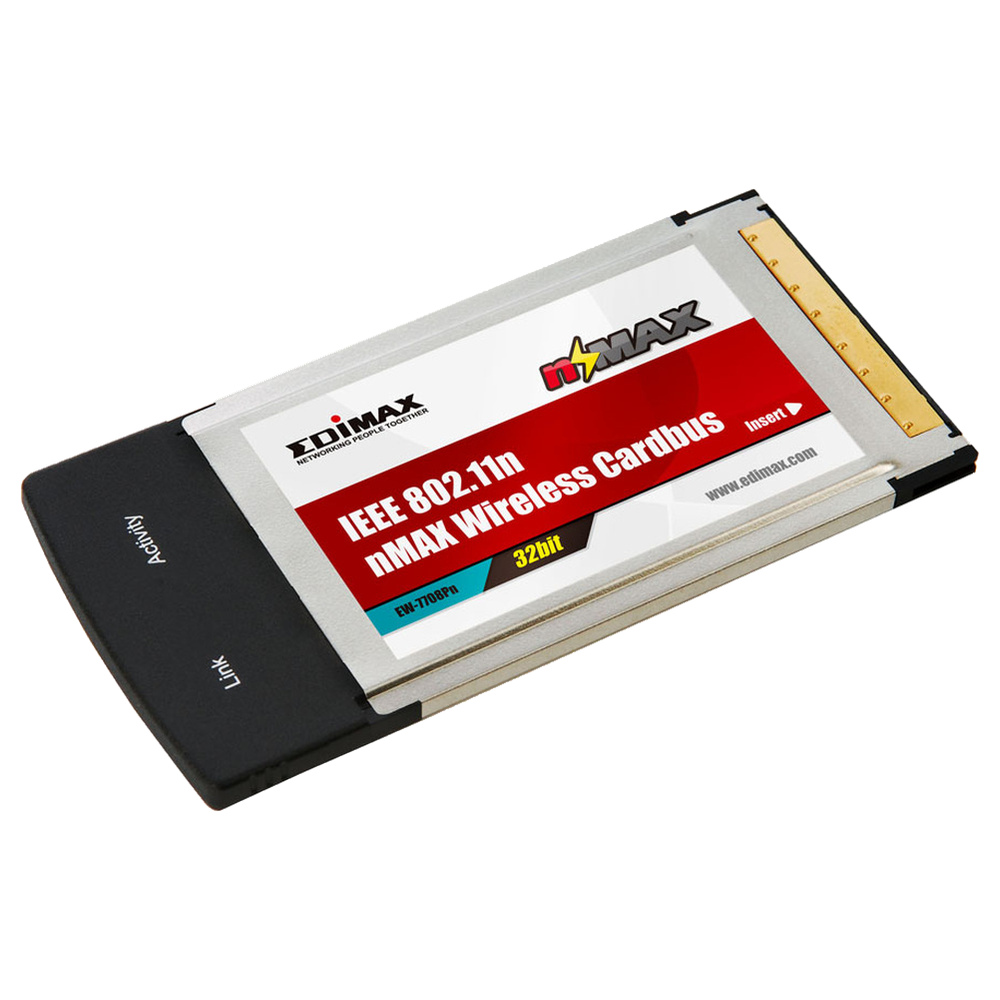

EW-7708Pn is intended for notebooks with a 32-bit CardBus expansion slot. It supports a maximum advertised wireless link rate of 300Mbps with compatible equipment and settings. Actual data transfer is lower than the negotiated radio rate.
CardBus is a legacy notebook interface and is not interchangeable with an ExpressCard or USB slot. Check the computer’s slot type and availability of a matching driver before installation. The historical operating-system list does not confirm support for current Windows or other modern platforms. Network security modes must also match the access point.
