Specifications
| Brand headquarters / origin | Edimax / Taiwan |
|---|---|
| Model | EW-7722In |
| Hardware Interface | 32-bits PCI WPS button 3dBi detachable dipole antennas |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Band | 2.4000~2.4835GHz (Industrial Scientific Medical Band) |
| Data Rate | 11b: 1/2/5.5/11Mbps 11g:6/9/12/24/36/48/54Mbps 11n (20MHz): MCS0-15 (up to 144Mbps) 11n (40MHz): MCS0-15 (up to 300Mbps) |
| Installation | Multi-language EZmax Setup Wizard |
| Led | Link, Tx/Rx |
| Wireless Security | WEP 64/128, WPA, WPA2 Cisco CCX Support WPS configuratio |
| Dimensions | 22(H) x 128(W) x 121(D) mm(without antenna) |
| Humidity & Temperature | Max. 95% (Non Condensing) Operating : 32~131°F (0~55°C) Storage : -4~149°F (-20~65°C) |
| System Requirements | Windows 2000/XP/Vista/7/8, Linux and Mac OS |
| Output Power | 11n: 15dBm±1.5dBm, 11g: 15dBm±1.5dBm, 11b: 17dBm±1.5dBm |
| Certifications | CE, FCC |
Key Features
- Add 2.4GHz Wi-Fi to a desktop with a compatible PCI slot.
- Connect to supported 802.11b/g/n wireless networks.
- Use the detachable 3dBi antennas to suit the desktop installation.
- Configure compatible wireless security and WPS settings.
- Check connection and activity through the card indicators.
Product Information

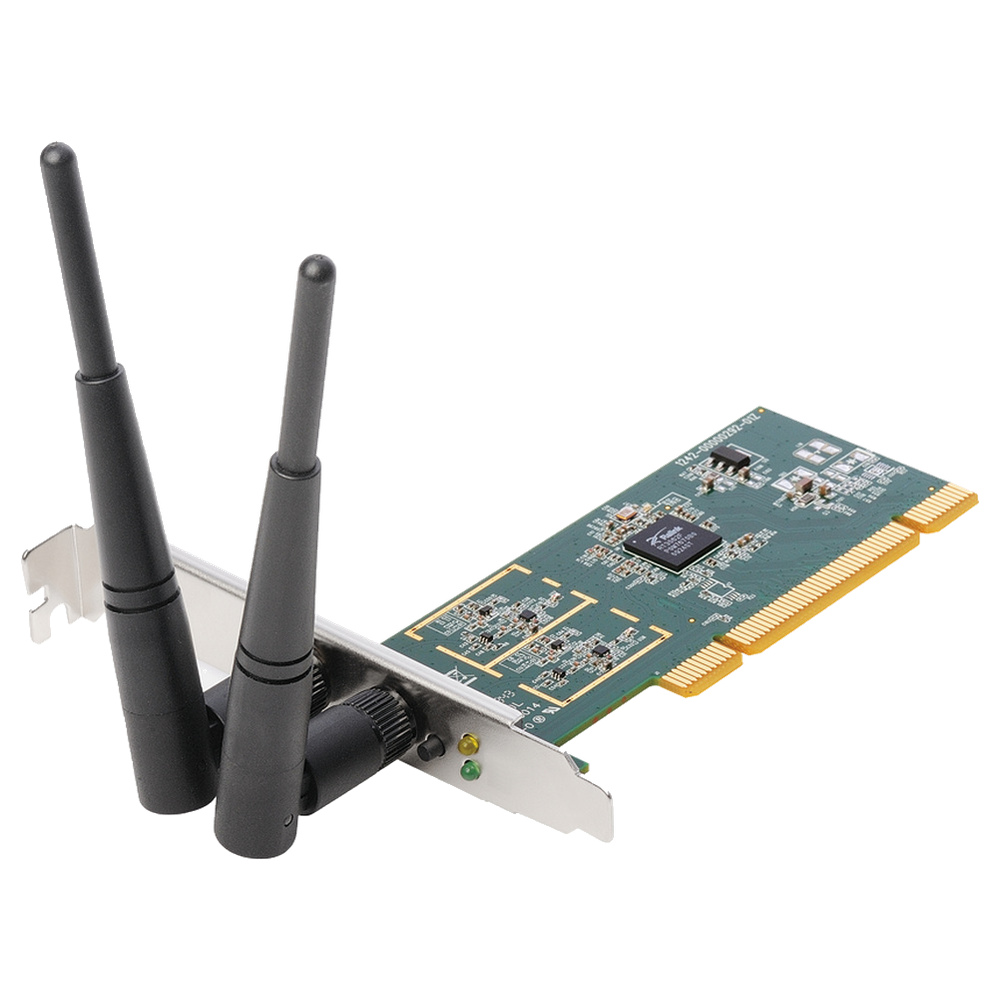

EW-7722In is a legacy wireless network adapter for desktop computers with a conventional 32-bit PCI slot. Its N300 radio supports maximum negotiated link rates of 300Mbps with compatible 802.11n equipment and channel settings. Real application throughput is lower and depends on signal conditions, interference and the access point.
This card requires a PCI slot rather than PCI Express. Install a driver that matches both the card revision and operating system; the listed Windows, Linux and Mac support refers to the manufacturer’s historical drivers and does not establish compatibility with current releases. The official hardware configuration uses detachable 3dBi dipole antennas. A compatible wireless network is required; no router or Internet service is included.
