Specifications
| Model | POR-0103 |
|---|---|
| Ethernet ports | 3 × 10/100 Mbps RJ45: one PoE input and two PoE outputs |
| PoE support | IEEE 802.3af/at |
| Additional reach | Up to 100 m |
| Cascadable | No |
| Power | Powered from upstream PoE; no external power supply required |
| Indicators | Power, PoE In, PoE Out |
| Mounting | Wall mount |
| Dimensions | 57 × 21 × 91 mm |
| Product weight | 0.20 kg |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 5% to 95% RH |
| Package contents | POR-0103 repeater and quick installation guide |
Key Features
- Extend a compatible PoE connection by up to another 100 m.
- Connect two downstream PoE devices from one upstream powered link.
- Keep setup simple with plug-and-play operation and no local power adapter.
- Use automatic detection to protect incompatible downstream equipment.
- Mount the compact chassis on a wall where network reach is needed.
Product Information

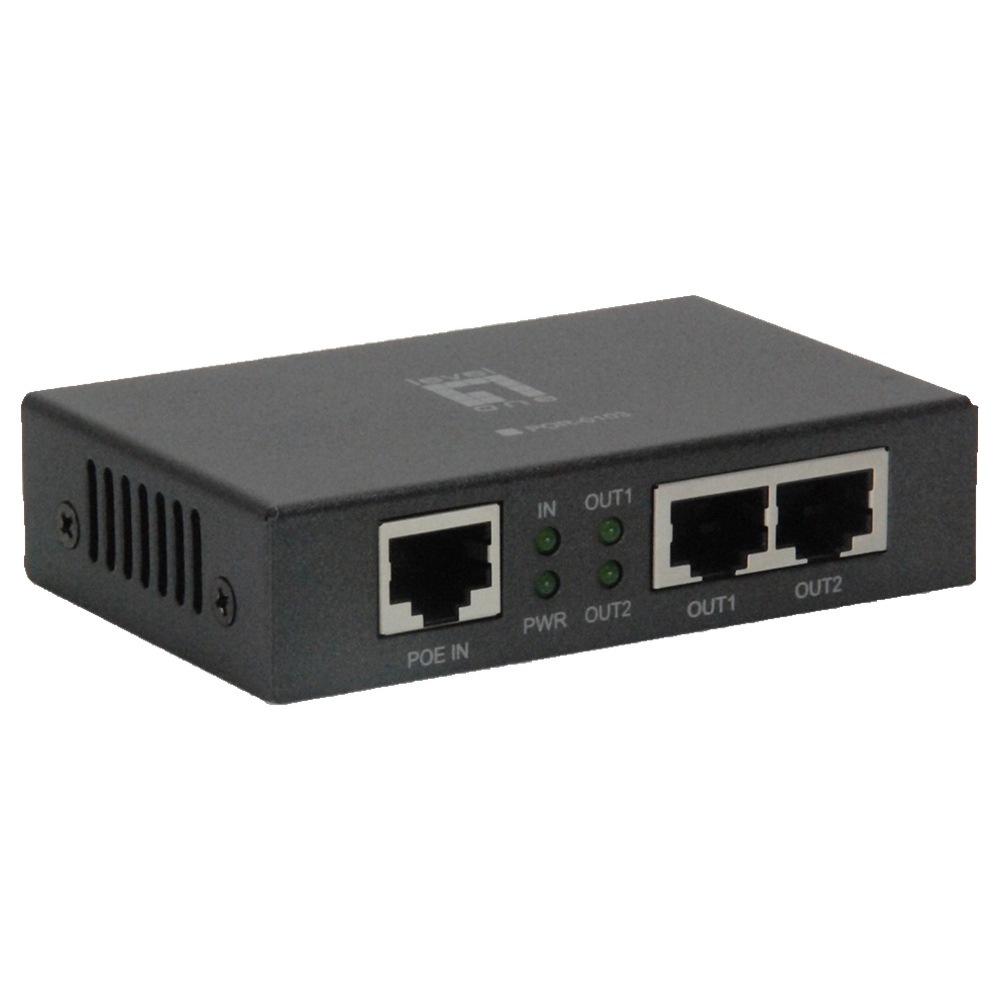

The Level One POR-0103 accepts an upstream IEEE 802.3af/at PoE link and provides two 10/100 Mbps powered RJ45 outputs for compatible access points, cameras or other PoE devices. It draws operating power from the incoming link; check the upstream power budget against both downstream devices and the repeater’s own needs before installation. The manufacturer specifies extension by up to 100 m and states that this model is not cascadable. The repeater and quick installation guide are supplied; an external power adapter is not required.
