Specifications
| Network interfaces | RJ45 Ethernet to RJ11 VDSL2 |
|---|---|
| DSL standard | ITU-T G.993.2, Annex A (PSTN), profiles 17a and 30a |
| Maximum DSL rate | 100 Mbps downstream / 100 Mbps upstream |
| Line reach | Up to 2 km over a copper pair |
| Configuration | Master/slave and line settings via DIP switches |
| PoE | Not supported |
| Management | Unmanaged |
| Power input | 12 V DC, 1 A; adapter included |
| Dimensions | 90 × 120 × 28 mm |
| Product weight | 0.33 kg |
| Operating environment | 0–40 °C; 5–95% RH |
| Included | Converter, power adapter, quick installation guide |
Key Features
- Reuse an existing telephone copper pair for an Ethernet extension.
- Reach up to 2 km where a direct Ethernet cable run is impractical.
- Select master or slave operation to suit the two ends of the VDSL2 link.
- Support Annex A PSTN environments and profiles 17a/30a.
- Power the compact converter with its included adapter.
Product Information

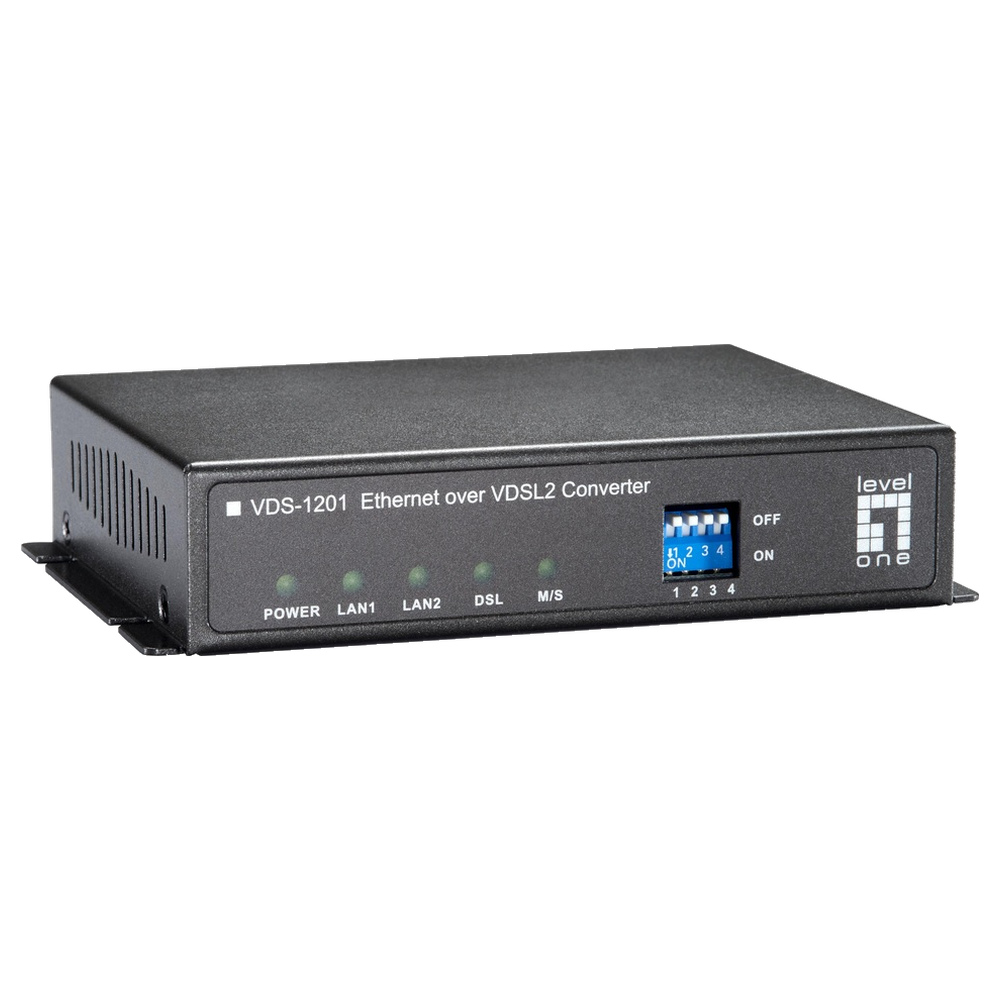

VDS-1201 carries an Ethernet connection over an existing twisted-pair telephone line using VDSL2 Annex A. Deploy compatible equipment at both ends and configure master/slave roles as needed; the attainable throughput and reach depend on cable quality and distance. It requires its included 12 V power adapter and does not supply PoE. It suits building-to-building or floor-to-floor links using existing copper infrastructure.
